Sound Study Plaits Multi-Algorithm Macro Oscillator Module

Click for better price or call
+44 20 7424 1960
(quote 1029221)
SOUND STUDY - Sound Study Plaits Multi-Algorithm Macro Oscillator Module
Product image
Delivery
bestselling studio preorders
Features
Specs
Returns & refunds
Finance
  • 8 Pitched Synthesis Models
  • Two virtual analogue models for continuously variable waveforms
  • Triangle-core oscillator with variable slope routed through a waveshaper and wavefolder
  • FM with variable feedback path
  • 2 separate formants and a variable shape window modulator for VOSIM style filter sweeps
  • Additive oscillator (24-harmonic)
  • Wavetable oscillator (8x8 waves arranged across 4 banks)
  • Chord generator (wavetables or string/organ emulation)
  • Speech algorithms (formant, SAM, LPC), with banks of phonemes
  • 8 Noise and Percussion Synthesis Models
  • Granular sawtooth or sine oscillator (each with variable gain density and frequency randomization)
  • Clocked noise routed through a resonant filter
  • 8-layer dust/particle noise routed through either resonant or all-pass filters
  • Karplus-Strong ("Red Mode" in Rings) with either white noise or dust excitation
  • Modal resonator ("Green Mode" in Rings) with mallet or dust excitation
  • Analog kick, snare & hi-hat emulators
  • Primary frequency controls (8 octave range)
  • Harmonics timbre and morph timbre dimensions
  • Attenuverters for frequency, morph, and timbre CV inputs
Module TypeOscillator Module

If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.

Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth

To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

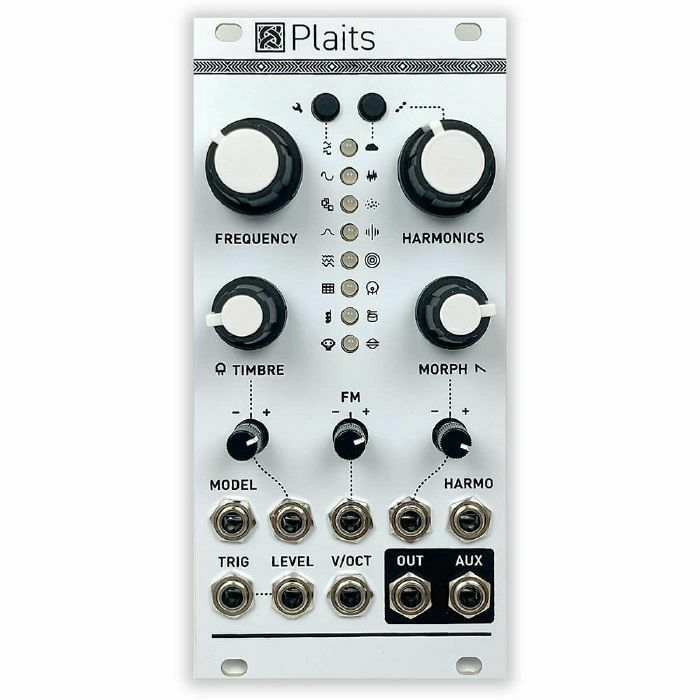

Sound Study Plaits Multi-Algorithm Macro Oscillator Module
This is a fully built module, with the latest firmware pre-installed. Comes with Rogan knobs. You can swap our panel for another manufacturer's panel!

Mutable Instruments Plaits is a multi-algorithm macro-oscillator that provides everything from FM to speech synthesis, analogue percussion emulation, wavetables, modal synthesis, granular synthesis...whoa, this module does basically everything. Expanding on Braids's strong points and eliminating its pitfalls, Emilie Gillet's Plaits is a perfect bonding of tremendous flexibility and an intuitive user interface.

Built from the ground up and sharing no code or hardware with Braids, Plaits borrows concepts from its predecessor while operating at considerably higher audio resolution and with a refined means of user interaction. For one, it dispenses with that pesky screen to offer even more tactility and immediacy. Additionally, Plaits features a dedicated CV input for the model parameter, easy access to the module's internal envelopes for modulation of vital parameters, and an integrated lowpass gate with definable filtering intensity and virtual vactrol response time.

Offering a broad survey of synthesis techniques, Plaits promises a vast sonic palette that could find a home in any modular synthesizer setup. Ideal for beginners and modular synth gurus alike, Plaits is an obvious choice for anyone who wants a lot of functionality in a small space and with a modest price tag.

Specifications

Width: 12HP
Depth: 25mm
Current draw
+12V: 50mA
-12V: 5mA
Read moreRead less
Specifications
Module TypeOscillator Module
