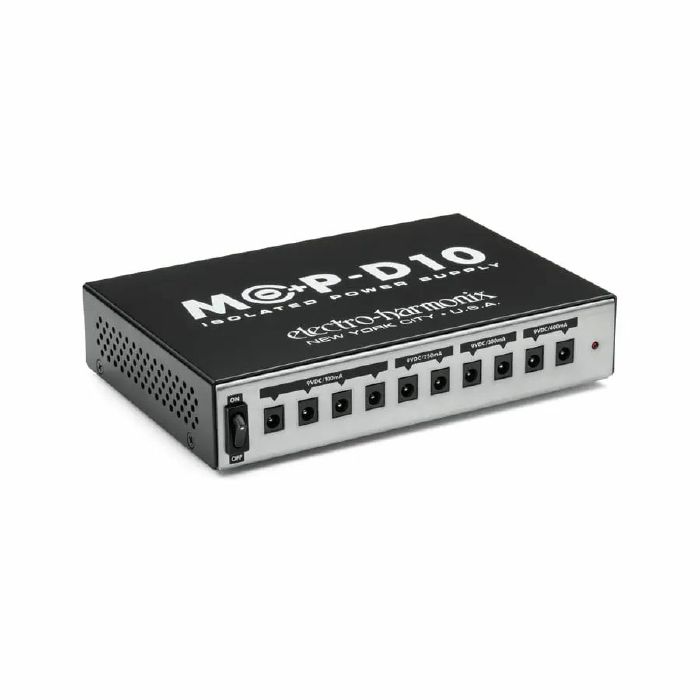

The MOP-D10 is a multi-output power source that was developed by EHX engineers to provide a player with noise-free pedal operation. It features ten isolated 9VDC outputs that handle the most popular power requirements: 4x100mA, 2x250mA, 2x300mA and 2x400mA.

From its premium analogue power path featuring low-noise linear regulators to its custom-wound toroidal transformer, the MOP-D10 is designed to let a pedal user achieve a sonically pure signal path. Unlike many other multi-output power supplies which rely on switching power conversion, the MOP-D10's transformer-based power conversion is significantly less susceptible to spurious noises leaking into the audio path. An AC Voltage Selector Switch also ensures the MOP-D10 can be used with a range of voltages commonly found around the world.

Each of the MOP-D10's outputs is center-negative and all output power jacks are isolated from each other. The dimensions of each output connector are 5.5mm x 2.1mm. The unit is supplied with a 6' detachable power cord and ten 24" long DC power cables equipped with one straight and one right-angle end. It also includes hardware for pedalboard mounting.

Professional pedalboard power solution with ten isolated 9VDC outputs: 4x100mA, 2x250mA, 2x300mA and 2x400mA
Provides a premium analogue power path with low-noise linear regulators
Custom-wound toroidal transformer delivers exceptional isolation and clean power
Relies on transformer-based power conversion which is superior to switching power conversion
AC Voltage Selector Switch allows the MOP-D10 to be used with a range of voltages commonly found around the world
All output power jacks are isolated from each other for noise-free operation
Comes with ten 24" long DC power cables equipped with one straight and one right-angle end
Includes hardware for pedalboard mounting

Specifications

Dimensions (in): 7.87
Year Released: 2021
