Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Get Amped

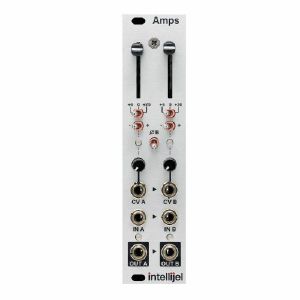

Amps comprises two precision linear VCAs that have been carefully designed to offer a wealth of flexibility and additional functionality. The front panel controls and signal normals allow these two VCAs to also be configured to function as: line level boosters, crossfaders, ring modulators, mixers, and much more. They can also be chained together by way of an included cable to form larger, more complex systems.

Amps features cascaded CV inputs and cascaded mix outputs allowing it to be used in a number of versatile configurations. A boost switch enables you to amplify each VCA's input by either +6dB or +20dB i ideal for boosting low amplitude signals or pleasingly overdriving audio. The addition of a phase inversion switch for the second channel allows Amps to function as a ring modulator. The CV normalization, which can also be inverted and offset, also allows for VC-Crossfader functionality.

Features

Manual LEVEL slider per VCA i convenient when using the module as a mixer, or for biasing the signal for CV (such as when modulating the VCA with a bipolar LFO).
Dedicated CV attenuators with dual color LEDs for monitoring bipolar CV signals.
Linear response curve.
Input and CV normalling of VCA A to VCA B to allow a single source to feed and/or control both VCAs.
Output normalling of VCA A to VCA B to allow both VCAs to feed a single output.
Each VCA has a boost switch that can increase the output level by either +6dB or +20dB.
Phase Invert switch on VCA B allows for ring modulation capabilities.
CV Invert switch on both VCAs allows for crossfading one signal into another.
4-pin link connectors on the rear panel allow for multiple AMPS modules to be chained together to create a 4-channel mixer; 6-channel mixer; etc.

Dimensions
6 HP
36 mm deep

Current Draw
40 mA +12V
46 mA -12V

Notes: Dual-channel wavefolding with a lot of creative power. Buchla- and Serge-style circuits combine with a voltage-controlled crossfader, allowing you to shape and sculpt sounds in intriguing ways.

Supplier's Notes:

Bifold is a unique dual channel wavefolder with numerous feedback and routing options along with CV control. Mix, blend and crossfade the two different folder flavours into a rich stew of unique waveforms and harmonic movement. It is the first wavefolder to offer simultaneous, independently controllable serial and parallel folder circuits.

Wavefolding is one of the most powerful ways to produce complex timbres out of a simple sound source or waveform. When done well, the results can be warm, textured, organic and full of musical character. Intellijel studied some of the most revered wavefolding circuits and looked at ways to integrate the positive qualities of these into a design that was full of sweet spots and allowed for a huge amount of experimentation and modulation.

Bifold combines two unique wavefolders with a crossfader; One channel (the P channel) has a sonic characteristic inspired by the Buchla-style Parallel "deadband" folding circuit, while the other channel (the S channel) is more characteristic of a Serge-type Serial folding circuit. There are distinct differences to how they react to specific waveforms, modulation and even their overall frequency response. By linking both folders together with a voltage controlled crossfader we further expand the ability to blend these two different folders together to create new waveforms. But this just scratches the surface of possibilities. Ring modulation, blending, crossfading, complex noise generation, feedback modulation, cascaded folding and so much more are all possible thanks to the strategically placed routing switches, jack normals and attenuators and other control options. This is a module that invites much exploration and discovery and pairs well with almost any kind of modulation and sound source.

Width: 8HP
Depth: 38mm
Power: 94mA @ +12V, 94mA @ -12V

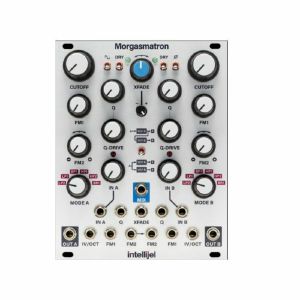

Notes: This is the third generation of Intellijel's much loved Korgasmatron filter designed in collaboration with David G. Dixon. The Morgasmatron features two completely independent six-mode filters (labelled "A" and "B") - each with its own mode-select knob, input, output, cutoff, resonance, Q-drive and gain control. Each filter has a pair of CV inputs (one with a built-in attenuator and the other with a built-in attenuverter) for modulating cut-off, and another CV input for modulating resonance. Both filters self-oscillate at maximum Q, and produce pitched sine waves that track the two separate 1V/OCT inputs.

You can use the two filters independently of one another, or you can use them together (in either a series or parallel connection) and smoothly crossfade between them using either the XFADE knob or the XFADE CV input and built-in attenuverter. You can flip the DRY switches to instantly bypass either or both filters; invert the phase of Filter B; or overdrive Filter A by switching on the new Overdrive circuit. A MIX output provides (as you might suspect) a mixed output of the two filters.

Notes: ***B-STOCK: Box opened, product in perfect working order***


This is the third generation of Intellijel's much loved Korgasmatron filter designed in collaboration with David G. Dixon. The Morgasmatron features two completely independent six-mode filters (labelled "A" and "B") - each with its own mode-select knob, input, output, cutoff, resonance, Q-drive and gain control. Each filter has a pair of CV inputs (one with a built-in attenuator and the other with a built-in attenuverter) for modulating cut-off, and another CV input for modulating resonance. Both filters self-oscillate at maximum Q, and produce pitched sine waves that track the two separate 1V/OCT inputs.

You can use the two filters independently of one another, or you can use them together (in either a series or parallel connection) and smoothly crossfade between them using either the XFADE knob or the XFADE CV input and built-in attenuverter. You can flip the DRY switches to instantly bypass either or both filters; invert the phase of Filter B; or overdrive Filter A by switching on the new Overdrive circuit. A MIX output provides (as you might suspect) a mixed output of the two filters.
