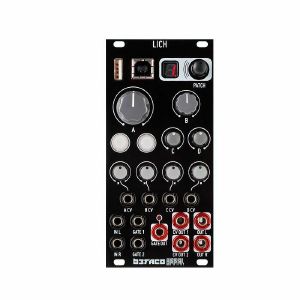

Notes: Lich is a programmable multi-function module based in Rebel Technology OWL platform. This is a Befaco Rebel collaboration that brings back Owl’s platform with this new hardware iteration. It has stereo in and out, four pot controls summed to cv inputs (like the classic Owl module) And as addition, CV and Gate outputs, patch selection with display and USB MIDI host and device connections.

FEATURES
Stereo Audio IN and OUT at 48k 24 bits.
4 CV controls (Pot + Attenuated CV in)
2 CV outputs.
2 Gate intputs + buttons.
1 Gate Output.
Patch selection and visialization via display.
USB host and Device connections

SPECS
Current needs: +12V: 130mA, -12V: 30mA
Width: 12 HP
Depth: 26 mm (including power connector)
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Pack of high Quality patch cables. Not too stiff, not too loose!

One colour for each size make Befaco patch cables just perfect to keep them organized!

This pack contains 3 high quality blue patch cables.

Notes: Pack of high Quality patch cables. Not too stiff, not too loose!

One colour for each size make Befaco patch cables just perfect to keep them organized!

This pack contains 6 high quality yellow patch cables.

Notes: 300cm long, 3.5mm pink Eurorack patch cables. Colour and length correspond to Doepfer standard.

Notes: Each of the two sections of the module is capable of performing the analog multiplication of two signals (A and B) and add an offset (C). It can also act as a dual voltage controlled attenuverter, dual ring modulator, dual VCA or four channel mixer (see block diagram below).

The B inputs are routed to an attenuverter that multiplies the signal between -2 to 2, while the offset inputs (C) route through a unity gain attenuverter (multiplies the signal between -1 and 1).

The output of first section is routed to the output of the second (when the first's output is unused), so the second output can act as master to achieve (A1*B1+C1) + (A2*B2+C2) or (A1 + C1) + (A2 + C2) - a 4 channel mixer.

The through-zero (four-quadrant) multipliers in the A*B+C allow for true Ring Modulation. To achieve this, simply connect two waveforms to the A and B inputs.

Notes: Quad Attenuator/Inverter, Splitter, and Offset Generator

Scale your audio or CV sources and route them to various destinations with this versatile utility. It consists of four identical unity gain amplifiers. Each amplifier can multiply an incoming signal by values ranging from 0 to 1 (for attenuation) or from 0 to -1 (for inverting attenuation). The input of each channel is normalled to the input of the next channel, allowing for easy signal routing from one input to the subsequent ones.

The first channel is normalled to 10V, enabling the module to function as an offset generator when no input is connected.

Features

Inversion switch per channel.
Precise zero at the left side of the pots.
Four level LEDs indicate output level and polarity.
Cascaded input topology

Specs

Current needs: +12V: 60mA, -12: 50mA, 5v:0
Width: 4 HP
Depth: Assembled version 25 mm
Depth: DIY version 35 mm
Designed, kits prepared and modules assembled in Barcelona.

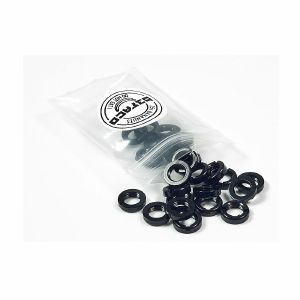

Notes: Bananuts are anodized aluminium custom minijack nuts, following Buchla/Serge colouring code: Blue, purple, red, orange, yellow, white, green and black. Perfect lovely thingies to pimp your modular, code your inputs and outputs with colours or just give a touch of beauty to your favourite gear!

Notes: Bananuts are anodized aluminium custom minijack nuts, following Buchla/Serge colouring code: Blue, purple, red, orange, yellow, white, green and black. Perfect lovely thingies to pimp your modular, code your inputs and outputs with colours or just give a touch of beauty to your favourite gear!

Notes: Custom wrench for 3.5mm jacks, designed for Bananuts or other slotted round 3.5mm nuts.

Notes: A spectral processing playground.

Bandit is a fun combination of band-pass filters, VCAs, and routing options.

It serves multiple functions including equalizer, crossover, multiband VCA, 4 band spectral mixer, and spectral external FX insert point.

It allows you to:

Cut or emphasise different frequency bands of a signal, acting as a voltage-controlled equalizer/isolator.
Split a sound into four different frequency bands for external processing, and if needed, insert them back
Mix four different signals with predefined tone placement in the mix.
Create four different sounds from one sound source by modulating the volume with four different envelopes.
Create evolving timbres by modulating one or more frequency bands using LFOs or audio-rate modulation.

Specs

Current needs: +12V: 80mA, -12: 70mA, 5v:0
Width: 8 HP
Depth: 30mm (including power connector)

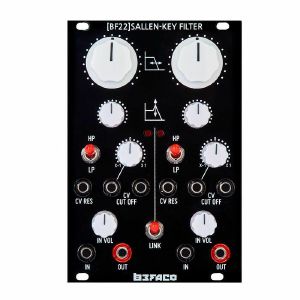

Notes: The BF-22 VCF is a dual Hi/Low-pass filter inspired by the Sallen-Key filter from the early MS-20.

DISCLAIMER: This filter brings to your modular system the character of early MS-20 sound: Kick-ass-rocking-dirty screams! It inherited not only it's amazing sound, also MS-20 noise floor. If noise floor is an issue for you, this might not be your filter.

Features:

Dual-channel Sallen-Key Filter. Inspired by the early MS-20
High and Lowpass operation.
Two CV inputs per channel with a dedicated atenuverter for the first one.
CV controlled resonance.
The first channel can be linked to the second one with the "Link" switch.

Specifications:

Current needs: +12V: 40mA, -12V: 20mA
Width: 17 HP
Depth: 30mm (including power connector)
Aluminiun, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona.

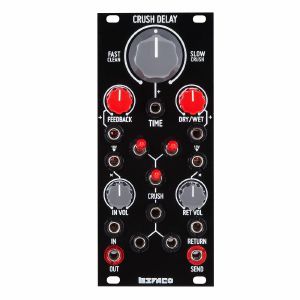

Notes: Crush Delay v3 is a special Echo-Delay unit based on the PT2399 IC, which is able to offer 400ms of clean delay and up to 2 seconds of dirty repetitions, having a special talent to generate noisy-glitch textures. The module bases its operation on controlling the PT2399 chip with circuit bending techniques, converting the unit in an advanced VC digital trash generator. This third version comes with some interesting new features like redesigned VCAs circuits, wider range for clean delay and reduced depth to make it skiff friendly.

The module features a few VCAs to provide a flexible signal route to maximize module's possibilities. First two VCAs at the inputs to control the amount of signal sent to the delay. The first is routed to both the dry/wet mix and the delay, and the second directly to the delay. Combining the second VCA and the FX Send output allows external feedback routings.

Compared with v2, this third version offers a bigger range of clean delay time as well as a revision of some of the Crush modifiers. Combining those modifiers you will have a access to a vast palette of noises and textures that can be used in many different ways. From ambient/drone patches to even percussion sounds.

The VC Feedback features an automatic gain control to keep levels stable at any feedback level.

- Current needs: +12V: 135mA, -12V: 35mA
- Width: 11 HP
- Depth: 30 mm (inc power connector)
- Aluminium, heat-treated front panel
- Designed, kits prepared and modules assembled in Barcelona

Notes: 3,5mm TRS to male DIN 5

150cm length

Notes: 3,5mm TRS to male DIN 5

150cm length

Notes: The EVEN VCO is a voltage-controlled oscillator that offers stability and high precision tuning over 10 octaves. A redesigned temperature compensation circuit maintains the oscillator stable against voltage and temperature drops.

Specifications:

Current needs: +12V: 36mA, -12V: 26mA
Width: 8 HP
Depth: 22mm, (28mm DIY) including power connector
Aluminium, heat-treated front panel.
Designed, kits prepared and completed modules assembled in Barcelona.

Notes: Befaco's unique GameBoy-based effects module allows you to change effects by swapping cartridges, all with CV control over key parameters. Effects include Skuara's harsh fuzz, Instruo's micro phaser and much more.

Supplier's Notes:
A crazy idea with the support of a bunch of crazy people.

A Multi FX module based on game carts!

FxBoy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analogue Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

What have these crazy people put in their cartridges?

Trash

Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!

Flanger

Analogue Wavefolder

Eskuara

AVMA
AVMA by Tesseract Modular is a bipolar VCA with one switchable wavefolder stage followed by an analogue frequency reducer. The VCA gain is x2, it can be used with i5V oscillator signals at the CV input for ring modulation effect.
Micro Phaser

Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path.

The purpose for this cartridge is to completely f&%k your phase up!

Instruo - We make sounds with the things that we make to make sounds with.

Technical Specifications

CV control over all parameters and Dry/wet
CV controllable four-band EQ, routable post or pre-effect.
Hot swap for all carts.
Selector for two different flavours of each cart.
Open specifications to design your own carts

Specs

Current needs: +12V: 125mA, -12V: 100mA, 5v: 0mA
Width: 12 HP
Depth: 35 mm (including power connector)
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Befaco's unique GameBoy-based effects module allows you to change effects by swapping cartridges, all with CV control over key parameters. Effects include Skuara's harsh fuzz, Instruo's micro phaser and much more.

Supplier's Notes:
A crazy idea with the support of a bunch of crazy people.

A Multi FX module based on game carts!

FxBoy is a multi-FX module designed in collaboration with several talented manufacturers.

This is an effect unit with CV control over the parameters and Dry/wet control, with a Built-in CV controllable four bands EQ.

Each effect is physically hosted in a hot-swappable game cart and designed by a different manufacturer: Touell Skouarn with Skuara a harsh fuzz with overdrive, Instruo with micro Phaser, a two-flavoured Phaser, Feedback modules with a vintage Flanger, XOR with FX-Girl, a digital double effect module: Delay + Granularizer, Making sound machines with an analogue Wave folder, Tesseract with a bit crusher and Befaco Trash distortion!

What have these crazy people put in their cartridges?

Trash

Trash is a harmonic distortion that combines both clipping and folding flavours. Modes A and B will select between aggressive and more aggressive flavours!

Flanger

Analogue Wavefolder

Eskuara

AVMA
AVMA by Tesseract Modular is a bipolar VCA with one switchable wavefolder stage followed by an analogue frequency reducer. The VCA gain is x2, it can be used with i5V oscillator signals at the CV input for ring modulation effect.
Micro Phaser

Three cascaded all-pass filters, a built-in LFO and a saturator in the feedback path.

The purpose for this cartridge is to completely f&%k your phase up!

Instruo - We make sounds with the things that we make to make sounds with.

Technical Specifications

CV control over all parameters and Dry/wet
CV controllable four-band EQ, routable post or pre-effect.
Hot swap for all carts.
Selector for two different flavours of each cart.
Open specifications to design your own carts

Specs

Current needs: +12V: 125mA, -12V: 100mA, 5v: 0mA
Width: 12 HP
Depth: 35 mm (including power connector)
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: Inamp is a dual pre-amp in just 4 HPs. Featuring 6,3 Jacks inputs as well as Minijacks.

Both inputs are summed so you can use them at the same time as an input mixer.

The unit is designed to amplify up to x20 the input signal, allowing to amplify most of the music machines out there (Domestic line levels) as well as some guitars (Humbucker-like pickups and so).

The first channel is normalled to second one in series, so it's possible to have two stages of amplification or two separate ones.

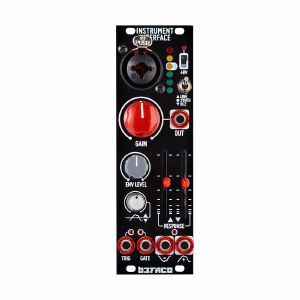

Notes: Instrument Interface is a Eurorack pre-amp capable of bringing any type of audio signal to modular levels, thanks to its amplification circuit.

The module can drive regular and condenser microphones (+48V Phantom Powered), as well as Instrument and Line signals with a very low distortion ratio.

Going further from the regular re-amp operation, Instrument Interface offers some additional extra functions like a Trig/Gate extractor and Envelope Follower circuits, allowing you to use the character of your audio signal in more creative ways.

Notes: 50 of Befaco's unique screws designed specifically for Eurorack. These M2.5 screws can be secured by hand, all common screwdrivers and Allen Key. These are great for saving time when rearranging your synth.

Each Knurlie comes with a fitted plastic washer to prevent rack rash.

Notes: Knurlies are the first screws specially designed for Eurorack - engineered with love by Befaco to make re-arranging your case a matter of minutes!

Knurlies can be fastened by hand, phillips, slot or allen, and include plastic washers to avoid rack-rash.

These screws are M3x7mm, so they can also be used on 3mm thick panels as well as regular 2mm ones.

Notes: Combine up to four audio and or CV sources into one output, with independent manual level control.

It can be used as a four-channel mixer or as two separate two-channel mixers, depending on the connection.

If a cable is connected to the Master output but not to the 1+2 output, all channels will be summed at the Master output. If both the Master and 1+2 outputs are connected, the Master will output the mix of channels 3 and 4, while the 1+2 output will provide the mix of channels 1 and 2.

Each pair of channels has an LED indicator that shows the presence of a signal.

Notes: Muxlicer is a sequential signal processor designed for add a huge range of special functions to your modular setup in the minimum space.

Muxlicer is divided in three main blocks: Digital Step Controller, Gate Generator and Analog Switch (a.k.a. Mux/DeMux).

The module is designed with high "function to HP ratio" philosophy, to have maximum flexibility in minimum space.

Notes: A typically comprehensive approach to noise sources from Befaco, featuring five different circuits plus two analogue multimode filters and plenty of CV controls for sculpting the output.

Supplier's Notes:
Noise plethora has three different noise generators:

The first two are identical and are composed of digital algorithms followed by a 12dB analog multimode filter.
Each program has two variables (Named X and Y) addressed by two manual controls and two associated control voltage INs.
Ships with an extensive (and expanding) algorithms library: textures, wave clusters, harsh noises, and glitches.

Generator C has three simultaneous outputs:

White. Flat Response Classic white noise.
Gritty. Granulous texture noise, with voltage-controlled grit quantity.
Filtered. Is the White or Gritty noise followed by a 24dB multimode VCF.

A total of 5 different noise sources in one module!

Dimensions:

14 HP
25 mm deep

Current Draw
110 mA +12V
67 mA -12V
0 mA 5V

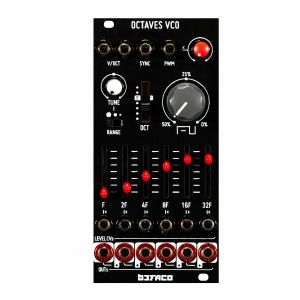

Notes: Really clever stuff here. The Octaves VCO takes an additive approach, layering harmonics on top of a fundamental frequency to create complex tones. Control the six bands via CV to adjust the harmonic content.

Supplier's Notes:
A harsh and funky take of an additive Oscillator.

Pile up multiplications of your frequency to get a lo-fi-retro wall of squared sound!

You get six doubled frequency pulses, or octaves, with common PWM and volume control for each of them.

The output of each is cascaded to the next one, so you can either have one output with all frequencies or break the chain and get several sums and modulate each independently!

Features
Six bands, multiple of the base frequency.
Square wave oscillator with Octaves selector PWM control and sync.
Range control for Tune pot.
Volume CV control and individual output for each band
Cascaded summing outputs.

Specifications
Current needs: +12V: 110mA, -12V: 84mA
Width: 12 HP
Depth: 22mm (assembled and DIY), including power connector
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: Befaco's new Output Module is designed to be the master output for your modular system, providing an extra Cue Input to monitor any signal.

Left IN is routed to both channels when no Right signal is present. Both Outputs are TRS balanced.

A Headphones out is available. You can route Headphone OUT to the main out or an independent signal with CUE switch. Like this you can either pre-listen your sounds with the CUE Input or listen to your main out without disturbing your neighbours!

Level LEDs are available to monitor levels of each signal on the module.

Notes: From trickling hi-hats to thunderous kicks. The Befaco Percall 4-Channel VCA/Delay Envelope Module is designed to take care of all percussive aspects of your Eurorack rig. You'll be able to create a whole host of percussion thanks to the 4 VCAs, volume control and decay options. By using the trigger you'll be free to open the VCA whilst the volume knob helps determine the level of the percussive sound you've sculpted. Take your tones to the next level thanks to the inclusion of an output on the envelope. You can apply this to the pitch of the oscillator to achieve a fat kick drum which offers excellent low frequency energy. The Percall 4-channel module is the ultimate addition to your Eurorack.

Notes: Pony VCO is a fully analogue Thru-Zero oscillator with wavefolder and dedicated VCA in only 4HP. The module offers great stability and tuning capabilities thanks to its powerful core, based on Sound Semiconductors IC. It comes with a range selector, that allows it to go down to LFO range, as well as octave and waveform selectors.

Pony VCO is also available in 1U format keeping the same functionality and control layout.

Features

Through Zero Frequency Modulation
Wavefolding (Timbre)
Pulsewidth Modulation (PWM)
SYNC
VCA
LFO

Specs

Current Draw: +12v: 32 mA -12v: 25mA
Width: 4HP
Deepth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

In Through Zero oscillators, frequency is controlled by either positive and negative voltage. If FM CV goes below zero, the core will continue oscillating inverting its phase. This "little" change of behaviour allows the core to create a whole new range of timbres that are just impossible to achieve with regular VCOs.
If you set the module as LFO, the range of funky modulations will be endless!

Notes: Voltage-controlled lag processor and slope detector

Transforms stepped notes into smooth acid slides with independent speeds for both upper and lower notes.

The onboard slope detector generates gates while the output is rising or falling, allowing events to be activated when moving to upper or lower voltages.

Additionally, it can convert a gate signal into an Attack-Sustain-Release (ASR) envelope.

The shape control feature helps balance speed versus input range, enabling quicker speed while sliding to further notes allowing for time compensated portamento.

Features

Perfect pitch tracking (error < 1 mV)
Independent rise and fall controls
Assignable CV input for rise and fall times
Three selectable speed ranges
Fader-based interface allows for one-handed adjustment of rise and fall times

Specs

Current needs: +12V: 20mA, -12: 15mA, 5v:0 on additional rails
Width: 4 HP
Depth: 25 mm (including power connector)
Designed, kits prepared and modules assembled in Barcelona

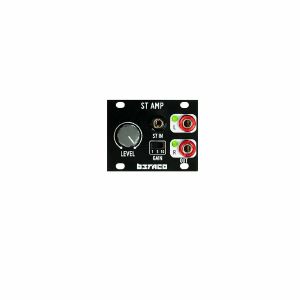

Notes: ST Amp is a 1U stereo amplifier designed to boost your external signals into modular levels. The module is designed under the Intellijel 1U format and uses the same pinout, making it fully compatible with the Intelljel case's rear connectors.

Features

Stereo amplifier and signal booster.
Three selectable gain modes: x1, x5 and x10
Level meter LEDs
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: +12V: 30mA, -12V: 30mA
Width: 10 HP
Depth: 37mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: STMix is a four-channel stereo mixer in 28hp and 1U format. It can work independently or as an expansion of Befaco's Hexmix module via the six-pin connector located in the back. The module is designed under the Intellijel 1U format.

Features

Four channels stereo inputs with volume control.
AC Coupled inputs to improve audio performance.
Output clipping LED indicators.
Connector at the back to interface with the Hexmix module.
1U Intellijel format

Specs:

Current needs: +12V: 30mA, -12V: 30mA
Width: 28 HP
Depth: 20mm (including power connector)
Aluminium, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

Notes: Stmix is a compact 4 channel stereo mixer with an Auxilliar input. This input will allow us to chain a few of them or to insert an extra fifth input.

This module is compatible with Befaco's Hexmix system, and can be internally connected to hexmix module to add the output of STMIX to your main mix.

Specs

Current needs: +12V: 8mA, -12V: 10mA
Width: 6 HP
Depth: 20mm (including power connector)
Aluminiun, heat-treated front panel
Designed, kits prepared and completed modules assembled in Barcelona

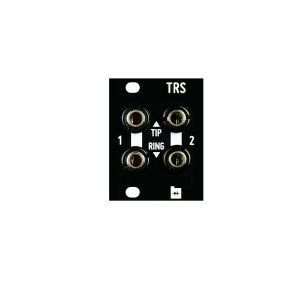

Notes: 1U TRS

Total flexibility for the Befaco 7U or Intellijel cases rear connectors Jacks.
The channels are reversible and can be used independently for Input or Output.
4 Inputs or Outputs (per module) can be obtained by "AND" cables.
Independent tip and ring attenuators are selectable for each channel to convert the Modular Input Level to Line Output Level.

Features

Selectable attenuator per channel
Fully compatible with Intellijel's 7U and Palette cases.
1U Intellijel format.

Specs

Current needs: Passive
Width: 6 HP
Depth: 20 mm (including power connector)
Designed, kits prepared and completed modules assembled in Barcelona

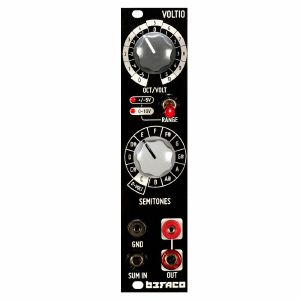

Notes: An accurate Manual Voltage Source.

Voltio fits somewhere between a music tool and a piece of electronics lab gear.

It generates voltages equivalent to all the notes on the 12-tone equal temperament scale throughout a ten-octave range, with an intuitive two-knob interface.

The Precision Adder In, lets you sum Voltio's Out with external voltages.

Additionally, the front panel banana connectors let you plug standard multimeter probes for hands-free operation on electronics lab.

Use it to transpose Oscillators and sequences in a musical way or as a reference to calibrate your analogue gear.

Features:

Easily adjust your oscillators in known intervals.
Transpose Musical phrases from sequencers, arpeggiators, or any other notes source.
Calibrate oscillators and filters on your DIY projects or during analogue gear maintenance.

Specs:

Current needs: +12V: 35mA, -12V: 15mA
Width: 6 HP
Depth: 30mm including power connector
Designed, kits prepared and assembled in Barcelona.

Notes: Three units of Befaco's Y splitter cable. Stereo jack 3.5mm plug to 2x mono jack 3.5mm sockets. Black and red colour. 10cms.
