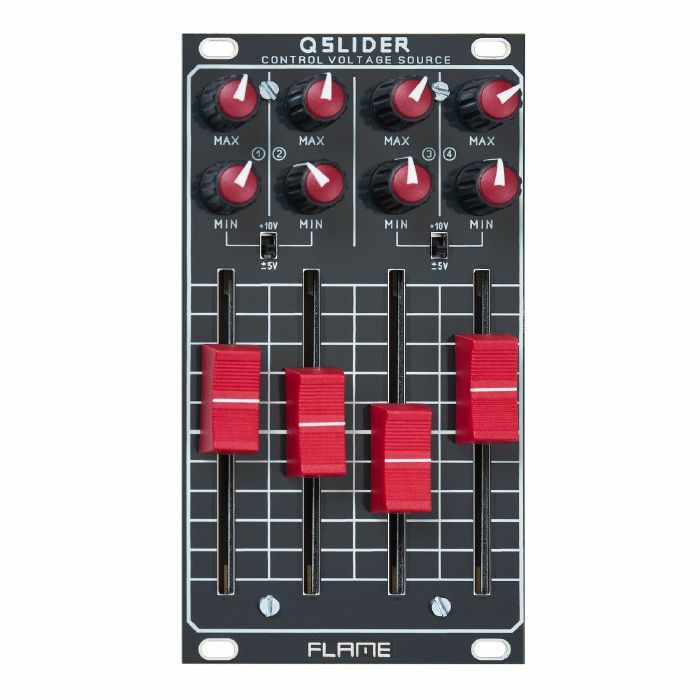

The QSlider black is an analogue CV source with four 60 mm faders.

The control range of the four sliders can be defined with two min / max controls.

The Min controller determines the output voltage at zero position of the slider and the Max controller determines the output voltage at the end position of the slider.

The slider now regulates between these two voltages. This allows you to restrict the control range and still have the entire control path of the slider available.

The reverse voltage is available at a second output socket (min and max are reversed). This means that the slider can also be used as a crossmix fader.

Two common channels can be operated unipolar or bipolar. The voltage ranges are 0..+10V or + / - 5V.

The output sockets are located on an extra 4HP panel for mounting at any point (with approx. 40cm long connection cable). This means that several modules can also be mounted seamlessly next to each other.

Power consumption: 30mA at +12V and 20mA at -12V and 12mA at +5V

Depth: 28mm

18 HP
