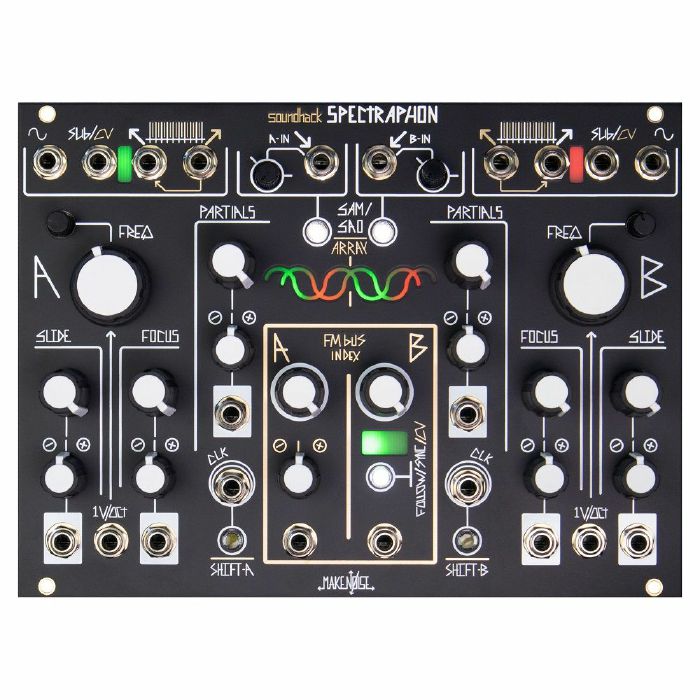

Make Noise / Soundhack Spectraphon Dual Spectral Oscillator Module
Delivery
Features
Specs
Manual/brochure
Returns & refunds
Finance
- Dual Digital VCO with eight simultaneous outputs, as well as two audio inputs, two gate inputs and ten CV inputs
- Built on Make Noise''s new digital hardware platform, the most powerful digital module Make Noise have yet created
- Coded by Tom Erbe of Soundhack
- Spectral Amplitude Modulation (SAM) creates spectral oscillations based on continuous analysis of the audio at the input
- Spectral Array Oscillation (SAO) creates spectral oscillations based on stored sets of spectra called Arrays, which are created in the SAM mode
- Each of the two VCOs operates independently in SAO or SAM, in any combination High definition internal Frequency Modulation Bus with easy access to Harmonic Ratios via the Tuning Beacon
- Sub-Oscillator/CV outputs give access to unique sub-oscillator shapes, envelope following, or clockable modulation sources
- Sine and Sub operate independent of FM Bus modulation.
- Follow and Sync operations on Side B for ease of use in dual oscillator patches, tuned FM, hard sync sweeps etc.
| Module Type | Oscillator Module |
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.
Make Noise / Soundhack Spectraphon Dual Spectral Oscillator Module
Based on a new digital hardware platform, the Spectraphon is a powerhouse spectral oscillator, capable of everything from analogue-style dual complex oscillators to FM and much more.
Supplier's Notes:
The Make Noise / Soundhack Spectraphon is a dual Spectral Oscillator coded by Tom Erbe of Soundhack. It uses real-time spectral analysis and resynthesis to create new sounds from those that already exist. It is inspired by classic electronic musical instruments of the past, including spectral processors, additive synthesis, vocoders, and resonators especially the Buchla 296 and Touche, but it takes a physical form more resembling the classic analogue dual complex oscillator in the lineage of the Buchla 259 and the Make Noise DPO.
The Spectraphon is the first module to be built by Make Noise on its new digital hardware platform. This hardware, engineered by Jeff Snyder and Tony Rolando, provides more i / o at higher resolutions, and a lower noise floor than we have ever had access to in a digital module, allowing us to unleash Tom Erbe's DSP code to a previously unattainable degree.
The Spectraphon has two nearly identical sides, A and B, which oscillate in one of two ways: Spectral Amplitude Modulation (SAM), or Spectral Array Oscillation (SAO). In SAM, instead of oscillating at all times like an analogue VCO, sound at the Spectraphon's input is used to modulate the amplitude of a set of harmonics. In SAM the Spectraphon can be sequenced and frequency modulated like any VCO. At any time the current spectrum can be used to create an Array for later use in SAO mode where the Spectraphon oscillates at all times, with the spectrum at the Odd and Even harmonic outputs being drawn from those stored Arrays.
The Slide and Focus controls are mode-dependent: in SAM, they determine how the Spectraphon responds to sound at the input for Spectral AM, while in SAO, they are used to modulate the Array.
In either mode (SAM or SAO), the Partials control works as a combined amplitude and timbre gate for the Odd and Even harmonic output and the FM Bus will create high definition internal frequency modulation from the opposing side of the Spectraphon. The two sides can also interact via the internal FM Bus, the Follow and Sync modes, and by patching them together.
Width: 34hp
Power:
230mA @ +12V
55mA @ -12V
Module Depth (incl power cable): 36mm
Supplier's Notes:
The Make Noise / Soundhack Spectraphon is a dual Spectral Oscillator coded by Tom Erbe of Soundhack. It uses real-time spectral analysis and resynthesis to create new sounds from those that already exist. It is inspired by classic electronic musical instruments of the past, including spectral processors, additive synthesis, vocoders, and resonators especially the Buchla 296 and Touche, but it takes a physical form more resembling the classic analogue dual complex oscillator in the lineage of the Buchla 259 and the Make Noise DPO.
The Spectraphon is the first module to be built by Make Noise on its new digital hardware platform. This hardware, engineered by Jeff Snyder and Tony Rolando, provides more i / o at higher resolutions, and a lower noise floor than we have ever had access to in a digital module, allowing us to unleash Tom Erbe's DSP code to a previously unattainable degree.
The Spectraphon has two nearly identical sides, A and B, which oscillate in one of two ways: Spectral Amplitude Modulation (SAM), or Spectral Array Oscillation (SAO). In SAM, instead of oscillating at all times like an analogue VCO, sound at the Spectraphon's input is used to modulate the amplitude of a set of harmonics. In SAM the Spectraphon can be sequenced and frequency modulated like any VCO. At any time the current spectrum can be used to create an Array for later use in SAO mode where the Spectraphon oscillates at all times, with the spectrum at the Odd and Even harmonic outputs being drawn from those stored Arrays.
The Slide and Focus controls are mode-dependent: in SAM, they determine how the Spectraphon responds to sound at the input for Spectral AM, while in SAO, they are used to modulate the Array.
In either mode (SAM or SAO), the Partials control works as a combined amplitude and timbre gate for the Odd and Even harmonic output and the FM Bus will create high definition internal frequency modulation from the opposing side of the Spectraphon. The two sides can also interact via the internal FM Bus, the Follow and Sync modes, and by patching them together.
Width: 34hp
Power:
230mA @ +12V
55mA @ -12V
Module Depth (incl power cable): 36mm
