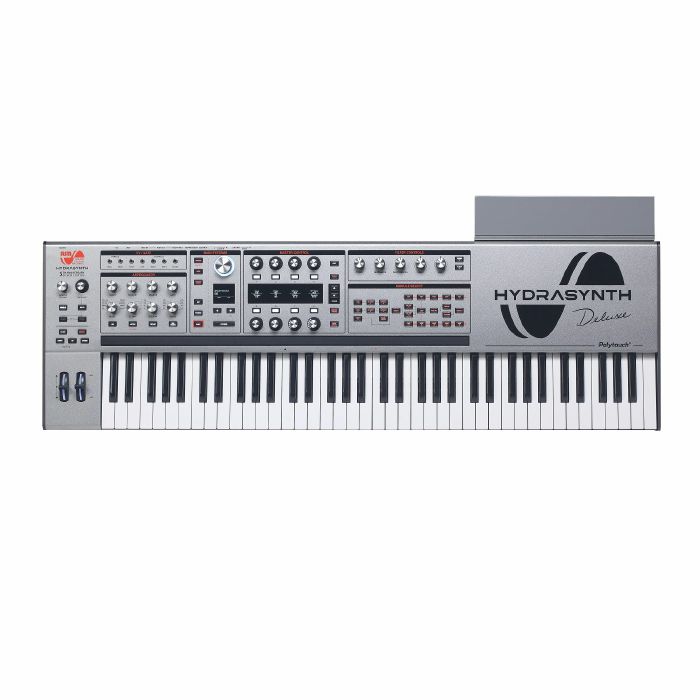

ASM Hydrasynth Deluxe 16-Voice Advanced Wavetable Synthesiser (5th anniversary silver edition)

Click 'email me when available'.
ASM - ASM Hydrasynth Deluxe 16-Voice Advanced Wavetable Synthesiser (5th anniversary silver edition)
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
Product image
synthesisers
Delivery
Specs
Returns & refunds
Finance
SynthesisAdvanced Wavetable synthesis
Oscillators Per Voice3
FiltersTwo Filters: Series or parallel routing, Filter 1, 12 & 24dB/octave modern ladder (compensated), 12 & 24dB/octave vintage ladder (uncompensated), 3-Ler LP, BP, HP, MS20 HP, LP, Low Pass Gate, STN LP, BP, HP, 1 pole LP, 8 pole LP, Vocal filter, Multiple vowel order options - Formant parameter, Filter 2: (SEM style), Continuously Variable Low pass > Band pass > High pass, Continuously Variable Low pass > Notch > High pass
Modulation5x Low Frequency Oscillators, 5x Envelope Generators, Matrix modulation, 8x Macro knobs and buttons, Arpeggiator
EffectsPre-effects: before Delay and Reverb: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor (with side chain), Distortion. Delay: Mono, Stereo, Panning, LRC (left/right/center), Reverse, BPM sync option. Reverb: Hall, Room, Plate, Cloud, Freeze mode. Post-effects: after Delay and Reverb Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor (with side chain), Distortion
SequencerStep Wave: up to 64 user-definable steps
KeyboardYes
InputsCV / Gate Inputs , Expression pedal input, Sustain pedal input, DC input jack,. USB MIDI In
OutputsCV / Gate Outputs, USB MIDI OUT, Audio outputs: Stereo analogue outputs: two pairs (balanced), Two headphone connectors, 6.35 mm (1/4 inch) and 3.5 mm
Dimensions (mm)349 x 119 x 1131
Weight (g)13000
PowerMains Adapter

If you decide a product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.

Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth

To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

ASM Hydrasynth Deluxe 16-Voice Advanced Wavetable Synthesiser (5th anniversary silver edition)
The top dog of the Hydrasynth range, presented here in anniversary silver edition, featuring a dual synth engine offering 16 voices (double the standard model) and a larger six-octave keyboard. Serious synth power with great wavetable sound.

Supplier's Notes:
The HYDRASYNTH DELUXE is ASM's flagship Hydrasynth, offering a dual sound engine setup and the largest ASM Polytouchr polyphonic aftertouch keybed to date. The user interface is designed with the utmost attention to detail and offers a rapid workflow.

The Hydrasynth Deluxe can operate as a single 16-voice Hydrasynth or it can be split or layered, with a dedicated 8-voice Hydrasynth engine for each part. Each engine also has its own set of balanced analog audio outputs.

The sound engines feature advanced wavetable synthesis with 3 Oscillators, dual Wave Mutants, and 2 filters that can be configured in series or parallel. The tone generating capabilities are simply unmatched.

As for performance capabilities, the Hydrasynth Deluxe has a proprietary 73-note Polytouch keybed with polyphonic aftertouch. This provides a level of expressive, per-note control found only in certain vintage synths.

Add to this a 4-octave ribbon controller and ergonomically-designed pitch and mod wheels, and you have expression and control that are unequalled by any other hardware synthesizer on the market.

Dual Sound Engines

The Hydrasynth Deluxe contains an impressive dual sound engine architecture, and as a result it provides a massive 16 voices of polyphony. You can play one 16-voice patch in Single mode, or use two simultaneous patches in Multi mode.

In Multi mode the Deluxe unleashes two completely independent, full-fledged 8-voice Hydrasynth sound engines. The keyboard can either be split, with one engine for the Lower part and another for the Upper part, or it can layer the two parts across the entire keyboard.


The top panel has a dedicated balance knob for adjusting the relative levels of the Lower and Upper parts. The Hydrasynth Deluxe also has separate stereo audio outputs for each part and independent MIDI channel assignments for true bi-timbral operation.

Polytouch Keybed

The perennial pursuit of musical instrument manufacturers is to find better ways for musicians to express themselves. Options have been limited for keyboard players; we've had to settle for a velocity-only approach to emphasize one note over another. Pressure-sensitive keyboards could only change all of the notes at the same time.

Not any more!

Enter ASM, with patented Polytouch technology. The 73-note semi-weighted keybed on the Hydrasynth Deluxe provides fully polyphonic aftertouch, as well as Note On / Note Off velocity sensitivity and the monophonic aftertouch found on other keybeds. Finally, variations in key pressure can affect notes individually.

It feels great, too: the 73-note Polytouch keybed features high quality, standard sized keys, so you will feel right at home, right away. It's like putting your hands in a glove that fits perfectly.

The revolutionary Hydrasynth Deluxe Polytouch keyboard helps you be more in touch with the music you are making. Now every note you play can ebb and flow like the tide.

Ribbon Controller

Add powerful expression to any patch using the 4-octave Ribbon Controller, which is perfectly situated above the keyboard for easy access by either hand. It can be used as a freely assignable modulation source, a pitch bend control, or even as a monophonic instrument!

This is possible thanks to the Theremin mode, which uses the ribbon to trigger a note. You can choose continuous pitch operation or quantize the ribbon to one of 60 scales, including microtonal scales. And if that's not enough, the ribbon can also be used as a CV source to control a Eurorack system!

Laptop shelf

The included, detachable laptop shelf can be home to a lot of different types of instruments or processors. It helps take even greater advantage of the generous space above the upper two octaves of the 73-note Polytouch keyboard.

Oscillators

The tone generation capability is the heart of any synthesizer, and the 3 Hydrasynth oscillators are alive with potential.

Each of the oscillators lets you choose from a selection of 219 single-cycle waveforms. And on top of that, two of the oscillators have powerful wavemorphing capabilities.

Wavemorphing is a feature usually found on synths with preset wavetables. But creating user wavetables on those products is arduous or downright impossible. Unlike most wavetable synths, the oscillators 1 & 2 have an easy-to-use WAVELIST mode.

This mode lets you select any 8 waves from a diverse collection of 219 waves, arrange them in the order you want, and then morph from one wave to another. This can be done automatically with any modulation source, such as an LFO or an envelope, or manually with a physical control such as polyphonic aftertouch or a Macro.

And now in version 2.0 you can choose the bit depth of each oscillator, which puts those sought-after vintage or grungy sounds at your fingertips.

Mutants

Oscillators 1 & 2 are routed into MUTANTS. The Mutants allow you to modulate, bend and sculpt the sound in new (and old) ways.
Read moreRead less
Specifications
SynthesisAdvanced Wavetable synthesis
Oscillators Per Voice3
FiltersTwo Filters: Series or parallel routing, Filter 1, 12 & 24dB/octave modern ladder (compensated), 12 & 24dB/octave vintage ladder (uncompensated), 3-Ler LP, BP, HP, MS20 HP, LP, Low Pass Gate, STN LP, BP, HP, 1 pole LP, 8 pole LP, Vocal filter, Multiple vowel order options - Formant parameter, Filter 2: (SEM style), Continuously Variable Low pass > Band pass > High pass, Continuously Variable Low pass > Notch > High pass
Modulation5x Low Frequency Oscillators, 5x Envelope Generators, Matrix modulation, 8x Macro knobs and buttons, Arpeggiator
EffectsPre-effects: before Delay and Reverb: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor (with side chain), Distortion. Delay: Mono, Stereo, Panning, LRC (left/right/center), Reverse, BPM sync option. Reverb: Hall, Room, Plate, Cloud, Freeze mode. Post-effects: after Delay and Reverb Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor (with side chain), Distortion
SequencerStep Wave: up to 64 user-definable steps
KeyboardYes
InputsCV / Gate Inputs , Expression pedal input, Sustain pedal input, DC input jack,. USB MIDI In
OutputsCV / Gate Outputs, USB MIDI OUT, Audio outputs: Stereo analogue outputs: two pairs (balanced), Two headphone connectors, 6.35 mm (1/4 inch) and 3.5 mm
Dimensions (mm)349 x 119 x 1131
Weight (g)13000
PowerMains Adapter
