Notes: Standard Eurorack power cable.

Use the 10-16 variant for most modules. 16-16 is for modules that use the internal +5V rail.

Length: 25CM (9.8")

Notes: The Daisy Patch Submodule is a DSP platform for Eurorack synthesizer modules. It features a lightning fast STM32 processor, high fidelity stereo audio codec, and enough RAM for 10 minute long buffers - all with standard signal levels and conditioning for the Eurorack ecosystem.

Simply design your carrier board, and let the Patch Submodule do the rest!

Programming is a breeze with support for C++, Max/MSP Gen~, Pure Data, Arduino, and more. These languages can be coupled with our open source DSP library, DaisySP, for a powerful music synthesis programming environment.

Create your dream Eurorack module with the Daisy Patch SM!

STM32 processor at 480MHz, 96kHz / 24-bit audio, RAM for up to 10 minute audio buffers

Stereo audio IO, x12 ADC inputs ( 16-bit bipolar CV or potentiometer), x2 CV outputs (12-bit), x2 gate inputs, x2 gate outputs, x12 GPIO

Flash firmware over USB via open source web programmer

Support for SDDMC, SPI, UART, I2C, and USB

FCC / CE Tested and Compliant

Notes: Expand your Pwr's possibilities with the Flying Bus Cable! With 8 slots and a flexible form factor, the Flying Bus Cable can work its way through any system, all while delivering reliable, clean power.

Flying Bus Cable

8 Slots

Bendable for unique case solutions

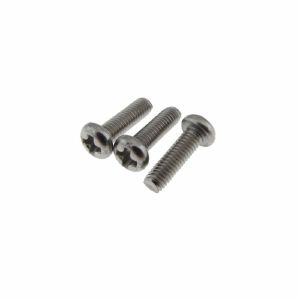

Notes: M2.5 screws have gained popularity in the US with manufacturers such as Elite, Make Noise, and anyone using Vector rails.

Notes: M2.5 screws have gained popularity in the US with manufacturers such as Elite, Make Noise, and anyone using Vector rails.

Notes: M3 is the original mounting screw as specified by Doepfer in the Eurorack specification. M3 screws are used in cases by Doepfer, TipTop, Intellijel and others.

Notes: Screwdriver with reversible phillips and flat head types.

Fits both Eurorack screw sizes: M3 and M2.5.
