Notes: The Gemini 2412 is a creamy, extremely fat sounding dual filter based on vintage Oberheim SEM circuits. In addition to high-pass, band-pass and low-pass, there is the infamous variable filter type, which allows you to blend between several characteristics. Thanks to its dual concept, serial and parallel modes of operation and an ingenious modulation system, the Gemini 2412 should not only be able to achieve classic, extremely bulbous results, but also wafting stereo effects and lively formant sounds.

Notes: Two independent Contour Envelope Generators in a single 12hp wide Eurorack module. These are very accurate replicas of the Model D contour generators, with identical circuitry and component values running on the correct +9.3V and -10v supply voltages of the original; so they exactly replicate the original envelope response along with all of it eccentricities. Extra features include manual trigger buttons and envelope status LED's.

The contour generators played a larger part in the sound of the Model D than many people realise. There are two factors that make them unique, firstly the exponential slope when is used in conjunction with the (near) linear slope of the original VCA which is responsible for the famous Model D "punch". Secondly, the re-trigger behaviour is quite unique, multiple retriggering increases the output level so that either the volume increases incrementally, or the filter opens incrementally with each extra key press.

AJH Synth have added independent Decay switches for each individual Contour Generator rather than the shared switch on the original synthesiser, these switches change the Contour response from AD (switch up) to ADSD mode (switch down).

Notes: The Low Fat is a new 2hp Eurorack module by AJH Synth, it's a High Pass filter, with frequency control by either manual pot, and/or external CV with attenuator. It's intended to compliment other filters, particularly low pass VCF modules, in practical tasks such as removing excessive low frequencies, for example when the bass is swamping a mix. It can be switched between 6dB (1 pole) response and 12dB (2 pole) response.

By patching a CV signal to the FCV input it can be voltage-controlled and used musically as with any other VCF. When used in conjunction with a LP filter it forms a fully customisable band pass filter, allowing the range of passbands to be cherry-picked. Feeding in a 1V/Oct pitch CV and setting the FCV pot to a suitable level allows it to track an incoming pitch CV, so the amount of High Pass filtering remains constant as the pitch of the incoming VCOs traverse up and down the frequency range. This can be particularly useful in creating percussive sounds, such as snares and hats, but also on sequenced bass lines. Since it is only 2HP it's a great way to occupy one of those frustrating gaps in your eurorack modular case with something that is deceptively useful, and adds another dimension to the classic bass monster that is the Transistor Ladder Filter.

Dimensions:
2 HP
26 mm deep

Current Draw:
9 mA +12V
12 mA -12V
0 mA 5V

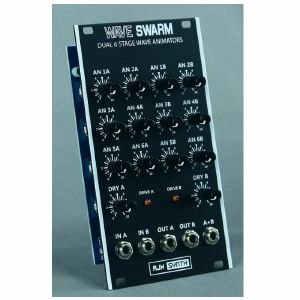

Notes: The WaveSwarm is a waveform animator and all analogue dual channel device.

Each channel simulates up to six VCO's beating in unison with a different beat frequency between each animation. The fixed beat frequencies are generated by twelve onboard LFO's, and the front panel pots control the level of each of the six animators, along with the level of the dry signal to the final mix. In addition to independent channel inputs and outputs it also has an A+B output, which sums the outputs of the two channels, creating an effect similar to twelve VCO's in unison! This is possible because channel B uses slightly different beat frequencies to channel A, they are not identical.

The input waveform can be saw, triangle, sine or wavetable/complex waveforms, in fact most waveforms with the exception of square or PWM waves will give some form of animation.

A soft clip circuit is built in so that at higher signal levels the signal magnitude is limited by rounding the top and bottom of the waveforms, thus slightly softening the sound. There are soft clip LED indicators for both channels.

It can produce huge, fat drones or supersaw type waveforms from a single sawtooth or triangle wave input.

Notes: The original MiniMod Glide +Noise module was based exactly on the original Minimoog Model D circuitry, which was designed to be used with the built in Model D keyboard, and because of its vintage design its range was severely limited to 5 or 6 octaves, and it also responded to positive voltages only. Another limitation was that it would not return fully to zero when selecting long glide times, which restricted the range even more.

So we made the decision to re-design the MiniMod Glide + Noise using modern precision parts, and we have come up with an all new circuit which has exactly the same function, but with a hugely extended range. It has the same Glide slope characteristic (a slightly curved Linear Glide) as the Model D on which the MiniMod is based, however in response to many requests from customers we have adjusted the glide up and down speeds so that they are now very similar , which is much more useful in real world applications that the earlier MK1 version which (like the Model D) would glide up considerably faster than it would glide down.

The new Mk2 MiniMod Glide Noise module now has an impressive 14 octave range, and can respond to negative voltages down to -5V. This is a very useful feature, as our MiniMod VCO's will respond to negative control voltages and produce correspondingly low frequencies; so it is now possible to glide down quickly or slowly to crazy sub bass levels! The hold feature has been improved too, it covers the full audio range as well as DC control voltages, and works as a track and hold module with Eurorack signal levels.

A further enhancement is that the Mk2 module can now (using selectable jumpers) transmit or receive pitch CV to the Eurorack power bus; for example, the Glide CV Output can now be directed to the Bus in order to send CV's to (for example) three VCO's via the bus without the need for a passive multi and four patch cords!

The Noise section of the module is unchanged, except that we have slightly boosted the level of the Red Noise output to bring it more in line with Eurorack control voltage levels.

Lastly, it is much shallower - Mk1 Glide Noise had a depth of 54mm, and it was the only MiniMod module that was too deep to fit a skiff style case - and this prevented a full MiniMod system being installed into a shallow Eurorack case. The new MK2 version is only 28mm deep, so this allows both it and a full MiniMod system to be mounted into shallow skiff style Eurorack cases.

Dimensions: 6HP wide, 26mm Deep
Current draw: 36mA Positive, 38mA Negative

Notes: Five-channel mixer with mutes, built-in VCA, switchable overdrive and LED level meter. Simple, straightforward, high-quality stuff from AJH.

Supplier's Notes:
The MiniMod Muting Mixer & VCA is a 10HP wide, five channel audio mixer with many useful features. It is available with either a black (Dark Edition), or a silver front panel.

The mixer section has five input channels, and each channel includes a bi-colour tactile LED switch that can instantly mute or un-mute the channel, replicating the oscillator on/off switches on the original Model D synthesiser. This arrangement is more convenient than regular switches as each illuminated switch shows the on/off status of the associated channel and multiple buttons can be pressed at once, making it very useful for live performance.

AJH have also included a four segment LED level meter so that the overall level can be seen at a glance and adjusted to prevent the output from getting too "hot" and causing distortion in other modules further downstream.

It also features a VCA that is integrated into the output section, and this can be switched from linear to exponential response - this allows it to be used as a voltage controlled sub mixer or as a stand alone VCA with five inputs.

Lastly, AJH added a wonderfully soft and warm sounding overdrive circuit that can be switched in to add smooth, tube like distortion. This works in a similar fashion to a master volume guitar amplifier, so the amount of overdrive can be varied widely with different settings of channel and master output levels.

Module Width: 10hp
Module Depth: 26mm (Including power lead)
Current Usage: 55mA Positive, 25mA Negative
