Notes: The new PerFourMer is a real analog synthesizer, through its simple control surface and very flexible sound production it is able to offer a near inexhaustible variety of Bass, Lead, Pad and Effect sounds. Additionally, with its total of six filter inputs, the PerFourMer is also perfectly suited as a complex filter-bank. Even though the PerFourMer is not considered a modular system, it can still be described as a modular or at the very least a semi-modular. The basic concept is reminiscent of classics such as the Oberheim 4 Voice or the Korg Monopoly.

The PerFourMer is a 4 voice synthesizer, consisting of completely independent synthesizers, which can be adjusted and played independently from each other. These four synthesizer channels can be linked with each other and be played in 3 different operating modes.

Next to the already mentioned filter inputs, each channel has a single output, which can also be used as an insert for external effect devices, and make it possible to easily integrate the PerFourMer with already established equipment. It is also possible to transmit the unedited VCO signal. Additionally the opportunities of the PerFourMer can be expanded through internal patching between the channels, for example; you can route a VCO through multiple filters and VCAs, or use 2 channels to create 1 voice with 2 ADSR envelopes (1 for VCA and 1 for VCF). Use the PerFourMer as a filter-bank and the slope envelope can be doubled by interconnecting the filter in series. The PerFourMer is controlled via MIDI and additionally via CV/gate (1V/octave) inputs for every synthesizer channel.

Notes: Powerful step sequencer built around four well-equipped full-featured 16-step sequencers communicating via both MIDI and CV/Gate. There are no screens or submenus.

All features have their own dedicated controls and have their own dedicated in- and outputs on the large 87-point patch bay. Every aspect of this sequencer is CV-able. Lastly a seven bank CV Recorder is on board and can output up to 5 banks at once!

The Komplex Sequencer opens up a whole new world of creative possibilities and starts where other sequencers have stopped!

Our step sequencer lets you construct complex musical patterns, via both MIDI and CV/Gate. Built around four full-featured 16-step sequencers in a compact and light enclosure, the Komplex Sequencer is a powerful tool both live and in the studio. All features have their own dedicated controls; no screens or submenus, and all features have their own dedicated in- and outputs on the large 87-point patch bay. By patching both internal and external CV sources through the patch bay of the Komplex, you can control any parameter of the sequencer immediately and "sequence the sequence." Controls include Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Transpose, Repeat, Sequence Start Point and Skip. Additionally, the sequencer can vary output range and also has a quantizer on board operable in different scales.

And not only is the sequencer compatible with almost any synthesizer with CV/Gate, MIDI note, velocity and CC information can also transmitted by any of the four sequencers. Lastly a seven bank CV Recorder is on board and can output up to 5 banks at once! The Komplex Sequencer opens up a whole new world of creative possibilities and starts where other sequencers have stopped.

CV Inputs
Clock, Rec Clock, Transpose, Start, Stop, Skip Step, Sequence Start Point, Repeats, Seq Length, Gate Length, Play Mode, Glide, Division, CV Recorder (CV In, Clock, Start, Bank Up/Down)

CV Outputs
CV Out, Gate Out, Start Of Sequence, End Of Sequence, Clock, CV Recorder CV Out (A, B, C, D and CV)

Sequencer Controls
64 Sliders and Step Select Buttons, Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Quantizer and Scale, Output Range, One-Shot Mode, Play/Pause and Stop, Global Play/Pause and Global Stop

Section Controls
Repeat Set, Mode Menu, Skip Step, Glide, Sequence Start Point, Gate

MIDI
MIDI In, MIDI Out, MIDI Clock Out (1 trigger per quarter note)

CV Recorder
Banks A, B, C and D available at corresponding sequencer patch bay outputs. All 7 banks selectable at CV Recorder CV Out by the Select control or Bank Up/Down inputs. CV is recorded and clocked through the CV Recorder CV and Clock inputs or Sequencer Rec Clock inputs.

Extra Features
Mode Menu (Skip Step Mode, Repeat Mode, Unipolar/Bipolar CV Output, MIDI Message, MIDI Channel, MIDI CC) and Firmware Updates

Casing:
Powder coated aluminum casing, silk screened printing and wooden side panels.

Dimensions
46.2 cm x 29 cm x 4 cm (L x W x H)
18.2" x 11.4" x 1.6" (L x W x H)

Net Weight
3.2 kg / 8.8 lb

Shipping Weight:
4.5 kg. / 9.9 lbs including power adapter and instruction manual.

Power Requirements:
9VDC power adapter. Only use the KOMA adapter shipped with the unit.

Accessories
Included: dust cover, manual and power supply unit.
Rackmount kit available separately

Notes: Combining the signature warm analogue Xone sound with class leading digital connectivity, Xone:PX5 breathes life and soul into electronic music performance. The built-in FX technology offers new levels of manipulation with our new Xone:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters which are all assignable through simple hands-on control for fine-tuning the FX and expressing the DJ's inner creativity.

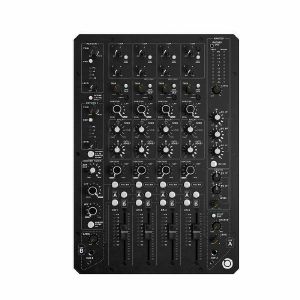

Xone:PX5 is a 4+1 channel mixer, equipped with the legendary Xone filter, 3 band EQ on all channels and an intuitive layout.

The versatile Send/Return feature allowing for the connection of external FX hardware with both Send/Return and Master Insert mode connections (Line or Hi-Z) equips Xone:PX5 for numerous enhanced setup scenarios. Each channel has its own dedicated send control for external FX processing and can also be routed to the internal Xone:FX engine.

Connect your laptop or computer to the premium internal 20 channel 24bit 96kHz USB2 soundcard for easy integration into digital DJ workflows, plus plug n' play connection via X:LINK to Xone:K series controllers for expanded MIDI control.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to an Innofader Pro 2 for ultimate crossfader performance.

No matter what your mixing style, Xone:PX5 combines a modern approach to DJing with all the tools required for creating your own individual sound.

Key Features

High quality internal soundcard

Xone:PX5 incorporates a high specification 20 Channel 96kHz, 24bit USB Soundcard, allowing it to be seamlessly integrated into digital DJ workflows.
Additionally the Xone:PX5 Soundcard supports DVS control of Native Instruments' TRAKTOR SCRATCH PRO 2 DJ software. Plug your PC/Mac into the Xone:PX5 and use the TRAKTOR SCRATCH PRO 2 control media (control vinyl or CDs) to intuitively control and scratch with digital audio files stored on your computer.

Xone:FX
Xone:PX5 features the Xone:Xcite FX suite, a new breed of FX specifically tailored for DJ performance. The array of spectral delays, resonators, gritty reverbs and more is accessed through familiar, hands-on controls for instant, instinctive operation, making it easy to add energy and excitement to a track or create entire FX soundscapes. A hybrid FX mode combines the internal and external send & return FX for more advanced FX processing.

Xone filter system

The original and best. The Xone filter is a legend in the DJ booth - none of its imitators come close. Xone:PX5's filter includes HPF, BPF, LPF, resonance control and frequency sweep, plus the option to route the Aux channel and External Return to the filter.

Xone:Sync MIDI clock engine

Xone:PX5 features an integrated MIDI clock engine which can send start/stop messages to external equipment. The 5-pin MIDI Sync/Out connection integrates external software/hardware instruments such as drum machines and synthesizers which can be connected via 14" jack input connections (mono/stereo). Xone:PX5 can also send/receive MIDI clock information through the USB connection.

X:Link
For the ultimate DJ setup, connect Xone:K series controllers to the Xone:PX5 over X:Link for hands-on control over your software, saving USB ports on your computer.

4+1 channels

On top of its four fully featured phono/USB/line channels, Xone:PX5 has a flexible mic / aux channel with XLR and 14" jack connectors and full 3 band EQ. If you don't perform with mics, the additional inputs allow this channel to be used as an extra stereo music source or USB Return channel.

Innofader compatible

Upgrade to an Innofader Pro 2 crossfader (available separately) for ultimate performance. Always a popular choice for scratch DJs.

Technical Specs
Type: Analogue
Channels: 4 + 1
EQ: 3-band / Total Kill (CH 1-4 + CH A)

USB Soundcard:
20 Channel (10 in / 10 out)
USB2 / Class Compliant
24bit / 96kHz
1 x MIDI IN
1 x MIDI Out

Line Inputs: 4 x RCA (CH 1-4), 1 x 1/4" TRS (CH A) Mono/Stereo
Phono Inputs: 4 x RCA (CH 1-4), LN/PH Switch for DVS
USB Inputs: 5 x USB (CH 1-4 + CH A)
Mic Input: 1 x XLR
Master Output: 1 x XLR (Balanced)
Master 2 Output: 1 x RCA (Un-balanced)
Booth Output: 1 x 1/4" TRS
Record Output: 1 x RCA (Un-balanced)
Master Insert: 1 x 1/4" TRS
MIDI Sync/Out: 1 x 5-Pin DIN, DIN Offset Control

Send/Return I/O
1 x 1/4" TRS Send
1 x 1/4" TRS Return
1 x LN/Hi-Z Switch

Internal Xone: FX Yes
Hybrid FX Mode: Yes (Internal < Dual > External)
FX Send: 1 x Pre/Post Selectable (CH 1-4 + CH A)

Filter:
1 x VCF Filter
HPF / BPF / LPF
Adjustable Frequency & Resonance
Assignable CH 1-4 + CH A + External Return

X-Link: 1 x RJ45

Headphones:
1 x 1/4"
1 x 3.5mm
Split Cue Monitoring

Channel Faders: 60mm VCA / Replaceable
Chanel Meters: 12 Segment LED
Channel Fader: Curve 3 Types
X-Fader: 45mm VCA / Replaceable / Innofader Compatible
X-Fader Curve Settings 3 Types
MIDI: Clock Send + Receive; Start / Stop / Pause / Tempo Bend (-/+)
MIDI Assignable: Yes (MIDI CC / MIDI Notes)
BPM Detection: Auto / Manual / Tap Tempo
Earth Ground Terminals: x 2
Headroom: 20dB

AC Mains:
100 to 240V
AC 50/60Hz
Consumption 35W max

Mains Adaptor: 3 pin IEC socket with cable clamp
Fuse Rating: 250V AC T1AL 20mm

Height: 4.3"
Width: 12.6"
Depth: 14.8"
Weight: 11.5 lbs.

Notes: The Subsequent 37 is a (2-note) paraphonic analogue synthesizer that builds upon the award-winning design of the ultra-powerful Sub 37 Tribute Edition. Its control panel is home to 40 knobs and 74 switches, placing a vast array of analogue sound-design tools and onboard sequencing options immediately at your command. The Subsequent 37 improves upon its source through the implementation of a number of user-requested sonic and functional enhancements. Each enhancement maintains the magic and character of its predecessor while also providing access to new dimensions of sound and improved playability.

The SUBSEQUENT 37 mixer section has double the headroom of that in the Sub 37 Tribute Edition. This provides access to a new range of classic clean tones in both mono and duo performance modes. Leveraging the mixer's newfound flexibility, gain-staging in the Ladder filter has been reshaped to boost harmonic saturation and analogue compression, resulting in an overall richer low end. Completing the sonic evolution of the SUBSEQUENT 37 is a re-tuned Multidrive circuit that extends well beyond the grit and growl of the original Sub 37.

"We are really excited to incorporate community feedback into the evolution of an instrument. Adding CV interconnectivity was the starting point, but we have also increased the headroom in the mixer and significantly extended the range of Multidrive, giving the Subsequent 37 CV expanded sonic capability and modular control." - Cyril Lance, Moog Chief Engineer

In addition to the sound engine augmentation, each SUBSEQUENT 37 comes with an upgraded keybed for improved playability, a high-powered headphone amplifier strong enough to drive the most demanding headphones, and a software plugin/editor for both Windows and Mac platforms.

Specifications

Sound engine: Analogue
Polyphony: Selectable monophonic or paraphonic (can be poly-chained)
Keybed: 37 note semi-weighted with after pressure
LCD: 128 x 64 pixel LCD with white backlight
Controllers: Pitch bend, mod wheel, after pressure, velocity
Sound sources: 2 variable waveshape oscillators, 1 square wave sub oscillator, 1 analogue noise generator, 1 external input/filter feedback
Oscillator calibration range: 22hz-6.8khz. Note range at 8' = 18 - 116
Glide module: Assign to osc1/osc2/both. Type - LCR, LCT, EXP, gated, legato

Notes: ***Now featuring Assimil8or Software Version 2.0! Available to download here: http://www.rossum-electro.com/products/assimil8or/

The ASSIMIL8OR is a CV/Gate-controllable sampler with eight independent channels. Each channel is not only its own voice, but also has a separate audio output and a gate/trigger and three CV inputs. Given ever get two sample inputs and main outputs. Thus, Stereo Sampling and playback is possible. Mixed operation of stereo or mono is possible and is limited only by the maximum number of eight channels or parts.

The ASSIMIL8OR works with high-quality 24-bit AD and DA converters. Internally, however, sample and bit rate for lo-fi sound can be lowered, the latter is even CV-controllable. The samples can also be otherwise manipulated in many ways. Thus, the phase of a sample via CV or a different sample can be modulated. Likewise, the loop points can be controlled and the sample can be traversed with CV control (scrubbing), whereby wavetable similar effects could be achieved. The following parameters can be addressed via the gate / trigger and CV inputs:

- Pitch
- Level
- Bit Depth
- Phase Modulation
- Pan
- Scrub
- Sample Start
- Sample Length
- Loop Start
- Loop Length
- Release Decay

Samples and presets are stored on an SD card, which is easily accessible plugged into the module front.

Notes: Serious mastering-grade kit. Stereo interface with high-end converters and headphone amp circuit for pristine sound quality. Proper clarity for critical listening.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
The RME ADI-2 Pro FS is a two channel 24-bit / 768kHz AD/DA converter and USB 2 Digital Audio Converter, audio interface and high-end headphone amp with new jitter rejection SteadyClock FS technology.

The RME ADI-2 Pro FS is the most flexible converter available with balanced and unbalanced I/O, two headphone outputs, DSP-based signal processing and RME's latest Steady Clock FS jitter rejection technology. It offers Class Compliant USB compatibility, sample rates up to 768kHz as well as DSD record and Direct DSD playback.

It boasts a raft of analogue and digital I/O, including two servo-balanced analogue XLR/TRS Jack inputs, two separate balanced and unbalanced outputs on XLR and TS as well as two headphone outputs. Digital I/O include optical ADAT, Optical and coaxial SPDIF and AES accessible via a breakout cable.

Furthermore, its Class Compliant UAC 2 USB 2.0 port offers iOS compatibility and is necessary for firmware updates. It can also work as a 6-in / 8-out audio on Mac OSX and Windows via WDM and ASIO.

Using the latest in A-to-D technology the ADI-2 Pro FS offers best possible sound with highest signal-to-noise ratio, super low THD and noise. It supports sample rates up to 786kHz PCM and DSD recording in dual mono design, with 3dB improved signal to noise ratio. Two digital-to-analogue converters are used for the separate stereo outputs. The latest Integrated Sample Rate converter takes care of clocking issues between S/PDIF and AES thanks to RME's latest SteadyClock FS technology.

A high-resolution display shows controls for the ADI-2 Pro FS unique features including DSP effects like 5-band parametric EQ, binaural crossfeed, adjustable loudness filter, selectable AD/DA filters and four analogue reference levels. Furthermore, M/S processing is provided with stereo width control as well as phase loop. The display also shows RME's famous Spectral Analyser and 30-band bi-quad filtered analysis tool.

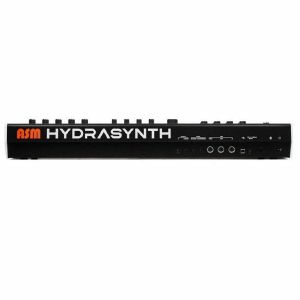

Notes: One of the most exciting new synths of 2020. Extremely high-quality wavetable synth engine with great expressive features like a CS80-style ribbon controller and polyphonic aftertouch. Powerful.

*** New 2.0 Firmware update for all Hydrasynth models - March 2023 ***

This is a free of charge update for all current and new users of Hydrasynth. The biggest news in this update includes:
Expanded memory to 8 banks (Keyboard, Desktop, and Explorer only)
NEW modulation source: VOICE MODULATOR
OSC Bit reducer
LFO quantizer
ENV quantizer
LFO Step Advance
Global FX bypass
Increased Vibrato resolution
New Sustain pedal options including Sostenuto
More LED options
Glissando in glide options
Arp Range goes to 6 octaves
Arp Step Offset parameter
More Rand/Init shortcuts (all STEP LFO steps, Wavescan waves, Voice mod offsets)
Local On/Off saved
......And more!
This is the first major update to the Hydrasynth family in a little, which adds a tonne of new features.


Supplier notes:
The HYDRASYNTH keyboard is both a sound designers dream synth as well as a performing musicians ideal. The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts.

Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.

As for the performance capabilities, The HYDRASYNTH keyboard has our proprietary Polytouch keybed that offers polyphonic aftertouch over each note, giving you the type of expressive control found only in certain vintage synths.

Add to this a 4 octave ribbon controller and ergonomically designed pitch and mod wheels and you have expression and control that is not equaled in any other hardware synthesizer on the market.

The new ASM Polytouchr keybed allows not only the standard velocity and aftertouch found on other keybeds but it also supports fully polyphonic aftertouch.

In recent years companies have been trying to find ways to give the keyboard musician more ways to better express themselves. The problem is that their solution is almost never a keyboard, so you have to learn a new technique to play them.

The Polytouch keybed features a high quality, standard sized keys, so you can start playing it instantly.

The tone generation capability is the heart of any synthesizer.

The 3 oscillators allow you to choose from a selection of 219 single cycle waveforms.

Wavemorphing is a feature usually found on synths with preset wave tables. Creating user wavetables is arduous or downright impossible. Unlike most wavetable synths, the oscillators 1 & 2 have our WAVELIST mode.

This mode allows you to pick and choose 8 waves, from the bank of 219, arrange them in the order you want, and then morph from one to another.

Oscillators 1 & 2 are routed into our MUTATORS. The Mutators allow you to modulate, bend and sculpt the sound in new (and old) ways.

Each MUTANT allows you to choose from the following processes:

FM-Linear - for making classic FM sounds. Choose multiple FM sources, including external inputs.

Wavestack- creates 5 copies of the incoming sound and allows you to set a detune amount.

Hard Sync - This gives you those classic hard sync sounds. Try hard syncing a morphing wavetable for some fun.

Pulse Width - This will pulse width modulate ANY input sound.

PW - Squeeze - This is a different form of pulse width mod that creates a smoother sound.

PW-ASM - this mode divides the incoming wave into 8 slices and allows you to set how much pulse width mod will happen in each section.

Harmonic Sweep - this will sweep the harmonics of the incoming sound.

The Mutant's can also generate its own waveforms in both FM and Sync modes so that you do not have use another oscillator....Of course the routing is flexible so you can choose the other oscillators as mod sources if you like.

The 3 Oscillators are fed into a mixer along with the Noise generator and Ring Modulator.

The Mixer allows you to mix levels as well as pan the input source.

There is a balance control that allows you to choose how much signal of each source is routed to filters 1 and 2.

The filters can be set to be parallel or series for ultimate flexibility.

If oscillators and tone generators are the heart of a synthesizer, the filters are the soul.

The Hydrasynth has two filters that can be configured in series or parallel.

The first filter has 11 different filter models, giving you multiple options for tailoring your sound.

The second filter is a 12db per octave has a continuous sweep from Low pass to bandpass to high pass, similar to the way the classic SEM filter worked.

5 DAHDSR Envelopes.

An advanced sound engine needs plenty of modulation sources. Our 6 stage envelopes feature Delay, Attack, Hold, Decay, Sustain and Release stages.

The time settings for the stage can be set in seconds or in time divisions, giving you envelopes that play in
sync to your song.

You can also loop the envelopes to create LFO's whose shape can be voltage controlled in the modulation matrix.

The modulation capabilities on the Hydrasynth are endless.

With 32 user definable modulation routings, you will have plenty of ways to use the 29 modulation sources and 155 modulation destinations.

Almost everything in the synth engine can be a modulation destination including the effects and arpeggiator.

The Modulation matrix points themselves can also become modulation destinations.

Notes: Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:

12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.
The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Up and down, back and forth
6 Envelopes, 6 LFOs and many more are just waiting for being used as sources in the 40 slots of the Modulation Matrix. Each slot has one additional control amount. Modulations can be directed to almost every numerical value in Iridium. All sources and destinations can be used as many times as desired until the Modulation Matrix is full. If you ever happen to run out of LFOs or Envelopes, you can use the Komplex Modulator for generating a custom shape LFO or Envelope.

Even though Iridium features a staggering amount of parameters to control, everything is organized in a logic structure which is easy to master. The major controls have their own dedicated knob, while the rest is accessible through the touch screen and the encoders around. There are no long menus keeping you from doing what you had planned. Instead, you will find a workflow which you will soon miss on other synthesizers.

Embedded in the front panel, a 4x4 silicon pad matrix invites you to launch notes, chords, arpeggios and sequences with up to 32 steps for notes and multiple parameter lines. Direct access to the parameters is granted by the seven encoders to the left and the right hand side of the touch screen.

Iridium's large color touch screen keeps you informed at all times. Upon moving a knob, Iridium gives you an optical feedback of your changes in real-time. Filter curves move, Particle grain sizes change, Envelopes warp and much more:

Komplex Modulator curves can be drawn with your finger
Envelopes show at which point the voices currently are
Wavetables are displayed in comprehensive view modes
VU meters show which voices are used and the individual voice levels
Different Analyzers show the audio signal at different points

Two Audio Outputs allow you to listen to Iridium, while two Inputs allow Iridium to process external signals. 4 CV inputs plus Gate In and Trigger In are ready to forward external signals to the Mod Matrix. Furthermore, Clock In and Clock Out will get your gear in sync. MIDI connections can be made through USB and DIN MIDI. Iridium is also equipped with a USB Host port for MIDI devices. This port also handles data exchange, in addition to the MicroSD card slot.

Once again, Waldorf have underlined their status with a new and exciting synthesizer.

Notes: Latest incarnation of Buchla's legendary modular synth. Massively creative with incredible sound and history stretching all the way back to the 1960s.

Supplier notes:
The evolution of the legendary modular analog synthesizer by Don Buchla. The Buchla Easel Command is the newly updated 208C in a standalone desktop form with MIDI and CV control.

Buchla's own Joel Davel led the charge to create a new version of the legendary Music Easel instrument with more modular flexibility and independence, while also providing the means to easily interface with more devices, such as the various DAWs like Ableton and MIDI controllers, including the very expressive Sensel Morph. It's still fully analog in its default configuration and provides the unique and exquisite Buchla experience with greater functionality at a lower cost.

Notes: Co-designed by Richie Hawtin, the Model 1 is an obvious choice for DJs who want great sound and creative performance options. Easily one of the best high-end mixers on the market.

Supplier's Notes:

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system. It's a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

Features:
2 stereo sends
2 stereo returns
3 high performance phono preamps
3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.
Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Precision Sculpting EQ
Contouring low & high pass filters
Analog overdrive
Two independent Cue systems, A and B.
Mixer Link, allows multiple mixers to be linked together
Balanced Mix Bus
Master high & low pass resonant filters
Three-band master EQ
Two-band Booth EQ
100% analog

Notes: Gorgeous experimental system based around Make Noise's brilliant Maths, Morphagene, QPAS and Mimeophon modules. Capture and process sounds in stereo and warp them into new dimensions.

Supplier's Notes:
The Tape & Microsound Music Machine music synthesizer is a small stereo system devoted to capturing external sounds and sculpting them into new ones. The Morphagene operates as a recorder that also allows the artist to mulch, layer and rearrange the sound and manipulate the speed and direction of playback. The Mimeophon repeats sounds and subjects them to further manipulation, and when combined with the Quad Peak Animation System (QPAS), incredible stereo sculpting of the spectrum. The Wogglebug and MATHS work to animate these effects, and the XOH provides a final stereo mix and line level or headphone outputs for monitoring and/or performance.

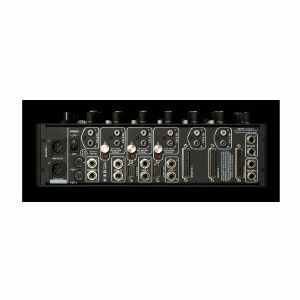

Notes: Four-channel version of Richie Hawtin-designed Play 1 mixer, engineered by music tech royalty Andy Rigby-Jones. Immense sound quality and performance features, including analogue filters, overdrive and DualCue system for back-to-back sets.

Supplier's Notes:
With MODEL 1, PLAYdifferently hit the apex of pure analogue DJ mixer design. MODEL 1 brings performance to an ultra-compact 4-channel design, ideal for home studio use, or as the ultimate tour-able analogue mixer- so you can take your analogue core wherever you go.

Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin with feedback from artists, clubs and engineers, MODEL 1.4 features the same uncompromising approach to build quality, precision and detail that set MODEL 1 in a class of its own.

MODEL 1.4 can be used standalone or paired with a MODEL1 using unique mixer-link functionality to deliver an unrivalled 10-Channel Live mix experience.

Technical specifications:

Maximum output level: +28dBu Balanced, +23dBu Unbalanced
Output Impedance: 50R Balanced, 68R Unbalanced
Residual Noise: -100dBu Un-weighted, 22Hz to 20k
Dynamic range: > 112dB
Frequency Response: 20Hz - 40kHz +0/-2dB
Distortion (THD+N): 0.008% Line In to Mix 1 out, 0dBu Unity Gain
Inter-channel Crosstalk: < -100dB
Left/Right Crosstalk:-80dB 1kHz
Power consumption: 45W maximum
Weight: 5.00kg
Dimensions: L 368mm x W 248mm x H 111mm

Notes: Brand new for 2021, premium rotary mixer from Japanese audiophile specialists ARS. Two-channel design with three-band EQs and three-band master isolator.

Supplier's Notes:
ARS MODEL 1100 DJ Mixer is a Japanese made, 2ch. rotary mixer with a 3-band hybrid isoeq: Hi-eq Mid-eq Low -Iso on each channel.

This 2 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.

Potentiometer and Switch are All ALPS .

A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.


It is designed with purist ideals with only essential features.

ARS 1100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel, aand 3band Iso on the master.

The Master Isolators can be boost of cut from +18db.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-1100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.


Frequency Response: +-1dB 20Hz-20Khz


Input: 2 x Phono : 47K Ohm /2x Line: 20K Ohm


House Output: RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm


Booth Output: RCA Unbalanced Impedance 1K Ohm/ XLR Balanced Impedance 100 Ohm


Tape Output: RCA Unbalanced Impedance 1K Ohm


Effect Loop: RCA Unbalanced Impedance 600 Ohm


Effect Return: RCA Unbalanced Impedance 600 Ohm


Send Output: RCA Unbalanced Impedance 600 Ohm


Retrun: RCA Unbalanced Impedance 20K Ohm


Headphone Monitor Trim: Cue-Mix-Pgm Trim


Power Consumption: 25w


Power Requirements: US-115V/EU-230V(Selectable) 50/60Hz


Dimensions : (W)260 x (H)250 x (D)100 mm


Front Panel Colour: Black

Notes: Very limited numbers for this boutique audiophile mixer. Two-channel rotary design with hybrid three-band iso-EQ on each channel. Top quality sound and build.

Supplier's Notes:
ARS MODEL 1100 DJ Mixer is a Japanese made, 2ch. rotary mixer with world's first 3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 2 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.

Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended- it is designed with purist ideals with only essential features.

ARS 1100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-1100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Frequency Response: +-1dB 20Hz-20Khz
Input: 2 x Phono: 47K Ohm /2 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response: 3band hybrid isoeq 1-2Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.
Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 20w
Power Requirements: US-115V/EU-230V(Selectable)
Dimensions: (W)260 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: A unique approach to FM synthesis in this updated version of Kodamo's ludicrously powerful EssenceFM. Up to 300 voice polyphony, hugely powerful touchscreen editing and stereo effects.

Supplier notes:
The EssenceFM is a powerful and easy to use FM synthesiser, allowing you to explore the endless soundscapes offered by FM synthesis. With a super-responsive touchscreen, assignable knobs and workflow optimized for sound design, creating rich and unique sounds is easier than on any other FM synthesiser.

The EssenceFM engine allows to create ridiculously powerful sounds made of more than 6 operators. That's why it's been given 300 voices of polyphony, you get the easy-to-program 6 op FM synthesis and the ability to layer many voices to create huge, rich-souding instruments.

There are 1800 operators and 4200 envelopes running at the same time, more than you will ever need.

This synth is the result of Kodamo's efforts to create the best user interface to interact with FM synthesis. No endless menus, no weird key combinations, no complex structure to remember. Everything is displayed on screen, every element is editable by pressing on it.It requires some trial and error to find the perfect sound, and that exploration process is fun only when the interface doesn't work against you. The EssenceFM is full of small details that makes workflow better: 1024 undo/redo steps while editing, copy/paste on every element, clear navigation using 4 modes and a breadcrumb, real-time envelope level display on the operators and much more. All that makes for a powerful and enjoyable synthesiser.

What you can do with it:
Create your own FM algorithms by drag and dropping operators on the touch screen. An almost infinite number of configurations is possible
Layer up to 128 voices per patch, each consisting of 6 operators, for incredibly rich sounds
Draw your custom waveforms on the touch screen to use them as oscillators or LFOs
Thicken the sound with the built-in effects
Take advantage of its 16 part/300 voice multi-timbrality to create full songs with it
Use it to make analog-like sounds with the built-in resonant filter
Connect it to your audio recording gear and effect modules in many different ways with the four balanced stereo outputs
Explore FM synthesis in the most convenient way possible with the Undo-Redo buttons, allowing for any action to be undone
Try microtunings, layer splits, round robin, MPE, and many other advanced features.

Package Contents:

EssenceFM synthesizer (MKII version)
Printed user manual
2x 3U 19" rack mount brackets
4x screws
Universal (100-240V) AC adapter
IEC power cable
2x rubber strip

Review: This is a new release of the Groove Diggers series, the only work released in 1977 by 8-members funka soul band "Moonpie" based in Nashville, USA. Aused to be known as just collectors items but you can listen to high quality sound with skillful performance and various arrangements from this record. The cover take of "Stevie Wonder / Sunshine Of My Life" is really awesome.

Notes: Typically creative stuff from Soma Lab. Four channels of analogue drum synthesis, unique looping trigger generators, pseudo-random 'Shaos' generator and DSP-based effects.

Supplier's Notes:
Pulsar-23 is a multi-functional analog synthesizer and generator of complex rhythmic patterns.

The Pulsar consists of 23 different modules, including four flexible sound generators with completely different structures, four envelope generators, four looper-recorders, a clock generator with dividers, a controlled chaos generator, an LFO, a two-channel CV-controlled effects processor, distortion, two controlled amplifiers, an inverter, a controlled inverter and two controlled analog switches. In addition to these 23 main units, the Pulsar also contains 13 auxiliary units, such as a four-channel MIDI to CV converter, a noise generator, four attenuators, two dynamic CV generators with sensory control, two impulse converters and single passive electronic components for live circuit bending.

Pulsar-23 can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage. The Pulsar functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination. Additionally, Pulsar offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations.

Pulsar continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes in a special HQ bag with 30 alligator clips cables and PSU.

Notes: *** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

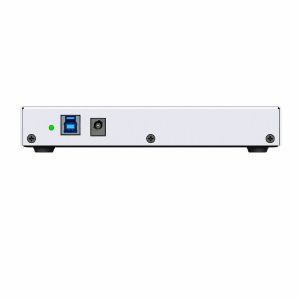

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format. Designed for use in studio and live recording, the UCX II continues RME's tradition of producing powerful and flexible interfaces for the professional audio market, packing the kind of connectivity and features into a half-rack size unit that is often spread over two - or even three - 19 inch panels.

With up to 20 channels recording and 20 channels playback; RME's stellar SteadyClock FS digital clocking technology; high performance microphone inputs; TotalMix FX mixing and routing software (complete with Parametric EQ and Dynamics processing on every channel, plus Echo and Reverb sends); stand-alone hard disk recording to external USB hard drives or pen drives via 'DURec' (Direct USB Recording); MIDI I/O; a powerful headphone output; and full stand-alone operation, the Fireface UCX II excels with the highest feature to space ratio ever from an RME device.

Developed in time to celebrate the company's 25th anniversary, the RME Fireface UCX II represents the culmination and refinement of 25 years of digital audio innovation.

Throughout its 25 year history, RME has been fully committed to a principle of flexibility - the more flexible a product, the more easily it can be adapted to new requirements. For company founder Matthias Carstens, this lies at the heart of RME's success: "The Fireface UCX II makes us proud and enthusiastic as it represents a natural evolution of our product range."

"Boasting up to 20 recording and 20 playback channels, SteadyClock FS, high-performance microphone inputs, built-in parametric EQ, USB direct recording plus full stand-alone functionality, the brand-new Fireface UCX II truly represents the essence of freedom, flexibility, and passion. At present, no existing audio interface offers more connectivity and functionality in a half-rack package."

The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O.

The RME Fireface UCX II is the first half-rack interface from RME to feature RME's Direct USB Recording (DURec) functionality. Previously only found on RME's Fireface UFX, UFX II and UFX+, any of the Fireface UCX II's input or output channels can be recorded directly to a USB storage device - in any combination, up to and including all 40 channels simultaneously - via the dedicated USB port found on the back panel of the device.

Powered by the integrated DSP, DURec also enables the Fireface UCX II to be used for standalone recording and playback (i.e. without the need for a computer). Suggested applications include creating instantaneous backups of studio, live and rehearsal recording - acting as a fail-safe against a computer hardware failure - as well as for strand-alone field recording, or for use in virtual soundchecks (using DURec for playback of a previous night's live show recording).

The Fireface UCX II also features a Class Compliant / Plug 'n' Play mode, enabling the interface to be used for high-quality, mulit-track recording with an Apple iPad, and providing iPad users with a full set of professional analogue I/O connections.

Additionally, the optional TotalMix FX for iPad app adds full control over the TotalMix hardware mixer, giving users the ability to create, store and load complete mixes directly from the iPad.

Most audio interfaces are traditionally designed with what is called 'AC-coupled outputs', where capacitors are used to filter out any extreme low frequencies.

Whilst these frequencies are generally considered undesirable for audio - eating into headroom and potentially causing damage to other equipment - one instance where DC-coupling remains desirable is the world of modular synthesizers, where static or slow-moving signals are used for control over various parameters such as pitch note values or LFOs.

All of the Fireface UCX II's line-level outputs are fully DC-coupled, allowing for the sending of control voltages (CV) or Gate information to modular synthesizers (such as the popular Eurorack and Moog/MOTM/Synthesizers.com formats) and other studio hardware.

General Specifications:

Power supply: external power supply
Typical power consumption: 13 Watts
Current at 12 Volt operating voltage: 910 mA (11 Watts)
Dimensions incl. rack ears, full depth (WxHxD): 265 x 44 x 155 mm (10.5" x 1.73" x 6.1")
Dimensions without rack ears, body depth (WxHxD): 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
Weight: 910 g ( 2.0 lbs)
Temperature range: +5- up to +50- Celsius (41- F up to 122-F)
Relative humidity: < 75%, non condensing

Notes: The ARP 2600 is arguably the most iconic and recognizable synthesizer of all time. Having been used in countless records, film scores, TV shows and game soundtracks since its appearance from the 70's through to today, the ARP 2600's sound remains an essential part of the music world.

The new ARP 2600 M delivers the sound admired around the world, in a more compact and portable format and including added features that make it the ideal incarnation of this historic synth.

When the ARP 2600 FS was announced in January 2020, it quickly became a phenomenal success with musicians all over the world recognizing the faithfulness to the original ARP 2600.

The ARP 2600 M is around 60% the original size, making it lighter, more portable and easier to place and use in a studio. It integrates the same analogue circuitry and components as the ARP 2600 FS, thus faithfully reproducing the characteristic ARP sound.

The ARP 2600 M is built in Japan with the same care and extraordinary quality standard as the ARP 2600 FS, and uses the same analogue components to accurately reproduce the sound and feel of the original.

The Spring Reverb has been re-engineered and adapted to the new size body to the same lush effect.

The ARP 2600 M comes with a dedicated Carry Case that not only protects your instrument, but also makes it easier to transport, thanks to its custom casters with special anti-shock damping technology.

There is also enough space to carry other gear together, like your favourite volca, SQ-64 or MIDI controller!

It is not by chance that the ARP 2600 has been so extremely popular to this day.

More than a synthesizer, the ARP 2600 M is a complete sound design studio. Even today, the ARP 2600 stands as a bridge between the individual elements of modular synthesis and the immediacy of a production / performance instrument. Included are an ample supply of oscillators, envelopes, a filter and amplifier - all of the building blocks of analogue synthesis. But the ARP 2600 M goes even further, with a spring reverb tank and even a pair of built-in monitor speakers. Also present is much of the versatility of a vintage modular system, including a ring modulation, lag and voltage processors, an envelope follower, audio preamp, a clock-able switch, noise source, a sample-and-hold module, signal inverters, an auxiliary mixer, and even a set of parallel-wired/multi jacks.

The new ARP 2600 M is not only faithful to the original, it also includes an array of added features that will make it even easier to use:

Plug and play: Connect any class compliant MIDI controller such as a KORG microKeys, nanokeys or SQ-64 to one of the ARP 2600 M's USB ports (USB-A and USB-B) and automatically get full control of your instrument!

Resized: The new size makes it easier to visualize your patch and also allows you to use shorter patch cables

Filter Choice: Two types of filters from two versions of the original ARP 2600(4012 type, 4072 type)

More MIDI: 5-Pin DIN plug MIDI IN added

Modern Control: Pitch-bend, Modulation, Portamento ON/OFF and Portamento ON/OFF can be controlled through MIDI CC messages (USB/DIN MIDI)

Normalized voltage: The threshold of the trigger signal required to activate the ADSR through the S/H GATE JACK has been reduced from 10V to 5V, making it much easier to use in combination with other gear such as volcas or Eurorack modules

Tweaked Parameters: Improved Attack and Release time ratios

Easy Connections: L/R Stereo Output Jack (instead of XLR)

Speakers turn automatically off when using headphones- improved, smoother sliders

Celebrating the rebirth of this iconic synth, the first 1000 units will come with a special colour road case, as well as a KORG microKEY2-37 so you can start playing right away!

The ARP 2600 FS comes with a diverse variety of music software from Izotope including "Ozone Elements" which lets you not only create songs but also master them using AI, "Skoove" which will help you improve your keyboard playing skills, "Reason Lite" DAW software, as well as software synths from KORG and other brands.

In other words, the moment you get your hands on this synthesizer you'll have a variety of tools to help you take your music to the next level.

Notes: The top dog of the Hydrasynth range, featuring a dual synth engine offering 16 voices (double the standard model) and a larger six-octave keyboard. Serious synth power with great wavetable sound.

*** New 2.0 Firmware update for all Hydrasynth models - March 2023 ***

This is a free of charge update for all current and new users of Hydrasynth. The biggest news in this update includes:
Expanded memory to 8 banks (Keyboard, Desktop, and Explorer only)
NEW modulation source: VOICE MODULATOR
OSC Bit reducer
LFO quantizer
ENV quantizer
LFO Step Advance
Global FX bypass
Increased Vibrato resolution
New Sustain pedal options including Sostenuto
More LED options
Glissando in glide options
Arp Range goes to 6 octaves
Arp Step Offset parameter
More Rand/Init shortcuts (all STEP LFO steps, Wavescan waves, Voice mod offsets)
Local On/Off saved
......And more!
This is the first major update to the Hydrasynth family in a little, which adds a tonne of new features.


Supplier's Notes:
The ASM Hydrasynth Deluxe is the new flagship Hydrasynth. Offering a dual-engine setup with a total of 16 voices plus an all new 73-note keybed featuring ASM's much sought after PolyTouchr polyphonic aftertouch functionality, clearly in a class of its own. With essentially two Hydrasynths in one instrument, KeySplit and Dual voice mode patches with 8 independent voices each are possible. You also have separate balanced stereo audio outputs for each of the two parts. The easily accessible 4 octave ribbon controller adds for truly expressive playing. The Hydrasynth Deluxe of course offers CV/GATE I/O for interfacing to modular and other voltage controlled synths. There's a ton of potential for sound creation, using ASM's WaveScan oscillators together with the Mutator waveshaping section and user configurable filters. A plethora of LFO's and Envelope's plus Insert and Master Effects makes this a dream sound creation tool and quite possibly the ultimate synthesizer and controller combo for your rig.

Tech Specs

Type: Polyphonic Wave Morphing Synthesizer
Sound Engine Type(s): Wavescan
Analog/Digital: Digital
Number of Keys: 73
Type of Keys: ASM POLYTOUCH Polyphonic Aftertouch Keyboard, On/Off Velocity-sensitive
Other Controllers: Ribbon Controller, Pitch Bend, Mod Wheel
Polyphony: 16 voices (Full/Layer/Split)
Number of Presets: 1024 Single Programs, 1280 Programs in Multi (Upper/Lower)
Number of Multis: 640 Programs
Oscillators: 3 x Wavescan oscillators (219 Waveforms), 4 x Mutator wave shapers (8 Types), Noise (7 Types)
Mutators: 8 Types (FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, Hard Sync, PhazDiff)
Noise: 7 Types (White, Pink, Brown, Red, Blue, Violet, Grey)
LFO: 5 per Voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock
Envelopes: 5 per voice, Tempo syncable, Variable trigger sources
Filter Types: 1 Multimode Filter (16 types) and 1 Variable LP-BP/Notch-HP filter, series or parallel routing
Filters: Filter 1 (LP Ldr12, LP Ldr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel), Filter 2 (LP-BP-HP, LP-Notch-HP)
Effects: 9 Insert Effects, 5 Delays, 4 Reverbs
Effects Types: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb
Arpeggiator: 8 types (Up, Down, Up&Down, Up/Down, Order, Random, Chord, Phrase)
Other: Mod Matrix (32 slots), Macro Controllers (8), Favorites (32), Randomizer (Patch and Module), MPE Compatibility, Warm Mode, Microtuning
Audio Outputs: 4 x 1/4" Balanced (L/Mono Upper, R Upper, L Lower, R Lower)
Headphones: 1 x 1/4", 1 x 1/8", Separate volume control
USB: 1 x Type B
MIDI I/O: In/Out/Thru
Pedal Inputs: 2 x 1/4" (expression, sustain)
Other I/O: 2 x 1/8" Inputs (Mod 1, Mod2), 5 x 1/8" Outputs (CV, Gate, Mod1, Mod2, Clock)
Power Supply: 12V DC switchable power supply
Additional: Utility shelf
Height: 3.62" / 9.2cm
Width: 44.45" / 112.9cm
Depth: 13.62" / 34.6cm
Weight: 29.33lbs / 13.3kg
MPN: HSLX

Notes: A true powerhouse of a synth, packaging the Quantum synth engine into a more manageable four-octave design. Five synthesis modes, powerful stereo filters, performance features and outstanding playability.

Supplier's Notes:

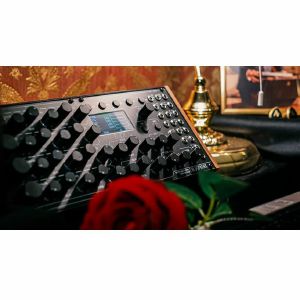

Waldorf Iridium has made the impossible possible. The mighty synth engine from Quantum is now available in a compact form. Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:
12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.

The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Specifications
16-voice polyphony, duo-timbral
Compatible with the Waldorf Quantum synth engine

3 Oscillators
Oscillator Modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM at audio rate)

3 Stereo Filters per voice
True stereo path
Dual Digital Filter:
Two filters with independable modes
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Digital Former:
Filter models from Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filter
Bitcrusher
Drive
RingMod
StateVariable mode
Analyzer displayed in Filter view
Filter curve moves when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels

Modulators:
6 Envelopes
6 LFOs
Komplex Modulator (LFO/Envelope combination with user-definable shape)

Mod Matrix:
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full

Pads:
4x4 silicon pad matrix with RGB backlights
Pads can play notes, chords, arpeggios and sequences
Latch mode

Performance features:
Arpeggiator
Step sequencer with up to 32 steps for notes and parameters
Favourites screen for quick patch recall
Onscreen Mod Wheel, Pitch Bend and Aftertouch

Screen:
Industrial-grade highly responsive touch screen

Patches:
Over 1000 factory sounds
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum can be loaded and vice-versa
Category filter for patch list
2GB user sample flash memory

Connections:
2x TS output
2x TS input
Headphones output with Gain control
DIN MIDI In/Out/Thru
USB MIDI
USB host for storage and MIDI devices
MicroSD slot
Kensingtonr lock

CV connections:
4 CV inputs plus Gate In, Trigger In, Clock In, Clock Out
Inputs can be used as modulation sources in the Mod Matrix

Overall:
Sturdy metal case with aluminium knobs

Dimensions: 440mm wide by 305mm depth by 85mm height (including controls)
Weight: 5.4kg
19" rack assembly parts available

Notes: Upgraded to broadcast-ready specification for 2022, ARS's flagship Model 9100 is a thing of beauty. True hand-built Japanese audiophile quality, available here with wooden end cheeks.

Supplier's Notes:
Model 9100B Music Mixer

4 channel table top mixer

Model 9100B (broadcast mixer) Music Mixer Wood TYPE (Headphone Monitor Trim: Cue-Mix-Pgm special version)

ARS Model 9100B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master. Potentiometer and Switch are All ALPS .

A long time in the development phase this mixer is a beautiful example of Japanese hand made precision workmanship- highly recommended.

It is designed with purist ideals with only essential features.

ARS 9100 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso on the master
.
The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Specifications

Frequency Response: +-1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Booth Output:RCA Unbalanced Impedance 600 Ohm/ XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Retrun: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch /Low-ISO /MID-EQ/HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 25w
Power Requirement: US-115V/EU-230V(Selectable)
Dimensions: (W)306 x (H)250 x (D)100 mm
Front Panel Colour: Black

Notes: Arguably the best experimental drum synth in the world. Unique semi-modular, 'organismic' design with over 100 patch points and extensive controls for the four drum channels. Immense.

Supplier's Notes:
PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analogue FX processor.

The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.

Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes in a special HQ bag with 30 alligator clips cables and PSU.

Specifications

Range of input and output CV and audio signals: 0 to + 10V
(Pulsar inputs are protected against overloads and can receive signals in the range of -20 + 20
volts for a long time without problems)
Main output voltage swing: 2V
1/4 inch jack: 7 total
Mini-jack (for Eurorack connection): 8 total
MIDI input: standard DIN socket
Headphone output: 3.5 mm mini-jack
Supply voltage: 12 volts (plus in the center)
Consumption current: 0.3 amperes

Only a well-stabilized power supply must be used! If the supplied PSU is out of order, it is recommended that you modern switch mode power supplies with excellent stabilization for replacement.

Watch the polarity!

Weight: 4 kg
Dimensions: 380 x 280 x 80 mm

What's in the box

Pulsar-23
Power Supply 12V
20x65 cm patch cables with alligator clips
10x30 cm patch cables with alligator clips
Protection and transportation soft bag

Notes: Updated version of the ground-breaking synth, sampler and sequencer. Better than ever, with legendary sound quality and portability.

Supplier's Notes:
The beauty of evolution.

Louder, thinner and 100 times better.

Introducing the all new OP-1 field. Injected with more than a decade of ideas, refinements and improvements. Just to mention a few: stereo throughout the whole signal chain, Bluetooth MIDI, USB type-C, a new speaker system with a passive driver for detailed, fat and loud sound, a massive 24 hour battery life, multiple tapes and recording formats, new great sounding reverb and the 'dimension' synth engine, an all glass, flush, high resolution display. The graphics have also been meticulously reworked, screen by screen.

Reworked, refined, reborn.

Think of OP-1 field as the natural continuation of its predecessor. Updated with the latest technology, improved design and finely tuned with professional musicians, recording artists and sound designers in mind. Higher quality in all aspects, from its circuitry to connectivity and flexibility, it's tailor made for professionals in the field.

The new stereo sample engine is just one of the features that takes the OP-1 field to a higher level. With increased sampling time up to 20 seconds and dual layer mode for instant mixing of the a and b channels or via an assigned LFO.

Four new recording formats: Studio 4-track, vintage 4-track, porta and disc mini.
All with their own unique characteristics and graphics. Now with multiple tapes or discs, up to 8 in total.

If it feels thinner, it is.

By lowering the aluminium body around the keyboard, the new OP-1 field feels lighter, thinner and more precise. with 2k moulding Teenage Engineering have also managed to fit a dual 2.4 GHz antenna system inside the aluminium body.

The back is warm, velcro and bass.

Two soft velcro rings have been added on the back for fastening covers and accessories. Perhaps you want to stick your op-1 field on top of your full size keyboard, or slap it on a guitar? Use the included adhesive looped back and start experimenting. On the right you'll find an additional passive loudspeaker for hugely improved bass. And for a 'no-more-cold-metal-on-your-lap' experience, the aluminium body has been folded in a warm, soft touch, hard cover.

The first accessory out using the velcro rings is the Bill Amberg leather wrap that attaches to the back and wraps around the op-1 field and locks around the encoders.

Dimensions: 28.8 cm x 10.2 cm x 2.9 cm

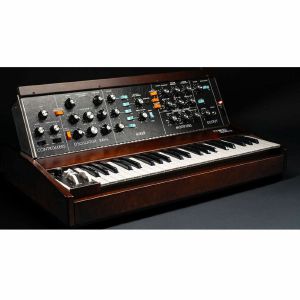

Notes: Originally released in 1970, Minimoog Model D was the world's first portable synthesizer and served as the archetype for all electronic keyboards that followed. The all-analog instrument gained acclaim for combining the colossal sound of the 1960s Moog modular synthesizers with the accessibility of pre-wired modulesimeaning that it could be played instantly and intuitively with no patch cables required. It was quickly embraced by a diverse roster of performers, with artists like Herbie Hancock, Kraftwerk, Rick Wakeman, Sun Ra, Piero Umiliani, Giorgio Moroder, Bernie Worrell, and Gary Numan all shaping unique sounds and forging new musical genres using the instrument.

More than a half-century since its invention, Minimoog Model D is back in production at the Moog factory in Asheville, North Carolina. An exceptional sonic tool and one of the most beloved and iconic synthesizers ever designed, it returns to the hands of synthesists of all kinds and serves as inspiration for the next generation of electronic musicians.

The three-oscillator, monophonic, analog synthesizer is securely housed in a locally sourced Appalachian cherry cabinet and hand-finished aluminum chassis. Sounding as vibrant and deep as ever, its legendary low-pass ladder filter, powerful oscillators, and rich saturating mixer retain the exact component placement and through-hole design of a 1970s-era Minimoog Model D.

While no changes have been made to the original sound engine or audio signal path, the 2022 Minimoog Model D includes a series of popular functional modifications that expand this legendary instrument's sonic capabilities. These modifications include a dedicated analog LFO with triangle and square waveshapes, a premium Fatar keybed with velocity and after pressure available via top panel CV jacks with onboard trimpots, MIDI integration, and a mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob. And, for the first time in its history, the Minimoog Model D now features a spring-loaded pitch wheel with center deadband, allowing for improved playability and wild performance flourishes. This newest edition also includes updates to the MIDI functionality, allowing for improved modern studio integration.

SPECS
NUMBER OF KEYS
44
KEYBOARD RANGE
F0 to C4
KEYBOARD ACTION
Synthesizer (Spring)
NOTE PRIORITY
(Low, High, Last): User Selectable
SOUND SOURCES
3x Oscillators, Noise Generator and External Audio Input
OSCILLATOR FREQUENCY RANGE
0.1 to 20 kHz (In Six Overlapping Ranges)
OSCILLATOR STABILITY
(short term) > 0.25 %
OSCILLATOR WAVEFORMS
Triangle, Triangle-Sawtooth (Oscillator-1, Oscillator-2), Reverse Sawtooth (Oscillator-3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse.

Notes: A true MIDI powerhouse, based around a 128-pad matrix and 16-track MIDI sequencer with slick programming workflow and Ableton-style pattern mode for live performance.

*** Firmware update- February 2025 ***

HapaxOS2.10

Squarp are very pleased with this version, which is both creative and packed with new features, as well as numerous bug fixes that make HAPAX more stable than ever.

Up to 16 pattern per tracks
Arranger fonction
Mix / mute performance mode
Pattern follow actions
Midi import / export
Multi track recording
Track latency compensation
STEP-INPUT REC mode (SH101 style)

Supplier's Notes:
Professional standalone sequencer

Genuine centerpiece of a setup, it offers every tool needed to compose songs in the studio and perform them on stage. From vintage to modern synths, from modular systems to your favourite DAW, Hapax can sequence and synchronize all your gear, while bringing you carefully crafted tools, designed for maximizing creativity.

The midi powerhouse.

Up to a million notes and events

16 tracks per project, 8 patterns per track.

Thanks to its dual-processor architecture, Hapax can record and transform tremendous amounts of data in no time, without a hitch.

Express yourself.

MPE compatibility

Hapax is the first hardware sequencer that fully supports MIDI Polyphonic Expression. Record the finest gestures, slides and articulations of your playing, without compromising quality.

Around the clock performance.
Dual-project architecture



Hapax can handle two separate and independent projects, that can be played simultaneously. This lets you compose or load an entire project while the first one is already playing, enabling endless sets and seamless transitions.

Dawless is more.

Hapax offers broad connectivity options for perfect integration in any setup.

Adaptive workflow.
Several ways to write music
Writing a melody: use a polyphonic or MPE track and take advantage of the advanced step sequencer to quickly lay down notes or edit your live recording.

Composing a beat: control up to 8 different instruments with a single track. The drum sequencer is tailored for very easy rhythm writing and jamming.

Real-time midi effects.

Bring your synths to life

Hapax embeds multiple real-time, polyphonic, non-destructive midi effects, as well as project-wide assignable LFOs. Each parameter of these effects can be automated in the dedicated mode, and processed in the mod matrix, which provides even more ways of routing and modulating.

Powerful composition tools.

Algorithms

Powerful tools for offline note transformation and generation, right at your fingertips. Harmonically invert your motive, generate a controlled-random counter-melody, slowly ramp up the velocities, emphasize every fifth 8th note...

Hi-res recording

Hit the red button, and record from the encoders and 128 pads of Hapax, external midi instruments (included MPE controllers) or any incoming analogue signal, at a high resolution of 192 ppqn. Looper style recording, count-down and metronome options, punch-in mode, you'll certainly find the options that best suit your workflow.

Time elasticity

Each track has an elasticity value which changes its playback speed, expressed in percentage of BPM. Quickly double or halve the speed of a track, or create slightly shifted tracks that will slowly drift out of phase with each other.

Fluid editing

Using hardware should never get in the way of creative flow. The undo/redo button lets you go back in time as needed, thanks to its extensive history. Additionally, the snapshot function enables you to save the state of a pattern and recall it with a single press. Together with dedicated copy, paste and delete buttons, Hapax offers a complete toolbox for the prompt editing of your tracks.

Harmony, simplified

For fast and intuitive chord building, the chord live mode brings harmonic capabilities to anyone, with or without deep theoretical knowledge. With its colourful interface, the chord mode displays a synesthetic melding of hearing, vision and touch.

Simple by design.

Trimmed to perfection

Squarp designed Hapax from the ground up, deconstructing everything you thought you knew about sequencing- aiming for a high-end product, with dual arm processors for computation power and a rugged yet minimalist housing.

As music-making should remain an enjoyable process, dedicated buttons were over key combinations and imagined a clear-cut interface as well as a simple architecture. Squarp have striven to minimize the importance of screens for live performing, but the dual grayscale display helps keeping track of things in a studio context.

Hapaxos
Evolving firmware.
The Hapax Operating System has been written with extra care, prioritizing stable and fast operations. New features and parameters will be added regularly.

Specifications
Model name: Hapax
Hardware: 128 RGB MATRIX pads
52 clic pads
9 sturdy clickable encoders
2 OLED greyscale displays
SD card for saving projects
CPU: dual ARM design
RAM: 32MiB
Housing: machined aluminium 2mm
Housing (back): unibody ABS

Sequencer
Dual Sequencer (2 Projects)
16 tracks per project
8 patterns per track

Input
2× midi in (DIN + TRS)
2× CV in [-5V to +5V] (16bit)
Stereo pedal (footswitch)

Output
4× midi out (3× DIN + TRS)
4× CV out [-5V to +5V] (16bit)
4× GATE out [+5V]

Bidirectional I/O
USB Host (link a controller)
USB Device (link a computer)
Power supply: 15V, 1.2A, 18W (included)
Dimensions: 358 × 206 × 48 mm
Weight: 1.855 kg

Notes: Based on the Digiface Dante but with the added benefit of low-latency Ravenna audio-over-IP, the Digiface Ravenna offers 128 Ravenna channels and 64 MADI channels.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's Notes:
The Digiface Ravenna is a lightweight, portable audio interface, based on the proven Digiface Dante equipped with a RAVENNA module developed by DirectOut and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.

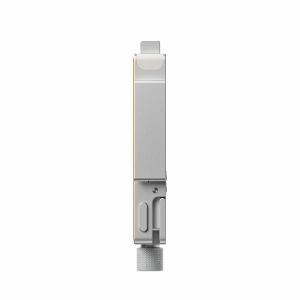

Mobile RAVENNA Solution via USB

The combination of RME's renowned drivers (Mac/Windows) and DirectOut's RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

RAVENNA & MADI

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

TotalMix FX and TotalMix Remote

Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

Additionally RME's latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process - simply enter the IP address of the computer you would like to control with TotalMix Remote and get going - users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

TotalMix FX - Mixing/Routing with superior features for Studio and Live Work

Since 2001 TotalMix added unlimited routing and mixing to RME's audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

RME USB - Transport audio with lowest latency and industry leading stability

Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for RME products. RME Audio develops its own interface core, it's not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay."

DigiCheck - The Secret Weapon of High Resolution Audio Measurements

RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

Specs

Digiface Ravenna
Gigabit Ethernet Port

RJ45

100 Mbit/s, 1 Gbit/s
Standard port LEDs: yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Network-based remote control of the unit (TotalMix Remote)

RAVENNA Modul

Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
Network Layer 3
Modes: Switched and Redundancy according to ST 2022-7
32 streams
128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
Clock sources: PTP, Internal
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
Routing: Channel-based routing matrix
Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05

MADI Input

Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz - 54 kHz

MADI Output

Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 400 mVpp
Cable length: up to 50 m
Generates 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz

Output Analog Phones 129/130

Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD @ -1 dBFS: - 96 dB, 0.0016 %
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Word Clock In

BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed

Word Clock Out

BNC
Max level: 5 Vss
Level with termination 75 Ohm: 4.0 Vss
Internal impedance: 10 Ohm
Output Analog Phones 129/130
Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD@-1dBFS:-96dB,0.0016%
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Digital

Clocks: Internal, RAVENNA (PTP), word, MADI
Supported sample rates: 44.1 kHz up to 192 kHz

Notes: Combining vintage sound with modern features, the S2400 draws heavily on the iconic Emu SP1200 to create a new instrument with a distinctive character. One of the best samplers money can buy.

Supplier's Notes:
A legend, reborn.

The S2400 is nothing short of a passion project. Along with a small team of talented Software Engineers, CAD Engineers and revered artists, Isla Instruments have developed a future classic.

The S2400 is a passion project - to recreate the sound of one of the world's most iconic sampling drum machines, and bring it up-to-date with modern features. The result is the very best of old school and new school technology coming together.

Brad has been obsessed with drum machines for many years - owning, repairing, restoring, modifying countless makes and models (see his HR-16 mods on YouTube).

Staying true to form in both sonic characteristics and design aesthetic were the main drivers in the realisation of this project, while bringing the hardware into the 21st Century and keeping the same 'instant gratification' and intuitiveness of its spiritual pre-predecessor at heart.

A machine built for the now and the future.

S2400 Specifications

Sampler / Audio:
16-Bit 48Khz 'Hi-Fi' Sampling/Playback Engine
12-Bit 26Khz 'Classic' Sampling/Playback Engine
Engine type assignable to each of the 32 sample slots
Sample up to 21.5 minutes per slot (Classic / Mono),
5.5 minutes (Hi-Fi / Stereo)
Simultaneous (Full Duplex) playback and record with 8 channel LiveLooping functionality.
On-screen waveform display (slice audio, set loop-points with ease)
128 MB of built-in factory drum kits (from some of our featured beta team)
Independent Headphone output for monitoring (effectively 2 extra channels)
DSP based LP/HP Filtering per track (more FX planned for future)

Sequencer:
Multiple sequence entry methods: Live recording, Step Sequence, Piano Roll GUI, TR x0x Style
32 Stereo Audio Tracks w/ 16 Voice polyphony
32 MIDI Tracks (for sequencing external equipment)
96 PPQN Clock
Per track quantization and swing (including classic mode)
Patterns are up to 100 measures, any time signature
All parameters (level, pitch, envelope, filters) configurable per pattern step
Song mode

Hardware

Bright 128 × 64 pixel OLED display (viewable from any angle)
Ultra High quality Grayhill Optical Data Entry Encoder
8 x 60mm Professional Dual Rail Faders
8 x Dual 'concentric' Pro-Audio rotary pots
Broadcast Equipment grade A/V backlit pushbutton switches
Tactile silicone pads backlit with RGB LEDs
SD Card storage (up to 1TB currently tested)
Classic (OG) input and output analogue filtering circuitry.

I/O

MIDI In/Out/Thru (Standard 5-pin DIN)
2 × 1/4" Stereo Mix Out jacks (psuedo balanced)
8 × 1/4" Individual audio out jacks (psuedo balanced)
4 × 1/4" External input jacks (with adjustable pre-amp modes)
2 × Stereo RCA Line/Phono Inputs (with dual phono pre-amps)
Hi-speed USB 2.0 device port. (USB Audio/MIDI)
USB Host port (connect external USB peripherals, MIDI controllers etc).
3.5mm Clock/trigger in and out jacks (to sync/trigger vintage equipment or modular synths)
Universal Voltage100-250V AC Mains powered.

Physical

Rock Solid 16Ga Cold Rolled Steel enclosure with 6mm Anodised aluminium sidewalls.
Aluminium knobs
Dimensions: (Including knobs, jacks, feet)
Imperial: W18" x D12" x H5" (back) 3" (front)
Metric: W460mm x D310mm x H130mm (back) 80mm (front)
Weight: approximately 13lbs / 6Kgs (metric)

*** Please note: This product does not come with the three-pin PSU UK kettle leads required, please purchase separately. ***

Notes: A massive semi-modular system in a small case with the footprint of a laptop. Cascadia has MIDI in/out/thru/USB, Eurorack compatible signal levels and pro-level audio I/O to interface with the rest of your studio or get your studio started.

Modern Analogue Architecture

Cascadia is packed with a mix of classic East and West Coast synthesizer blocks. Normalized connections let you get straight to the sounds inside. Or, let your imagination run wild and patch any of the modules together however you choose. Make small tweaks to the architecture, or re-route the entire synth to your liking- the choice is yours!

Summary:
Cascadia semi-modular synthesizer.
101 patch points, 34 sliders, 16 knobs, 28 switches, 5 push buttons, and 36 leds.
14 Patch cables - 4×10cm, 4×15cm, 4×30cm, 2×45cm.
USB-C to A cable.
International AC Adaptor.
Intellijel cable tie.

Two Precision Analogue VCOs
VCO A is Thru-zero FM-ready with a dedicated Index VCA, Sub Oscillator, PWM and Soft/hard sync.
VCO B is a combo VCO/LFO with 4 simultaneous outputs
Six Channel Waveform Mixer
Two patchable (normalled) inputs
Noise generator with multiple algorithms.
Optional asymmetric soft clipping on the mix output.
Liquid-Sounding, Cascaded 4-Pole Multimode Filter
Eight Modes: LP1, LP2, LP4, BP2, BP4, HP4, NT2, Phazor.
Additional dedicated outputs for LP4 and HP4.
Input Level Knob for fine control of filter input and resonance balance and added drive.
Multiple FM inputs and a QM input, all with attenuators.
Wavefolder Circuit
West Coast-style parallel wavefolder.
Normalled into the auxiliary input on the VCA in parallel with the filter.
Dual Digital Envelopes
ENV A is a versatile east coast style ADSR / AHDSR envelope generator with a hold function and dynamic level/time control. Normalled to the VCA to instantly shape your sound.
ENV B is a complex, multimode function generator with a West Coast style AR/ASR/Cycling AR, a beat syncable LFO, Burst generator modes, and the Entropic Sequence Generator (added in 1.3). Normalled to the filter for instant FM without patching.
VCA A and Output Path
VCA A is a linear VCA with auxiliary input.
Global Output Mixer with overdrive circuit and bypassable asymmetric soft clipping.

Expansive Utilities Sections
Cascadia also features a whole host of utilities for getting the most out of your patches.

The Utility Row
Sample and hold circuit with white noise normalled to the input.
Slew/Envelope follower.
Attenuverter/Mixer with multiple outputs.
Triple triangle LFO with rate control, rate input and divided outputs.
Triple buffered multiple.
Precision adder.
Signal inverter.
Bi-polar > Unity level shifter.
Expression level control for modulation the TRS expression input on an FX pedal.
Ring Modulator.
VCA B / LPF (LPG) - Auxiliary VCA and 4-Pole Diode Ladder VCF combination for additional dynamics.
The Top Row
Easy to access Pitch, Gate, and Velocity CV inputs.
Pedal Send and Return FX loop with Wet/Dry control, phase inverter and Line/Pedal level switches.
Output Mixer with Overdrive.
Eurorack Level Main output with level control for interfacing with other modular gear.

The Outside world - MIDI, Pedal and Audio I/O
Cascadia is equipped with a ton of I/O to get it connected to the rest of your gear.

Rear Panel

1/4" Stereo Headphone jack.
1/4" Balanced Output Jack.
1/4" Balanced Input routed to a slider and output on the main panel for patching anywhere into Cascadia.
1/4" TS Pedal FX Send Return and 14" TRS Expression Out.
MIDI DIN In/Out/Thru and USB-MIDI all routed to the MIDI > CV Interface on the top panel.
MIDI > CV Interface
Deeper MIDI configuration is available with the Intelljel Config App (link below). MPE Support has been added in v1.4 and supports the Ableton Live 12 Tuning systems. Dual Mono mode (added in 1.3) allows an additional channel to send its own Pitch/Gate signal on the CC/MOD outputs. All modes support MIDI Portamento.

MIDI Pitch / Velocity Outputs and Learn Button
MIDI Gate / Trig Outputs
MIDI CC / Mod - Learnable and assignable to any CC or Channel Pressure
MIDI LFO - Multimode LFO synced with MIDI or Tap Clock
MIDI CLK - Dividable MIDI clock with alternate Tap Clock functionality.
Cascadia comes ready to play.

The normalization behind the panel allows for a ton of exploration without ever adding a patch cable; there is years of material to explore in Cascadia and years more when you start patching. There is everything you need to get started: 14 assorted patch cables, USB-A to USB-C cable, and an international power supply.

Expand and Customize

In addition to additional patch cables, there are additional options for swapping the wooden cheeks for metal side cheeks or a rackmount kit with a storage tray - great for an effects pedal or patch cables.

Specs

In the Box: Cascadia Semi-modular Synthesizer
14 Patch cables - 4×10cm, 4×15cm, 4×30cm, 2×45cm
USB-C to A cable
Intellijel cable tie
15V/1.2A AC Adaptor (Euro/American prongs included)

Height: 66mm (from rubber foot to top of knobs)
Width: 348mm (including wood end cheeks)
Depth: 246mm (front to rear jacks).
Power: 15V DC/1.0 A (minimum), centre-pin-positive.

Notes: Designed for Serato and Algoriddim Djay, the long-awaited Mixon 8 Pro is a four-channel hybrid controller with detailed jogwheel displays. Standalone mixer and four FX paddles give versatility for creative mixing.

Supplier's Notes:
Enhanced jog wheels with real-time displays

Boasting sleek, touch-sensitive gun metal platters and high profile rims, the enhanced jog wheel design of the Mixon 8 Pro allows you to control your music precisely. And thanks to the new vivid on-jog displays, DJs are kept well informed with real-time track information, including virtual needle illumination, a playhead position indicator, and track time remaining or elapsed.

Four FX pedals for instant effects

As an industry first, the Mixon 8 Pro features 4 sturdy onboard FX Paddles, providing instant tactile control of all your effects. Each channel also has a 3-band EQ and dedicated sound colour filters to shape your music even more (LPF/HPF).

Stand-alone mixer inside

The powerful inbuilt standalone mixer with independent level meters for inputs and outputs gives you flexible connections to either turntables or media players so you can mix digital and analogue sources simultaneously (2x Phono/4x Line). For even more convenience, you can also route the dual Mic inputs (XLR/Jack) with dedicated talk-over functions into the mixer channels to perfectly EQ your live vocals with onboard controls.

Technical data

In- & outputs: XLR Master-Output, 6.3 mm jack Booth-Output (TRS), RCA Master-Output, 2x RCA-Input (Phono/Line), 2x RCA-Input (Line), 1x Combo-Mic-Input (XLR/jack (TRS)), 1x Mic-Input 6.3 mm jack (TRS), 1x USB-B, 1x USB-C/USB-B, 2x Headphones (6.3 mm/3.5 mm jack)
Dimensions: 657 x 68 x 391 mm
Dimensions docking station: 320 x 9 mm
Weight: 5,7 kg
Minimum system requirements: Please refer to the manufacturer's specifications for the system requirements of your DJ software.
Incl.: Controller, manual, USB cable (USB-A to USB-B), power supply (12V/3A)

Notes: A serious, serious synth. PPG-esque wavetable synthesis with huge 24-voice polyphony, dual analogue filters and four-part multitimbrality. Incredible sound, incredible versatility.

Supplier's Notes:
The 3rd Wave is a powerhouse wavetable synth with 24-voice polyphony and 4-part multi-timbral capability that's like having four independent synthesizers at your fingerprints.

Each of its 3 oscillators per voice can be:

A classic PPG-era wavetable
A high-resolution complex wavetable
An analogue-modelled waveform
Create up to 64 custom wavetables of your own using the built-in Wavemaker. With sample-to-wavetable capability, you can connect an audio source to the audio input and generate a wavetable at the touch of a button.

Classic legacy; modern sound

While the 3rd Wave has roots in the classic digital wavetable synths of the past, it takes that concept into the 21st century with a lush, expansive sound that's a product of its expanded wavetables and warm, organic-sounding analogue filters

It boasts not only a punchy, Dave Rossum-designed 2140 analogue low-pass filter with variable saturation, but a second, SEM-style state-variable filter (low-pass, high-pass, notch, and band-pass) for additional tone-sculpting. Run both filters in series for harmonically complex textures.

4-part; multi-timbral

With 24-voices, the 3rd Wave has enough power for the most note-intensive performances.

And that polyphony really comes into play with its ability to layer up to 4 independent parts or split zones - each with a completely different sound, sequence, and dual effect.

Each stereo part has independent panning, volume, and a dedicated stereo physical output.

Modulation Matrix

The secret weapon of any synth is its mod matrix, and the 3rd Wave doesn't disappoint.

With 16 assignable slots, 12 additional fixed-source slots, 27 sources, and 114 destinations, it has the flexibility of a modular.

And all of this power is per multipart. That means up to 4 independent layers of sound, each with its own mod matrix.

Sequence notes; songs & params

The 3rd Wave's sequencer is an inspiring tool for both composers and sound designers because it is pattern-based and can sequence notes, songs, and parameter changes.

For composing and performing, enter notes and chords in real time with or without quantization for maximum groove and arrange up to 24 patterns of up to 32 measures in length into songs just as easily.

Specs

Sound Engine

3 High-resolution Digital Oscillators Per Voice
64 total user wavetable positions with 48 wavetables that contain 64 waveforms per table (32 legacy PPG waves with room for another 16 of this type)
32 original 8 bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables
7 high-resolution modelled analogue waveforms (sine, saw, triangle, supersaw, pulse, white noise, pink noise)

VCO sync

Linear FM
6-stage wave envelope per oscillator with variable time and position that can be looped
Optional wave flow section that allows for no wavetable as well as no waveform interpolation
Upper wavetable mode as with the original PPG 2 series
Unison mode and chord mode with variable voice count

1 Analogue Low-pass Filter

Dave Rossum designed, classic, 2140 low-pass resonant filter
24 db per octave slope
variable saturation amount
optional resonance compensation

1 State-Variable Filter

12 db per octave slope
Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode

4 ADSR+ Delay Envelopes

Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response
Freely assignable to multiple modulation destinations

4 Low-Frequency Oscillators

Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)
Variable delay
Note reset
Syncable to master clock BPM

2 Digital Effects

BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker, ring mod, room reverb, hall reverb, super plate reverb - most modelled on famous hardware devices
Syncable to master clock BPM
Parameters modulatable via mod matrix

Wavemaker Tool: Built-In Custom Wavetable Maker

"Sample-to-wave" functionality. Connect an audio source to the 3rd Wave's Audio In port, press "Make Waves" and the synth samples the audio to create a custom wavetable
Samples to convert can also be brought in as a 96 kHz wav file through USB
Store up to 32 custom wavetables
64 waveforms per wavetable
Accepts pitched or un-pitched material as input
96 kHz sampling rate
16-bit resolution
1024 cycles per waveform, converted automatically to cover entire keyboard range
Flexible wave-sampling length
Imports Serum wavetables

Sequencer: Performs both Note and Parameter Sequencing

4 parts per sequence
24 sequences per preset
Up to 32 measures per sequence
Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off), that is settable in real time
Variable swing

Arpeggiator: 1 Arp per Multi-part
Up, down, up/down, and assign modes
Variable range (1, 2, or 3 octaves)

Mod Matrix: 16-slot Modulation Matrix Per Multi-Part

16 slot modulation matrix with 27 mod sources and 114 mod destinations
12 additional fixed-source mod paths
Modulation assignment buttons enable quick and easy modulation routing
Mod Matrix runs at audio rates
Sequencer can record and play mod parameter changes in real time

Controls

77 knobs and 39 buttons enable deep, comprehensive editing with minimal menu diving
Pitch and Mod Wheels
Full-sized, five-octave, semi-weighted, premium Fatar keyboard with velocity and aftertouch

Programs

500 factory programs. User rewritable

In/out

4 Stereo outputs (2x 1/4" phone jack per part)
Headphone out (stereo 1/4" phone jack)
MIDI In, MIDI Out, and MIDI Thru
USB port for bidirectional MIDI communication
Audio Input for creating user wavetables from external audio source (1/4" phone jack)
Audio Input can also route audio through the filters, output chain, and effects
Sustain/footswitch input
Volume pedal input
Expression pedal input

Power

1 universal IEC AC power inlet for internal power supply
Operates worldwide on voltages between 100-240v, 50-60 Hz, 65 watts maximum power consumption

Dimensions

Shipping Box Dimensions: 44 x 20 x 13 inches, 35 lbs
Synth Dimensions: 38.5 x 14.25 x 5 inches, 27 lbs

Notes: Updated version of Erica's superb EMS-inspired synth, featuring a powerful dual oscillator synth architecture, piano roll sequencer, modulation matrix and recordable joystick.

Supplier's Notes:
Based on lessons learned from the SYNTRX, Erica Synths decided to create an instrument that would integrate even deeper into contemporary electronic and experimental music setups and cover sonic territory from daunting drones to powerful basslines and glitched noisescapes - the SYNTRX II is a new dark horse for experimental sonic rides.

The SYNTRX II is the culmination of Erica Synths' analogue sound design circuits - two perfectly stable main oscillators with waveshapers, a modulation oscillator with 1V/oct tracking, a versatile multimode filter, supercharged external instrument inputs with an envelope follower, a unique, great-sounding ring modulator, a recordable joystick, built-in piano roll sequencer and stepped modulation sources, all arranged around Erica Synths' signature matrix mixer and topped off with powerful FX on their new DSP platform.

"The SYNTRX 2 is awesome, a very different instrument from V1. My first synths were the VCS3 and the AKS and are still among my favorites today. The Syntrx 2 is pushing the boundaries of possibilities & experimentations much beyond the original analogue version. The Syntrx 2 is an instant classic". - Jean Michel Jarre

Features

Two perfectly stable main oscillators with CV-controlled waveforms
Modulation oscillator with variable waveforms
Highpass and Lowpass filters in series
Free running or gate synced sample and hold circuit
Multi-colour noise generator
DC coupled instrument inputs with signal inversion and envelope follower
Ring modulator of unique design
Looping trapezoid envelope generator and VCA
Two output VCAs
Signal meter with a dedicated audio/CV output
FX section with great sounding Delay and Reverb developed in collaboration with 112db.com
Recordable Joystick
Analogue patch matrix with 3 attenuation levels in each patch point
254 patch memory
Piano roll sequencer and two stepper modulation sources
DIN5 MIDI Input and MIDI Thru
Two assignable outputs
Headphone output
Dimensions: 309mm x 457mm x 115mm (with the joystick in centre position)
Weight: 3.9 kg

Notes: *** Osmose 2.0 Firmware Update- August 2024 ***

What's New in Osmose 2.0?

Here's a quick overview of the new features:

Press Glide in External MIDI Mode
MPE Arpeggiator in External MIDI Mode
Preset Favourites & Playlists
2048 Preset Slots
Preset & Playlist Changes via Program Changes
New Soundbank Management System
and more!


Next-gen standalone expressive synthesizer. Add emotion & movement to your music with a simple touch.

Osmose is the new standard for musical expressivity. Use intuitive gestures to control this standalone synthesizer and upgrade your playing & production skills. Press, bend, shake, strum & more to interact with keyboards & electronic sounds in a new organic way. Whether you're a veteran keyboardist, a workflow-oriented producer, a daring sound designer, or anything in between, Osmose will take your musical journey to uncharted places.

Explore new ways to play

Behind the expressivity of Osmose lies a few natural gestures you already know well. Discover how they interact with Osmose and enhance your musicianship from the very first touch.

Design & build quality

Designed in France to stand the test of time and touring with style, Osmose is made of quality components and boasts a high repairability index.

A sound engine by Haken Audio

Made for expressivity by Haken Audio, the EaganMatrix sound engine is at home with FM, virtual analogue, and physical modeling synthesis, as well as everything in-between.

Fun to play

Easy-to-tweak presets, a playful interface, and an innovative keybed make for a fun & refreshing playing experience, for players of all levels.

Osmose's browser has been tailored to make it a hassle-free experience. It offers various filters and sub-filters based on both sound types and colours so you can find the sounds in your head quickly.

Main features:

49 Key MPE keyboard with polyphonic aftertouch
Full-size keys with 3-dimension MPE control
EaganMatrix sound engine by Haken Audio: a digital modular sandbox allowing subtractive, FM and different physical modeling synthesis
24 voices of polyphony
Assignable mod and pitch sliders
500 factory presets
128 user presets
Configuration modes: standalone synthesizer, MPE MIDI Controller, and classic MIDI Controller
Filters and sub-filters for browsing
Customisable sensitivity and velocity curves
Multi-mode MPE arpeggiator and innovative pressure glide feature
Digital stereo effects: select between reverb , mod delay, swept echo,analog echo or LPF and HPF delay
Large colour display
9 push encoders
2 Line outputs: Two 14" TS pseudo balanced line outputs
MIDI input, output, and MIDI-thru
USB MIDI
Separated 1/4" TRS headphone output on the front panel (with its dedicated volume knob)
2 continuous pedal inputs assignable to macro or sustain: 6.35 mm Jack
Power: External PSU with lockable connector, 12V, 1.5A, center positive
Dimensions (W x H x D): 894 x 316 x 87.5 mm / 35.2" x 12.4" x 3.4"
Weight: 8.3 kg / 18.4 lbs
Includes a software updater for new firmware and library versions
Includes a Mac/PC editor to create and edit sound

Notes: Typically experimental stuff from Soma, the Enner is a five-voice synth with an array of filters, electro-acoustic noise options, analogue effects and huge creative potential.

Supplier's Notes:
ENNER is a very expressive sound tool that can generate bits, pads, FX, noises, clicks, glitches, but also function as a cool vocal mic with built-in analogue FX and much more! A musician with a rich imagination and who's experienced in playing ENNER can perform an entire exciting gig using just this synth.

As an instrument, ENNER is a unique analogue synthesizer with the key principle being that all signals that make sound pass through and are managed by your body. Your hands become the central part of the circuitry. Touching different contact pads with different parts of your fingers and palms with different amounts of pressure, letting signals pass through your body defines the mixing, volume, timbre, feedback and other parameters of synthesis. Human skin has much more complex electric properties than we think. The skin provides not just resistance but also some capacitive properties and even nonlinear dependence of conductivity from current, its direction and time during which the current was applied. All of this affects the sound, making you the key part of the synthesis process.

All pots of ENNER are metallic and also function as inputs or outputs. Touching a pot can change not only the parameters but also patch the audio signals.

ENNER consists of:

The array of filters with fixed frequency properties (the triangle in the centre): the stereo high pass filter (HPF), the stereo bandpass filter (high mid - BPFH), the stereo bandpass filter (low mid - BPFL), the stereo lowpass filter (LPF). Stereo means that the filters have separate inputs for left and right channels as well as separate outputs. Sliding on the filters' pads with your fingers you can create a rich stereo image where each channel may have not only individual volume properties but also timbral ones. The outputs of the filters are mixed together and connected to the main output. Also in the triangle, you have a stereo direct input (DIR) that lets you bypass the filters.

The modulated stereo delay. The input of the delay is the two pads on the top of the triangle (DLY blue). The output of the delay is mixed with filter output and connected to the main output. Also, you have delay output connected to the pads placed on the left and right sides from the top of the triangle (DLY orange) that lets you create feedback and other interesting effects. The delay has two separate lines (left and right) with individual TIME controls (BPEMR pots), common FEEDBACK and the common pot that defines the amount of self-modulation (BIZZARE). The BPEMR pots are also touch inputs for delay time modulation.

On the right side of ENNER, there is a five-voice synthesizer with individual adjustment of frequency for each voice (TUNE knobs) with the possibility to change the pitch of all voices simultaneously (PITCH knob). TUNE knobs are also the outputs of the voices, so by touching them you can patch the voices to the filter's inputs. The synthesizer has separate output pads for each voice (pads OUT 1-5), individual modulation inputs (MOD 1-5) and ring modulation outputs (the RING 12, 23, 34 numbers indicate which voices are sources for the ring modulation). Connecting MOD and OUT pads of one voice with your fingers will pitch it up. The fifth voice has an additional modulation pad MOD 5- which can shift the pitch of the fifth voice down (connect it to +12 pad or any pad that has some positive signal including the output of the fifth voice).

On the left side of ENNER, there is the second synth that has one master generator, the output of which is divided six times by two with individual outputs for each stage of division (PULSE 1-6). This synth is aimed at creating rhythmical clicks, basses and octave tones. The frequency of the master generator is defined by the TEMPO knob. The output pads &1,2,3 are logical multiplications of different PULSE outputs giving additional and more complex rhythm combinations.

ENNER is also an electro-acoustic noise instrument. It has a piezo pickup attached to the front panel that captures sound from the casing itself. There is metallic spring and you can attach rubber bands to the panel to create various acoustic sounds. The piezo mic can capture clicks and scratches you make with your fingers, and it also allows you to create filtered feedback. Not only that, it can even capture your voice singing over the panel! To get sound from the piezo you have to connect the PIEZO OUT pad with some filters or delay inputs. Applying filters and delay on the piezo out while the panel works as a mic, catching the audio signal from the speakers connected to the ENNER output lets you create very cool acoustic feedback-based effects. PIEZO GAIN adjusts the piezo sensitivity.

The bottom of the triangle (NOISE pad) is the output of static pink noise.

External in (EXT socket and EXT pad) lets you send an external audio signal to ENNER and process it through the array of filters, delay and other ENNER stuff.

All of these features make ENNER a simple yet powerful kit of sound sources and FX that give you a rich and diverse sound palette with many possible playing techniques that you can change very fast as there is no other control over the sound other than your touches.

Specs

Array of filters

Pads DIR - direct input (no filters)
Pads HPF - highpass filter in
Pads BPFH - bandpass filter high mid in
Pads BPFL - bandpass filter low mid in
Pads LPF - lowpass filter in
(L - left channel, R - right channel)

Pink noise generator

NOISE - noise output

Delay

Pads DLY(blue) - delay in
Pads DLY(orange) - delay out
(L - left channel, R - right channel)
Pots BPEMR - delay time (L and R) also time modulation inputs
The UROBOROS pot - feedback (both channels)
Pot BIZZARE - delay self-modulation

Piezo

Pad PIEZO OUT - the output
Pot PIEZO GAIN - piezo amplification (also piezo output)

The five-voice synth

Pads OUT 1-5 - outputs of the voices
Pads MOD 1-5 - modulation inputs of the voices (try to connect them with OUT)
Pads RING 12, 23, 34 - outputs of ring modulators that multiply outputs of different voices
Pad MOD 5- - an additional modulation input for the fifth voice (try to connect it with +12)
Pots TUNE 1-5 - frequency of the voices (also voices outputs)
Pot PITCH - transposing all voices at once.

Rhythm\Bass synth

Pads PULSE 1-6 - output of binary dividers
Pads &1, 2, 3 - additional outputs that are logical AND of different PULSE outputs.
Pot TEMPO - the frequency of the source generator

External

Socket EXT - external in
Pad EXT - connected to EXT socket tip

Power

+12V center + 0.2A. ENNER requires a good stabilized and filtered PSU. We recommend contemporary switching mode PSUs with a wide input range. The PSU is included.

Grounding

In order that when playing on ENNER there would be no hum from the electricity grid interferences, the device must be properly grounded! A normal grounding connection at the electric socket, which is carried through the power cord to your audio equipment to which the ENNER is connected, is sufficient.

What's in the kit:

ENNER
12V center plus PSU
Several rubber bands

Notes: A thing of beauty. Teenage Engineering channel the vibes of vintage open-reel tape recorders mashed up with modern tech. A proper all-round recording solution, from voice memos to studio work.

Supplier's Notes:
There are thoughts, ideas and fragments that - for the sake of humanity - we need to record and be able to return to as a reference, as a seed for new thoughts or just to remember another time. TP-7 is built for just that, to record sound, music, interviews and important ideas with zero friction in the highest possible quality. A device engineered in every detail to do only one thing and to do it well. A dedicated piece of hardware for ideas, or just a dirty riff.

The ultra-portable audio recorder. Record and listen back using the internal mic and speaker, or use any number of the 3x two-way jacks for external mics, headsets or other signal sources. Multiple connectivity options include USB-C, MFi and Bluetooth. Instant voice-to-text transcription available via the IOS app. Included in the box: 6.35 mm jack adapter, textile USB-C cable, user guide and reusable plastic storage box.

Intuitive muscle reflex control.

TP-7 fits perfectly in the palm of your hand and lets your fingers naturally adopt the controls. The index finger triggers fast forward and the middle finger rewinds. Your thumb records a memo, the pinky selects the mode. It's a genuinely rewarding experience.

Tape reel sensation.

The centre piece of the TP-7 is the motorized tape reel. A delicately engineered brushed motor with ball bearings, and a highly sensitive hall sensor that lets you virtually grab your recording. the reel is also used for scrubbing, to pause, menu navigation and as gentle visual feedback during playback and recording.

The rocker.

The side-mounted rocker allows you to quickly scrub through your audio.
just press on the top edge to fast forward, and down to rewind. watch the wheel spin around and hear your tracks scrub in 'hyperspeed'.

Transcription hell turned into transcription heaven.

We've all experienced the process of transcribing recorded speech to text by hand. A key feature of the TP-7 is its ability to streamline the process of turning audio into text. simply connect your phone to TP-7 via BLE or USB, open the TP-7 app and press transcribe. Job done!

(* Additional languages, text-to-audio edit and other useful features will be added over time.)

Off the record.

Picture yourself in an interview situation. The reel on the TP-7 is spinning slowly, the bright red record lamp is lit. Both the reel and the lamp indicates that a recording is taking place. The interview is going quite well. The situation gets heated, you're suddenly asked some personal questions. In that moment, you gently place a finger on the reel and pause the recording, allowing you to continue the interview 'off the record'.

The importance of zero friction.
(or how to remove steps from thought to action.)

Let's compare TP-7 to the most common recorder today - the smartphone:
Once you've turned on and unlocked your phone, found the recording app and started recording, you've probably forgotten whatever you had in mind. When recording on TP-7: press the memo button and start talking.

Inputs, outputs and 20 years of ideas.

TP-7 features three stereo two-way jacks to be used as either inputs or outputs, for connecting external mics, headphones, studio monitors, or any other audio equipment like OP-1 field or TX-6, recording with all 6 stereo channels. Use USB-C for multi-channel audio interface, MIDI, data transfer and charging, and BLE and MFi for wireless connectivity. TP-7 also includes a 6.35 mm to 3.5 mm jack adapter. Add to that 128 GB of internal storage and you can preserve 5 minutes of ideas a day for 20 years..

Applications.

Interview

Let you, and your subject, focus on the job at hand. When conducting interviews, TP-7's discreet size and dedicated function makes for an unobtrusive recording device.

Podcast

Whether you're in the studio or out in the field, TP-7's high quality audio is perfect for podcast recording. Connect up to 3 external mics, or use the internal mic in a pinch. Keep an eye on your levels with the VU meter and headphones.

Voice memos

Think out loud, tape does the rest. Let TP-7 capture your thoughts, then convert them into accurate text using the TP-7 app. For professionals, and avid thinkers and writers.

Field recording

Inspiration can strike when you least expect it. With an internal mic, 3x inputs, and a 7 hr rechargeable battery, you can use tape to record samples and demos on the go. Never lose an idea again.

Live performance

Use TP-7 in a live performance or recording scenario. Track all the instruments in your studio, or record your live set when performing. You can even use TP-7 as turntables and TX-6 to mix.

The field system.

TP-7 is part of Teenage Engineering's ultra-portable sound recording and performance system. All battery-powered, rechargeable via USB-C and with full interconnectivity (MIDI and high resolution audio). Compatible with iOS, macOS, and windows it's the most powerful, highest quality, portable system in the world 'as we know it'.

TP-7 specifications

Highlights
3x stereo two-way jack input/output/headset connectors
1x stereo headphones connector with 3.5 to 6.35 mm jack adapter
Internal microphone and speaker
Motorised 'tape reel'
128 GB internal storage
24-bit/96 kHz usb audio interface
Bluetooth low energy
Rechargeable battery
7 hr battery life
64x32 pixel monochrome display
LED VU meters
Companion transcription app

Dimensions and weight
96 mm x 68 mm x 16 mm
170 g / 5.6 oz

Electrical characteristics
Two-way jacks (3.5 mm TRRS)

Stereo input:
Input impedance 9.5 kOhm
Analogue gain 0 - 42 dB
Max level 8 dBu (2 Vrms)
SNR 105 dBA

Headset:
Max level out 2 dBu (1 Vrms)
SNR 110 dBA
Microphone SNR 98 dBA

Headphone output (6.35 mm TRS)
Max level 8 dBu (2 Vrms)
SNR 120 dBA

Notes: Premium version of the excellent Opsix, Korg's contemporary take on FM synthesis. Full 61-note natural-touch keybed with aftertouch, 80-voice stereo polyphony and full metal construction.

Supplier's Notes:
The Ultimate Union of Power and Performance

opsix SE is a digital synth like no other. With a premium all-metal design, 61-keys, and aftertouch, it unlocks a new world of sonic capabilities. Building on the expansive sound engine in the original opsix, opsix SE enhances it with increased polyphony and voicing, resulting in a synthesizer created for superior performance and precise control.

The opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

The opsix SE takes this even further. It is equipped with Korg's premium 61-key natural-touch keyboard, complete with aftertouch, delivering the exceptional tactile experience expected from Korg's flagship workstations. With a sleek, robust metal body, it's built for both the intensity of live gigs and the precision of studio sessions. The metallic knobs are optimally weighted for effortless adjustments. Underneath its exterior, the opsix SE boasts an incredible capacity of 80 stereo voices of polyphony.

The opsix SE arrives preloaded with hundreds of sounds enhanced for aftertouch control. Moreover, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.

Build to play

opsix SE was born out of the desire to play this incredible synth with both hands. Equipped with KORG's premium 61-note natural-touch keyboard, the opsix SE offers the same outstanding tactile response as KORG's top-tier workstations. Aftertouch puts unparalleled control of all the exceptional opsix sounds at your fingertips. Of course, we've modernized the factory Performances for aftertouch and introduced some fresh ones to the mix as well. In fact, most of the opsix SE programs have been revised to make full use of aftertouch, extended keyboard, and polyphony.

Premium metal design

The opsix SE showcases a notable upgrade in aesthetics. A slim body, specifically designed for this instrument, features a striking brown painted aluminium control panel, paying homage to vintage machines. Together with the vivid, illuminating LEDs, it brings a vibrant energy to any stage performance. The side panels, painted in a sleek black metal, amplify the overall aesthetics for a luxurious finish.

Exclusive hard case included

The opsix SE ships in a dedicated hard case, including space for cables and a sustain pedal. Your instrument can travel protected, whether you're carrying it to a rehearsal downtown or packing it up for a tour.

Get Illuminated with the Operator Mixer

At the heart of every sound is opsix SE's Operator Mixer - a simple set of six faders and knobs that invite exploration. Each part lights up red to indicate carriers or blue for modulators. Manipulating them opens up new sound-shaping possibilities to breathe fresh life into your musical ideas. This straightforward, hands-on workflow is part of what makes opsix SE so unique, just like the sounds it offers.

Direct Hands-On Control

Whether you're tweaking a preset or building a patch from the ground up, the six data entry knobs on the right give you quick access to the parameters you need and seamlessly sync with the large OLED display, giving you a clear, focused direction to your workflow. Coupled with the mixer, it makes creating fresh sounds super easy and, most importantly, fun!

Select from a full range of analogue-style filters, from the radical Korg MS-20 low-pass/high-pass filter to the powerful yet smooth KORG Polysix low-pass filter that gives your sound a vintage feel. There are also two or four-pole low-pass, high-pass, band-pass, and band-reject filters with resonance.

There's even a built-in spectrum analyser and oscilloscope that gives you visual feedback via the screen on the music you're making.

Six in One Synthesis

The core of opsix is nothing short of exponential. Since waveforms can be arranged and modulated in nearly infinite ways, opsix can easily do the sonic work that is similar to numerous types of synthesis:

Subtractive

Removing parts of the sound to get the sound you want; the most widely-used synthesis. opsix uses up to six envelopes and multi-modeled filters to achieve many cutting-edge and classical analog synthesis tones.


Semi-Modular
Rerouting signal paths to change the sound. A spin through the Alogorithm section will dramatically reshape the sound by changing how the signal routing between the operators work together, and no patch cables are needed.


Analog (Modelling)
Analog-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.


Waveshaping

Adding intentional distortion to the waveforms to achieve aggressive overtones that are either harmonic or inharmonic. This will help you achieve gritty, bitey tones dripping with character.


Additive

Stacking waveforms and blending their harmonics is key to an expansive range of harmonious, dissonant, and tension-driven sounds. With six operators available, the complete FM experience is possible, including the ability to go back in time for classic sounds you have heard throughout recording history.


Classic FM

Last but certainly not least, opsix's highly flexible and powerful architecture starts with true six-Operator FM. As a result, it easily delivers signature sounds you have surely heard on thousands of hits from the '80s on through today, and with far more polyphony than other standalone FM synths available today.

With all of these ways to realize and explore sounds, opsix SE is uniquely suited as a "future-modern-classic" synth!

Altered Reality

opsix SE is FM-based, but the similarities to the classic synthesis end there. The Altered FM architecture delivers sounds across a vast spectrum, far wider than any single synthesis has been able to cover before, thanks to new sound components; new waveforms, filters, shaping, effects, LFOs, envelopes, modulations, and more, all translating to its broad assortment of sounds.

Powerful Effects Processing

opsix SE provides three blocks of 30 types of high-definition effects that you can use together to enhance your sounds even further. There's everything from a great mix of usable standard effects like chorus, phaser, delay, and compressor to some world-class shimmering reverbs that will elevate your sound to the next level.

Automatable 16-step sequencer

opsix SE features an incredible step sequencer that rivals groove boxes for flexibility and power. Press the PLAY button on any sound and experience the complexity of the sequences! Every Program has its unique sequence stored with it, or create your very own.

You can record up to six notes per step and edit each note's velocity, gate time, and playback timing. Create long phrases or make subtle shifts in timing to emulate strums or drum rolls, something that's not possible on a typical 16-step sequencer. The motion sequencer of the opsix SE also lets you record changes of up to six parameters, creating smooth motion changes in sound within a phrase or building rhythms that change dramatically with each step.

Notes: Special edition Platinum version of the excellent Opsix SE. Metallic finish, aluminium front panel, stainless steel sides and the same powerful FM synth engine as the standard Opsix SE.

Supplier's Notes:
Special limited edition of opsix SE.

Celebrating the release of the long awaited opsix SE, a stunning Platinum model (*) will be available in very limited quantities. While this model shares the same features as the standard model, it boasts a high-end metallic finish with an aluminum front panel and stainless steel side panels. This magnificent instrument is bound to command attention, whether on stage or in the studio.

(*) Differences are only cosmetic, specifications are exactly the same as the standard model. opsix SE Platinum also includes an exclusive set of stickers.

The Ultimate Union of Power and Performance

opsix SE is a digital synth like no other. With a premium all-metal design, 61-keys, and aftertouch, it unlocks a new world of sonic capabilities. Building on the expansive sound engine in the original opsix, opsix SE enhances it with increased polyphony and voicing, resulting in a synthesizer created for superior performance and precise control.

The opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

The opsix SE takes this even further. It is equipped with Korg's premium 61-key natural-touch keyboard, complete with aftertouch, delivering the exceptional tactile experience expected from Korg's flagship workstations. With a sleek, robust metal body, it's built for both the intensity of live gigs and the precision of studio sessions. The metallic knobs are optimally weighted for effortless adjustments. Underneath its exterior, the opsix SE boasts an incredible capacity of 80 stereo voices of polyphony.

The opsix SE arrives preloaded with hundreds of sounds enhanced for aftertouch control. Moreover, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.

Build to play

opsix SE was born out of the desire to play this incredible synth with both hands. Equipped with KORG's premium 61-note natural-touch keyboard, the opsix SE offers the same outstanding tactile response as KORG's top-tier workstations. Aftertouch puts unparalleled control of all the exceptional opsix sounds at your fingertips. Of course, we've modernized the factory Performances for aftertouch and introduced some fresh ones to the mix as well. In fact, most of the opsix SE programs have been revised to make full use of aftertouch, extended keyboard, and polyphony.

Premium metal design

The opsix SE showcases a notable upgrade in aesthetics. A slim body, specifically designed for this instrument, features a striking brown painted aluminium control panel, paying homage to vintage machines. Together with the vivid, illuminating LEDs, it brings a vibrant energy to any stage performance. The side panels, painted in a sleek black metal, amplify the overall aesthetics for a luxurious finish.

Exclusive hard case included

The opsix SE ships in a dedicated hard case, including space for cables and a sustain pedal. Your instrument can travel protected, whether you're carrying it to a rehearsal downtown or packing it up for a tour.

Get Illuminated with the Operator Mixer

At the heart of every sound is opsix SE's Operator Mixer - a simple set of six faders and knobs that invite exploration. Each part lights up red to indicate carriers or blue for modulators. Manipulating them opens up new sound-shaping possibilities to breathe fresh life into your musical ideas. This straightforward, hands-on workflow is part of what makes opsix SE so unique, just like the sounds it offers.

Direct Hands-On Control

Whether you're tweaking a preset or building a patch from the ground up, the six data entry knobs on the right give you quick access to the parameters you need and seamlessly sync with the large OLED display, giving you a clear, focused direction to your workflow. Coupled with the mixer, it makes creating fresh sounds super easy and, most importantly, fun!

Select from a full range of analogue-style filters, from the radical Korg MS-20 low-pass/high-pass filter to the powerful yet smooth KORG Polysix low-pass filter that gives your sound a vintage feel. There are also two or four-pole low-pass, high-pass, band-pass, and band-reject filters with resonance.

There's even a built-in spectrum analyser and oscilloscope that gives you visual feedback via the screen on the music you're making.

Six in One Synthesis

The core of opsix is nothing short of exponential. Since waveforms can be arranged and modulated in nearly infinite ways, opsix can easily do the sonic work that is similar to numerous types of synthesis:

Subtractive

Removing parts of the sound to get the sound you want; the most widely-used synthesis. opsix uses up to six envelopes and multi-modeled filters to achieve many cutting-edge and classical analog synthesis tones.


Semi-Modular
Rerouting signal paths to change the sound. A spin through the Alogorithm section will dramatically reshape the sound by changing how the signal routing between the operators work together, and no patch cables are needed.


Analog (Modelling)
Analog-style controls and plenty of stackable waveforms take you from digital to analogue-sounding in no time. Enjoy deep basses, crisp leads, thick pad sounds, fuzzy brass tones, and so much more.


Waveshaping

Adding intentional distortion to the waveforms to achieve aggressive overtones that are either harmonic or inharmonic. This will help you achieve gritty, bitey tones dripping with character.


Additive

Stacking waveforms and blending their harmonics is key to an expansive range of harmonious, dissonant, and tension-driven sounds. With six operators available, the complete FM experience is possible, including the ability to go back in time for classic sounds you have heard throughout recording history.


Classic FM

Last but certainly not least, opsix's highly flexible and powerful architecture starts with true six-Operator FM. As a result, it easily delivers signature sounds you have surely heard on thousands of hits from the '80s on through today, and with far more polyphony than other standalone FM synths available today.

With all of these ways to realize and explore sounds, opsix SE is uniquely suited as a "future-modern-classic" synth!

Altered Reality

opsix SE is FM-based, but the similarities to the classic synthesis end there. The Altered FM architecture delivers sounds across a vast spectrum, far wider than any single synthesis has been able to cover before, thanks to new sound components; new waveforms, filters, shaping, effects, LFOs, envelopes, modulations, and more, all translating to its broad assortment of sounds.

Powerful Effects Processing

opsix SE provides three blocks of 30 types of high-definition effects that you can use together to enhance your sounds even further. There's everything from a great mix of usable standard effects like chorus, phaser, delay, and compressor to some world-class shimmering reverbs that will elevate your sound to the next level.

Automatable 16-step sequencer

opsix SE features an incredible step sequencer that rivals groove boxes for flexibility and power. Press the PLAY button on any sound and experience the complexity of the sequences! Every Program has its unique sequence stored with it, or create your very own.

You can record up to six notes per step and edit each note's velocity, gate time, and playback timing. Create long phrases or make subtle shifts in timing to emulate strums or drum rolls, something that's not possible on a typical 16-step sequencer. The motion sequencer of the opsix SE also lets you record changes of up to six parameters, creating smooth motion changes in sound within a phrase or building rhythms that change dramatically with each step.

Notes: The premium version of Korg's excellent Wavestate gets the Platinum look in this limited-edition model. 61-note keyboard, metal chassis and limited-edition Platinum finish.

Supplier's Notes:
Wavestate SE Platinum

The ultimate Wavestate, the limited edition Wavestate SE Platinum features a stunning premium silver aluminium panel and stainless steel side panels.

Wavestate SE is the powerful evolution of Korg's legendary Wavestation, taking Wave Sequencing to a new level. Designed in California and built in Japan, Wavestate SE includes a premium 61-note keyboard with aftertouch, in an all-metal chassis.

Built for a new era of musicians, composers, and producers, Wavestate SE features hundreds of dynamic sounds, extensive hands-on control and 120 notes of stereo polyphony to inspire new levels of creativity.

A sonic evolution

Wavestate SE is the powerful evolution of Korg's legendary Wavestation, taking Wave Sequencing to a new level. Designed in California and built in Japan, Wavestate SE includes a premium 61-note keyboard with aftertouch, in an all-metal chassis. Built for a new era of musicians, composers, and producers, Wavestate SE features hundreds of dynamic sounds, extensive hands-on control and 120 notes (stereo) of polyphony to inspire new levels of creativity.

Premium, expressive touch

Featuring a 61-key natural-touch keyboard, Wavestate SE feels incredible to play. The inclusion of aftertouch gives fingertip control of the unique constantly changing sound. All factory presets have been meticulously programmed to take full advantage of this expressive control.

Beauty meets brawn

Wavestate SE's all-metal design is as hard-wearing as it is beautiful - with a matte-black aluminium panel complimented perfectly by glossblack stainless-steel sides. The premium finish continues to the controls themselves, where metal-plated knobs are perfectly weighted and add a luxurious touch.

Easily expressive. Exceptionally deep.

The Wavestate SE puts filters, envelopes, LFOs, effects and more at your fingertips with dedicated front-panel controls. Eight programmable Mod knobs are customised to bring out the most in every sound, for real-time performance and also when saving results as new patches. Pitch bend and modulation wheels, and the unique Vector Joystick, give you instant access to multiple dimensions of real-time expression. Digging deeper, almost all front-panel knobs, and most on-screen parameters, can be modulated. You can even modulate settings for individual Wave Sequence steps! Mod Processors let you transform modulation signals using quantization, smoothing, curvature, and more.

Gigabytes of samples

Totalling in the gigabytes, Wavestate SE's sample library is vast. At a thousand times larger than that of the original Wavestation, the amount of great-sounding raw material for Wave Sequences is astounding.

Three of the key sound designers from the original Wavestation, John Bowen, John "Skippy" Lehmkuhl (Plugin Guru), and Peter "Ski" Schwartz, joined Belgian artist Airwave and the renowned Korg voicing team to create the incredible Wavestate SE sound library.

Powerful effects

An arsenal of superb effects ensures Wavestate SE delivers production-ready sounds. Each performance has a master reverb and parametric EQ while each layer has three dedicated effects. Alongside compressors, EQs, choruses, flangers, phasers, and stereo delays, you'll find distinctive processors such as the Wave Shaper, Talking Modulator, Reverse Delay, Multiband Mod Delay, and Overb, plus modelled effects including Vox guitar amps and wah pedal, multi-head tape echo, and a collection of other classic guitar pedals.

Multiply by four

Take all that power, and quadruple it! You can layer up to four Programs together in a Performance-each with their own effects and arpeggiator. The Vector Envelope and Joystick mix the individual voices of the four layers, and can also modulate any other parameters. This sheer sonic power is further enhanced with 120 notes (stereo) of polyphony. Set Lists offer effortless organisation of your Performances, and deliver instant access at the gig or in rehearsal. And thanks to Smooth Sound Transitions, previously-played voices and effects continue to ring out naturally, even when a new sound has been selected.

Deep connectivity

Connect to recording or monitoring systems with balanced stereo outputs, and a stereo headphone output is provided for private playing or onstage cueing. Din-style MIDI jacks ensure connection to other MIDI-equipped instruments and audio gear. The Wavestate SE supports class-compliant USB MIDI connections to Windows and Mac computers, and the Wavestate SE Editor/Librarian and Sample Builder programs are available as free downloads from Korg.

Wave Sequencing 2.0

The original Wavestation gave each step of a wave sequence a duration, a sample and a pitch. This created ear-catching repetitive patterns, giving rise to entirely new approaches to sound design. But what if the sounds could evolve in organic and unexpected ways, instead of just repeating? Wave Sequencing 2.0 separates the timing, the sequence of samples, and the melody, so that each can be manipulated independently. It also adds new characteristics, including shapes, gate times, and step sequencer values. Each of these is a "Lane", and each Lane can have a different number of steps, start, end and loop points. Every time the sequence moves forward, the individual Lanes combine to create the output. For instance, a sample may be matched with a different duration, pitch, shape, gate length, and step sequence value every time that it plays. You can modulate each Lane's start, end, and loop points separately for every note, using velocity, LFOs, envelopes, Mod Knobs, or other controllers. Each note in a chord can be playing something different! Lanes can also randomise the step order every time they play, with real-time control over the range of included steps, and individual steps can be randomly skipped (with a modulatable probability from 0 to 100%). The result is organic, ever-changing sounds that respond to your control. The four onboard arpeggiators can interact with Wave Sequences for even more possibilities.

Specifications

Keyboard: 61 keys (Natural touch keyboard with velocity and release-velocity
sensitive, aftertouch)
Sound generation: Wave Sequencing 2.0
Polyphony: 120 stereo voices
Sounds: 261 Performances, 799 Programs, and 1,042 Wave Sequences. Storage for tens of thousands of user Performances
Performance: 4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required)
Layer: Program, Arpeggiator, Key and Velocity Zones
Program: Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay
Filters: 2-pole LPF, 2-pole HPF, 2-pole BPF, 2-pole Band Reject, 4-pole LPF, 4-pole HPF, 4-pole BPF, 4-pole Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix
Controllers: Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x
Program/Performance Mod Knobs

Inputs/outputs: Headphone (6.3 mm stereo phone jack) OUTPUT L/MONO and R (impedance balanced 6.3 mm TRS phone jacks)
DAMPER (6.3 mm phone jack)
MIDI IN and OUT connectors
USB B port

Power supply: AC adapter (DC12V, 2500mA)
Consumption: 5W
Dimensions: 1,014 x 344 x 108 mm
Weight: 8.6 kg

Included items

AC adapter, hard case, t-shirt, stickers

Notes: Top-of-the-range take on the powerful Wavestate synth concept, based on wave sequencing with 120-note stereo polyphony, natural-touch 61-note keybed and aftertouch.

Supplier's Notes:
Wavestate SE is the powerful evolution of Korg's legendary Wavestation, taking Wave Sequencing to a new level. Designed in California and built in Japan, Wavestate SE includes a premium 61-note keyboard with aftertouch, in an all-metal chassis.

Built for a new era of musicians, composers, and producers, Wavestate SE features hundreds of dynamic sounds, extensive hands-on control and 120 notes of stereo polyphony to inspire new levels of creativity.

A sonic evolution

Wavestate SE is the powerful evolution of Korg's legendary Wavestation, taking Wave Sequencing to a new level. Designed in California and built in Japan, Wavestate SE includes a premium 61-note keyboard with aftertouch, in an all-metal chassis. Built for a new era of musicians, composers, and producers, Wavestate SE features hundreds of dynamic sounds, extensive hands-on control and 120 notes (stereo) of polyphony to inspire new levels of creativity.

Premium, expressive touch

Featuring a 61-key natural-touch keyboard, Wavestate SE feels incredible to play. The inclusion of aftertouch gives fingertip control of the unique constantly changing sound. All factory presets have been meticulously programmed to take full advantage of this expressive control.

Beauty meets brawn

Wavestate SE's all-metal design is as hard-wearing as it is beautiful - with a matte-black aluminium panel complimented perfectly by glossblack stainless-steel sides. The premium finish continues to the controls themselves, where metal-plated knobs are perfectly weighted and add a luxurious touch.

Easily expressive. Exceptionally deep.

The Wavestate SE puts filters, envelopes, LFOs, effects and more at your fingertips with dedicated front-panel controls. Eight programmable Mod knobs are customised to bring out the most in every sound, for real-time performance and also when saving results as new patches. Pitch bend and modulation wheels, and the unique Vector Joystick, give you instant access to multiple dimensions of real-time expression. Digging deeper, almost all front-panel knobs, and most on-screen parameters, can be modulated. You can even modulate settings for individual Wave Sequence steps! Mod Processors let you transform modulation signals using quantization, smoothing, curvature, and more.

Gigabytes of samples

Totalling in the gigabytes, Wavestate SE's sample library is vast. At a thousand times larger than that of the original Wavestation, the amount of great-sounding raw material for Wave Sequences is astounding.

Three of the key sound designers from the original Wavestation, John Bowen, John "Skippy" Lehmkuhl (Plugin Guru), and Peter "Ski" Schwartz, joined Belgian artist Airwave and the renowned Korg voicing team to create the incredible Wavestate SE sound library.

Powerful effects

An arsenal of superb effects ensures Wavestate SE delivers production-ready sounds. Each performance has a master reverb and parametric EQ while each layer has three dedicated effects. Alongside compressors, EQs, choruses, flangers, phasers, and stereo delays, you'll find distinctive processors such as the Wave Shaper, Talking Modulator, Reverse Delay, Multiband Mod Delay, and Overb, plus modelled effects including Vox guitar amps and wah pedal, multi-head tape echo, and a collection of other classic guitar pedals.

Multiply by four

Take all that power, and quadruple it! You can layer up to four Programs together in a Performance-each with their own effects and arpeggiator. The Vector Envelope and Joystick mix the individual voices of the four layers, and can also modulate any other parameters. This sheer sonic power is further enhanced with 120 notes (stereo) of polyphony. Set Lists offer effortless organisation of your Performances, and deliver instant access at the gig or in rehearsal. And thanks to Smooth Sound Transitions, previously-played voices and effects continue to ring out naturally, even when a new sound has been selected.

Deep connectivity

Connect to recording or monitoring systems with balanced stereo outputs, and a stereo headphone output is provided for private playing or onstage cueing. Din-style MIDI jacks ensure connection to other MIDI-equipped instruments and audio gear. The Wavestate SE supports class-compliant USB MIDI connections to Windows and Mac computers, and the Wavestate SE Editor/Librarian and Sample Builder programs are available as free downloads from Korg.

Wave Sequencing 2.0

The original Wavestation gave each step of a wave sequence a duration, a sample and a pitch. This created ear-catching repetitive patterns, giving rise to entirely new approaches to sound design. But what if the sounds could evolve in organic and unexpected ways, instead of just repeating? Wave Sequencing 2.0 separates the timing, the sequence of samples, and the melody, so that each can be manipulated independently. It also adds new characteristics, including shapes, gate times, and step sequencer values. Each of these is a "Lane", and each Lane can have a different number of steps, start, end and loop points. Every time the sequence moves forward, the individual Lanes combine to create the output. For instance, a sample may be matched with a different duration, pitch, shape, gate length, and step sequence value every time that it plays. You can modulate each Lane's start, end, and loop points separately for every note, using velocity, LFOs, envelopes, Mod Knobs, or other controllers. Each note in a chord can be playing something different! Lanes can also randomise the step order every time they play, with real-time control over the range of included steps, and individual steps can be randomly skipped (with a modulatable probability from 0 to 100%). The result is organic, ever-changing sounds that respond to your control. The four onboard arpeggiators can interact with Wave Sequences for even more possibilities.

Ultimate protection

Whether travelling to a studio or setting out on a world tour, ensure your Wavestate SE arrives safely with the included hard case. The custom design even provides space for cables and pedals.

Specifications

Keyboard: 61 keys (Natural touch keyboard with velocity and release-velocity
sensitive, aftertouch)
Sound generation: Wave Sequencing 2.0
Polyphony: 120 stereo voices
Sounds: 261 Performances, 799 Programs, and 1,042 Wave Sequences. Storage for tens of thousands of user Performances
Performance: 4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required)
Layer: Program, Arpeggiator, Key and Velocity Zones
Program: Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay
Filters: 2-pole LPF, 2-pole HPF, 2-pole BPF, 2-pole Band Reject, 4-pole LPF, 4-pole HPF, 4-pole BPF, 4-pole Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix
Controllers: Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x
Program/Performance Mod Knobs

Inputs/outputs: Headphone (6.3 mm stereo phone jack) OUTPUT L/MONO and R (impedance balanced 6.3 mm TRS phone jacks)
DAMPER (6.3 mm phone jack)
MIDI IN and OUT connectors
USB B port

Power supply: AC adapter (DC12V, 2500mA)
Consumption: 5W
Dimensions: 1,014 x 344 x 108 mm
Weight: 8.6 kg

Included items

AC adapter, hard case

Notes: Like a greatest hits of recent Analogue Solutions synths, the Ample combines sound elements from the Fusebox with jack patch points, a patch pin matrix, plus sequencer and CV touch pads from the Generator, creating something new and unique.

Supplier's Notes:
Ample combines the best elements of several of Analogue Solutions' recent products.

The sound elements of Fusebox
Jack patch points of Concussor Eurorack
Patch pin matrix of Vostok
Echo from Dr Strangelove
Sequencer and CV touch pads of Generator

It shares all this yet still has its own sound!

Ample can be as complex or as simple as you want it to be

This synth has been given a large and diverse number of controls, that along side the patch sockets, will give even the best and experienced synthesist endless possibilities.

This synth presents the controls in a user friendly and familiar synth layout that, together with this manual and other resources, enable even the new guy to get great sounds.

Synth - Percussion - Audio Processor

Ample is a compact analogue synthesizer. Analogue - as in really analogue. Aside from the MIDI chip (which has to be digital), everything else is totally analogue using real transistors and op-amps. There are no CPU stabilised and quantised circuits, no DCOs, no digital LFOs and no digital EGs, as found on other so called analogue synths. The circuitry is based on designs dating back to the mid-1970s. So Ample has a genuine old sound.

Circuits included

3x Analogue Oscillators

There are three analogue VCOs - each providing a wealth of features and modulation choices. VCO3 can easily be utilised as a LFO.

2x Analogue Low Frequency Oscillator

LFO2(/Sync) has a triangle wave output. VCO3 can be used as an LFO and has Saw, Triangle and Square wave modulation signals.

Analogue Filter

Ample uses a four pole 24bB per octave low pass filter.

Analogue Amplifier

The VCA can be set to THRU so it is always 'open'. This allows Ample to be used as an effects processor.

2x Analogue Envelopes

There are two EGs - each having full control over ATTACK, DECAY, SUSTAIN, and RELEASE.

Modulation

Great thought has been placed into modulation route choices, allowing a wide range of sounds to be produced, including percussion and 'modular' sounds further extended by patching with the jack sockets and pin matrix.

MIDI

MIDI is intentionally kept simple - so you can concentrate on making new sounds and making music - not getting tied up with SYSEX programming.

You get the all important control over filter cut-off using MIDI Velocity.

Patchable External CV Control Sockets

Ample has many input and output audio and CV sockets - to allow the synth to be effectively re-wired to make new sounds.

The sockets also enable it to be easily used with Eurorack and other modular systems. They can be patched together.

Sequencer

Ample has a vintage style 16 step sequencer.

Touch Keys

There are 6 touch keys that each output a set voltage. Use this to play the pitch or as modulation signals. A great tool for inspiration!

Pin Matrix

A neat way to patch the synth.

Echo

Nice lo-fi echo / delay.

Notes: Process up to four channels of audio with a range of hands-on EQ, compression, saturation, filters and multiple independent delays. A creative approach to real-time effects.

Supplier's Notes:
Creative multi-channel audio processor

The GodFather is the first creative multichannel audio processor designed to inspire.

Its secret is a unique combination of manipulation parameters that will make you definitively abandon the conventional mixing concepts and immediately improve your creative skills.

Unlock limitless possibilities in sound design and music creation with this unique device.

Equipped with advanced features and expertly crafted for musicians and producers, this revolutionary product sets a new standard in audio processing and creativity.

This is a product that:

Processes 4 separate audio channels, allowing you to mix, equalize, compress, saturate, filter, and add emphasizing effects.

Stimulates your creativity both in the studio and on stage with multiple independent delays for each channel, capable of generating captivating grooves, surprising rhythmic junctions, and complex polyrhythms. Enhance your music production experience, offering unique sound manipulation possibilities.

Creates additional sound layers by adding filtered repeats within the main repeats for each of the 4 channels.

Offers an immersive experience by adjusting the offset between left and right channels, creating engaging bounces.

Features a large OLED display and numerous LEDs that provide instant, precise, and effective feedback on various functions, allowing you to focus on the creative aspect even in the most challenging lighting situations?


Here's what else this product can do:

Expands sound design possibilities almost infinitely with dedicated buttons to add, replace, and delete sounds within the repetitions for each channel.

Controls all parameters through 2 internal LFOs and 4 multi-assignable external CV inputs.

Correlates the dynamics of individual channels through a side-chain compressor, giving the right space and presence to the sounds of different channels.

Adds atmosphere, depth, and three-dimensionality to your mix with a large stereophonic reverb equipped with dedicated hi-pass filters.

Syncs with the rest of your setup via MIDI or CV Clock, receives external signals, or controls other devices.

Integrates into a 60Hp semi-modular rack, offering total manipulation of audio, MIDI, and CV.

Is crafted with the attention to detail typical of a Made in Italy product, using high-quality potentiometers, aluminium knobs, durable finishes, and precious wooden side panels.

After two years of hard work, design, emotions, technical challenges, and crucial choices, are excited to present this revolutionary device.

The Challenge

Featurings and Power all in small-scale spaces

The Electronic, Mechanical and Graphic Designs have been synergically worked out to be able to insert all the controls, the LEDs, the buttons necessary to create a device that would allow a naturalness in the use without compromises.

Tailor made knobs

For a performer, staying focused on the creative phase requires that the right number of controls are available, and that they are positioned in such a way as to allow natural use. This naturalness comes from a meticulous study and from dozens of configurations tested before reaching the perfect solution! To achieve the high level of usability prefixed, 36 knobs and 11 buttons needed, accurately positioned in the right places. To be able to get the right size, finish, feel, design and hide the potentiometer nuts, Enjoy have designed and made aluminium knobs manufactured exclusively for this product!

High quality potentiometers, aluminium knobs, durable finishes, involve high costs, but are essential to create a high-end device that will last over time.

LEDs

On the panel there are 154 LEDs to drive!

Thanks to the meticulous positioning, the instant feedback they offer is essential for those who must focus on the creative aspect and have everything under control at a simple glance. It wasn't easy at all! But, for us, it was essential to have them, and to have them like this! Enjoy had to design and test different solutions and prototypes before finding the ideal configuration, which would satisfy targets such as position, luminous homogeneity, no-light interference between neighbouring LEDs. Attention to detail remains the guideline.

Case: design, shape and compatibility

The unique shape of the case is produced in a single piece of aluminium thanks to the extrusion technique.

To get it, Enjoy worked closely with aluminium extrusion experts to create a matrix that granted us very tight tolerances, despite the multitude of curves, corners and grooves.

Aluminium and wood case

This strong shell is powder-coated in black, offering the highest resistance against scratches, dents and absolutely no chance for paint flaking. To make it, Enjoy are committed to ordering a huge volume of parts and investing significantly in advance.

Performance Oriented

Months were spent to carefully consider all the function and parameters. After that Enjoy invested a lot of time in designing the "one-knob-per-function" interface with a studio and stage performance perspective. All the visual indication that "The Godfather" provides are extremely useful and intuitive. Despite the great complexity behind The Godfather, it is surprisingly simple to use. You will see and feel the effort when playing with the GodFather.

60HP Semi-Modular footprint

Despite the unique design, The Godfather has the same footprint as a Mother32, DFAM, SubHarminicon, allowing it to perfectly fit into Tier Rack stands (4,3,2 sizes)

All functions

Complex mixing functions:

4 CHANNEL AUDIO IN
4 CHANNEL AUDIO OUT
COMPRESSOR
SIDE CHAIN
SHAPE EQ
PAN
STEREO WIDTH
GAIN STAGING
4 independent DELAY
4 INFINITE LOOPER FEEDBACK
4 STEREO OFFSET
4 Double Pulse Delay
13 HP/LP FILTERS
4 SATURATORS
CUSTOMIZABLE STEREO REVERB engine with DEDICATED HP FILTER
2 MULTI ASSIGNABLE LFO?s
4 independent TRIGGER BUTTONS
3 independent TRIGGERING MODES for creative routing possibilities

Connectivity:

4 AUDIO MONO IN
4 AUDIO MONO OUT (2 stereo pairs)
4 CVs input from -8V to 8V
2 CVs outputs from 0 to 5V
2 Gate input / Clock input 5V
1 Gate / Clock output 5V
MIDI IN/OUT (TRS and CLOCK to DIN adaptors included)

Design:

60hp EURORACK
LED INDICATOR on each channel
OLED DISPLAY
ALUMINIUM CASE
ITALIAN WOOD PANELS
BACKLIT SIDE PANELS

Technical Specifications

Power Supply: 100 to 240 VAC; 50/60 Hz, +12 VDC 1200 mA (included)
Dimensions: 319 x 107 x 133 mm
Patchbay: 19 x 1/8" / 3.5 mm jacks

Notes: The iconic Synclavier brand returns with this digital powerhouse, based around FM synthesis but also offering additive and subtractive methods. Super versatile, with up to 98-voice polyphony and MPE support.

Supplier's Notes:
The new buck in the Synclavier stable

Synclavier Regen is the newest in an auspicious line of Digital FM synthesizers. Designed for desktop use, it contains the power of the Synclavier II DSP engine, enhanced and optimised. Full colour screen, liquid-like touch controls, high fidelity audio output coupled with a sound design powerhouse makes this the synth you always dreamed of.

Regen supports additive synthesis for full control of 24 harmonics. Synclavier have now added subtractive synthesis to the Synclavier synthesis engine, especially for Regen, allowing creation of super saws, PCM square waves, and noise generation. Or you can use samples for your carrier waveform.

And these different waveform generators can be mixed. You have up to 12 partials to use in your sound design creation with crossfades assignable to inputs such as velocity, pressure, mod wheel, and of course, keyboard.

Regen is loaded with content to get you inspired fast. There are over 550 timbre presets across 10 newly commissioned timbre libraries. On top of that, there are over 2000 royalty-free samples built-in, including over 350 selected original samples from the NED era and 2 exclusive artist sample libraries.

When you're done exploring the factory content, you'll have fun with the sound design possibilities. You can layer up to 12 partials with different sound generators (additive, subtractive, samples) then apply dynamic effects per partial. It's truly an expressive instrument, both to program and to play. Polyphonic aftertouch and MPE is fully supported and there's a sophisticated modulators section where you can apply responsive curves to properties driven by pressure, velocity, mod wheel position, and so on.

Synclavier Regen is a desktop unit measuring 310mm wide by 260mm tall and 42mm deep.

Housed in aluminium, finished with a sand-textured black and Synclavier red surround. It has rubberized plinths.

User interface consists of many silicone buttons with multi-colour backlighting, a virtual knob capacitive-touch slider with epoxy-coating. A VK display is included as well as a main modal display that shows current parameters, user settings, timbre library, etc.

Over 40 years of synth design has led to this product. It's a sound-designer's dream in a timeless desktop package.

Sound-design Capabilities

Advanced DSP synth engine, as used on Synclavier II, has been extended for Regen.
12 separate tracks of multi-timbrality, assignable to MIDI tracks and keyboard ranges.
Up to 98 simultaneous voices. Voice count is dependent on system load and is likely to be much higher in typical scenarios.
12 partials per timbre. Each partial can be 1 of 3 oscillator synth modes: additive, subtractive, or samples.
Additive mode supports coefficient and phase control of 24 harmonics.
In samples mode, up to 128 samples can be placed on the partial's patchlist.
Subtractive can have a noise generator or up to 9 de-tunable continuous sawtooth waveforms.
Hybrid (resynthesized samples)
Timbre-level effects, including:
Stereo reverb algorithm with pre-delay and library of presets.
Highly-optimised multi-mode filter with sophisticated filter envelope.
Bit-crusher (for use with additive, sample, and hybrid modes).
Frequency modulation (FM) controllable per partial (all modes) with envelope.
Sophisticated modulation system that allows many Regen parameters to be controlled via MIDI, LFOs (24 per timbre), or driven by envelopes (24 per timbre).
Approx 300MB of sample space in memory = 100 mins @ 48Khz 24-bit mono shared across all active tracks and partials.

Hardware

Balanced stereo output through XLR connections at pro-level 4dBu. Designed for studio and home use. These are DC-coupled for maximum bass impact.
Single-ended TS stereo outputs, also DC-coupled.
Convenient headphones TRS jack for monitoring master audio with independent volume
control. For headphones in range 32O - 300O.
DAC circuit is designed for ultra-low noise floor. 11dB of headroom over nominal level. A
measured 130dB of dynamic range. 24-bit, 50kHz sample rate, as per Synclavier II.
Hybrid sound design engine: original Synlcavier II hardware is modelled in software.
High quality audio components throughout, including a precision temperature compensated crystal oscillator for jitter-free digital audio.
Two glorious full-colour sunken displays.
Responsive silicon back-lit parameter buttons.
The vertical value swiper is touch accurate to 128 levels of resolution for precise control
of every parameter.
12 selector buttons are touch-sensitive and can handle gestures to quickly select
multiple partials or tracks.
SD Card reader for unlimited user timbre and sample libraries.
4 USB accessory ports for MIDI keyboards, sequencers, and audio interfaces. Plus 1 USB Host port for connecting to a computer for MIDI input from a DAW.
Take it on the road. Rugged, full metal enclosure.

Notes: A revolutionary keyboard controller that puts the world's best sound library at your fingertips. Get direct, hands-on control of virtual instruments from NI and thousands more from developers like Arturia, Heavyocity, Korg, Output, Spitfire Audio, and u-he.

Browse and tweak everything from synths and drums to orchestral libraries and scoring tools - all seamlessly integrated with Kontrol's tactile controls and large, high-res screen. Then play with a new level of expression and freedom thanks to a best-in-class keybed, polyphonic aftertouch, Light Guide, and Play Assist features. And with a comprehensive package of included software, featuring the industry-leading sampling platform Kontakt 7, you'll be ready to go from day one.

Polyphonic aftertouch

Take expression one step further with the slightest pressure on individual keys. Bring new layers of nuance to your playing with cutoff, pitch, vibrato, and much more, without reaching for an extra encoder or dial. All three models come complete with polyphonic aftertouch on an industry-leading keybed developed in collaboration with Fatar.

Thousands of instruments made real

Kontrol brings the world's best virtual instruments to life in a genuinely immersive experience. Whatever you're playing, get in-depth control thanks to an unparalleled direct connection to Kontakt. Find sounds quickly with intuitive on-screen navigation, then adjust and play them with intelligent auto-mapping that understands the parameters.

Included software

Kontrol comes with a host of creative music production tools - all fully integrated with the hardware, to give you everything you need to start making music straight out of the box.

Included software
Kontakt 7
A free Kontakt instrument of your choice
Komplete 14 Select
Komplete Kontrol Software
Stradivari Cello

An internet connection and a graphics card that supports Direct 3D 11.1 (feature level 11_0) or higher are required to download and activate this product. Once installed and activated, the product can be used offline.

NKS 2 NKS (Native Kontrol Standard) is NI's technical standard for virtual instruments and effects. It's used across the industry and ensures that all compatible plugins are precisely mapped to controls. Kontrol marks the launch of NKS 2, which powers the unmatched software integration experience.

S88 MK3 Dimensions: 1353 × 347 × 120 mm
Weight: 6kg

Hardware specifications:
1 high-resolution colour screen with glass surface (1280 × 480)
CNC machined, bead blasted and anodized aluminum, 8 × encoder caps, 1 × 4D encoder cap, 2 × wheels (pitch and mod)
RGB illuminated pitch and mod wheels
New button-islands that form a continuous dustproof control surface and are grouped by function

System requirements

MIDI 2.0 compatible
Intel Core i5, Apple M1 (and equivalent or higher)
macOS 13 (Ventura) or higher (compatible with macOS 12 in MIDI 1.0 mode)
Windows 10 (latest service pack) or higher
8 GB RAM

Notes: PlayAUDIO1U allows every working musician access to an easy, seamless, simple & straightforward failover solution.

PlayAUDIO1U fuses iConnectivity's vast engineering knowledge of the live arena, passion for performance, and decades of experience into one product. PlayAUDIO1U ensures working musicians never suffer the embarrassment of a silent show, ever again.

PlayAUDIO1U's secret in part is integrating two computers connected directly to the interface, forming an incredible redundancy / failover protection system. Should your main computer fail, PlayAUDIO1U switches to the backup computer in a heartbeat; so fast that you and your audience won't even notice. Backing tracks keep playing in time and your MIDI gear stays connected. It does this all in a package that is completely designed from the ground up made-to-tour.

PlayAUDIO1U also ships with iConnectivity's new and improved Auracle 2.0. Auracle 2.0 is fast, flexible and intelligent, allowing performers to create a sophisticated live integration of all audio and MIDI connections, inputs and outputs; Auracle lets you do it in minutes, not hours.
"PlayAUDIO1U builds on everything we learned in creating and then supporting users of our PlayAUDIO12, an interface that quickly became the industry standard," says Al Joelson, VP of Sales and Marketing. "This interface is designed to be an even more ready-to-gig, comprehensive solution. It's a crazy powerhouse of audio and MIDI capability for live performance. "

Notes: 12-voice version of Waldorf's Iridium Core, a compact synth from the same range as the Quantum. Running on the Waldorf OS, the Iridium features a versatile selection of Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator synth engines.

Supplier's Notes:
The Core

Iridium Core provides the core synthesis engine of the Quantum / Iridium platform. It is the heart of Waldorf's most advanced hardware-based synthesis. The essence of forward-looking sound. The Core.

Sonic Explorer

Iridium Core contains 5 synthesis engines: Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator. Combined with a broad selection of digital filter and processing options Iridium Core lets you explore a huge sonic universe of electronic sound. Iridium Core's intuitive and easy graphical interface helps you to keep your flow of creativity.

Wave Traveller

The compact form factor makes Iridium Core an ideal companion to travel with you to all your sonic explorations and performances. It fits well into laptop size bags and in carry on-baggage it leaves enough space to all your other devices you need for your performances.

Driven by Inspiration

Iridium Core comes with a huge collection of more than 1700 factory presets and samples to drive your sonic Wanderlust. Get inspired what the broad and diverse array of sound designers have created to fuel your musical endeavours.

Team Player

Iridium Core integrates into various live performance and studio setups. Its connects with your modular synths, drum machines, sequencers and computers. The compact form factor fits well into your tabletop or space limited setups.

Family Member

Iridium Core shares the same software platform like Quantum, Iridium Desktop & Iridium Keyboard. All instruments are powered by the Waldorf synthesiser OS and will receive joint updates. Thus, the whole family participates from future enhancements and developments.

Specifications

Compatible with the Waldorf Quantum synth engine
Software: Waldorf Synthesis Platform OS

Oscillators
3 Oscillators each capable of 5 synthesis modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM, AM or Wavetable-position at audio rate)

Dual Stereo Filters per voice
True stereo path Dual Digital Filter with independent modes:
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Analyzer displayed in Filter view
Filter curve animation when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels

Digital Former
Filter models like State Variable, Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filters, Bit-Crusher, various Drives, Ring-Modulation

Modulators
6 Envelopes
6 LFO
Komplex Modulator (LFO/Envelope combination with user-definable shape and morphing)

Mod Matrix
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full

Effects
5 slots per layer
Various parallel and sequential routing options
Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo

Performance features
Advanced Arpeggiator
Step-sequencer with up to 64 steps for notes and parameters
2x4 button pads assignable to notes or chords
4 user-assignable potentiometers
6 user-configurable macro buttons
Favourites screen for quick patch recall
XY control on touchscreen
Wheels touchscreen for MIDI controls like mod wheel, pitch bend, aftertouch and velocity
MPE capable

Screen
Industrial-grade highly responsive touch screen with Brightness control
1024x600 pixels

Voices
12 voice polyphony
Duo-timbral
Mono, Legato and Unisono modes

Patches
Over 1700 factory patches
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum and other Iridium variants can be loaded and vice-versa
Category filter for patch list
2.6 GB sample flash memory preloaded with 2 GB factory samples

Connections
Stereo Audio Out: 2x TS jacks
Stereo Audio In: 2x TS jacks
Headphones TRS output with level control
DIN MIDI IN & Out, mini-TRS Type A (two adapters to DIN MIDI sockets included)
USB Type B (device) for MIDI connection to computer
USB Type A (host) for storage media and MIDI devices
MicroSD slot
2 high-resolution CV Inputs which can be used as modulation sources in the Mod-Matrix
Analogue clock In & Out with clock divider settings

Overall
Sturdy metal case
Dimensions: 346 mm wide by 200 mm depth by 64 mm height (including controls)
Weight: 2.2 kg
External Power Supply: Input 100-240 V / AC 50-60 Hz, Output 12 V DC / 3 A

What's In the Box?
Iridium Core Synthesizer
Two MIDI adapters: mini TRS to DIN sockets
Power Supply
Printed Quick Start Guide

Notes: A tiny studio microphone with a large-diaphragm capsule and groundbreaking features.

CM-1; the latest addition to Teenage Engineering's field system.

A versatile studio quality, ultra-portable microphone that comes with a built-in professional SUB-C audio interface with built-in preamp. Add a 3.5 mm jack and a 48v phantom powered mini XLR, and you have a truly one-of-a-kind battery-powered studio microphone.
A rarity in the field.

Large-diaphragm capsules are preferred for professional recording, but are rare within the world of portable equipment. CM-15 features an ESS sabre analogue-to-digital converter, preserving high-fidelity sound and capturing exceptional detail in any recording situation.

Clean, mean and lean mic-machine.

Clean, rich, transparent and natural sound. Period.

Use the gain switch on the back for padding those mean drums, or the other way around. Battery-powered with an integrated audio interface and preamp, cm-15 is always ready to use wherever you like to record. In other words: 'lean operation'.

CM-15 includes a standard 1/4" and 3/8" adapter, making it universally compatible with standard mic stands and tripods.

The included adapter allows for a 90- to 110- tilt, so you can mount the mic onto a boom arm or to better record overheads. Use tripod mini for portable setups (available separately).

Dynamic sound for any occasion.

Teenage Engineering's first microphone also means a unique sound quality to discover.

Rich, transparent and natural, cm-15 captures clear and clean sound for professional audio productions, always ready to set up wherever you like to record.

Pure craftsmanship.

CM-15 is an incredibly versatile microphone, both inside and outside the studio. The large-diaphragm condenser capsule essentially means you get a better signal, so there is less noise and better depth of sound.

Vocal recording

As a directional mic, CM-15 is perfect for the vocal booth, focused on picking up sounds in front of it.

Instrument recording

With the flattest frequency response at a 50 cm distance, CM-15 is perfect for capturing a variety of instruments, including your drum kit.

Interview/podcast

CM-15 is great for podcasts and interviews, where high audio quality and portability is necessary.

Field production

With a compact form factor and 10 hour rechargeable battery, it's a great tool for every 'trip'.

Camera mic

When filming with a video camera, connect CM-15 through the line out to record synced audio directly.

Multi-use connectivity.

CM-15 has multiple outputs that can be used simultaneously:

mini XLR, 3.5 mm jack and USB-C. It can also be powered three ways, through phantom power, battery or USB-C, instantly detecting the right power source for your connected device.

On the bottom side of CM-15, you will find three audio outputs: mini XLR, 3.5 mm jack and USB-C. The built in table stand can be used to rest and angle the microphone on a surface.

CM-15 includes a mini XLR to XLR cable for connecting to your recording console. The 3.5 mm jack can be used with headphones, while USB-C is used for digital audio interface connection, firmware updates and charging.

Technical specifications

CM-15 highlights

1-inch large-diaphragm capsule
10 hour rechargeable battery
48 V phantom power compatible pseudo-balanced mini xlr output
dual mono 3.5 mm jack line output
USB-C class compliant device with high performance
ESS sabre ES9822Q PRO analogue to digital converter

Dimensions and weight

90 mm x 65.5 mm x 19 mm
132 g / 54.6 oz

Audio characteristics

Self noise: 14 dBA

Max SPL for 0.5% THD: 138 dB
USB SNR dBA FS: 120 dB
Polar pattern: supercardioid
Polarity: positive

The field system.

CM-15 is part of Teenage Engineering's ultra-portable sound recording and performance system. All battery-powered, rechargeable via USB-C and with full interconnectivity (MIDI and high resolution audio). Compatible with iOS, macOS, and windows it's the most powerful, highest quality, portable system in the world 'as we know it'.

Notes: Serious synth options here, with a 24-voice polyphonic, four-part multi-timbral design based on the iconic PPG wavetable approach, updated and blended with analogue filters. An absolute powerhouse of an instrument.

Supplier's Notes:
The 3rd Wave desktop module a powerhouse wavetable synth with 24-voice polyphony and 4-part multi-timbral capability that's like having four independent synthesizers at your fingerprints.

It has all of the power, all of the polyphony, all of the multipart capability, all of the I/O, and all of the awesome sound quality of the full keyboard version.

Each of its 3 oscillators per voice can be any of these 3 choices:
A classic PPG 8-bit wavetable with all the original processing
A high-resolution anti-aliased 96KHz wavetable
Analogue modelled waveforms with spline interpolation

Create up to 64 custom wavetables of your own using the built-in Wavemaker. With the sample-to-wavetable capability, you can connect an audio source to the audio input and generate a wavetable at the touch of a button.

Classic legacy, modern sound

While the 3rd Wave has roots in the classic digital wavetable synths of the past, it takes that concept into the 21st century with a lush, expansive sound that's a product of its expanded wavetables and warm, organic-sounding analogue filters, 4 independent parts, and 24 voices.

It boasts not only a punchy, Dave Rossum-designed 2140 analogue low-pass filter with variable saturation, but a second, SEM-style state-variable filter (low-pass, high-pass, notch, and band-pass) for additional tone-sculpting. Run both filters in series for harmonically complex textures.

4-part multi-timbral

With 24-voices, the 3rd Wave has enough power for the most note-intensive performances.

And that polyphony really comes into play with its ability to layer up to 4 independent parts or split zones -- each with a completely different sound, sequence, and dual effects.

Each part has independent panning, volume, and a dedicated stereo physical output. Use the multiple outputs and part placement to create spatial audio mixes.

Modulation matrix

The secret weapon of any synth is its mod matrix, and the 3rd Wave doesn't disappoint.

With 16 assignable slots, 12 additional fixed-source slots, 27 sources, and 114 destinations, it has the flexibility of a modular.

And all of this power is per multipart. That means up to 4 independent layers of sound, each with its own mod matrix.

Sequence notes, songs and parameters

The 3rd Wave's sequencer is an inspiring tool for both composers and sound designers because it is pattern-based and can sequence notes, songs, and parameter changes.

For composing and performing, enter notes and chords in real time with or without quantization for maximum groove and arrange up to 24 patterns of up to 32 measures in length into songs just as easily.

Sound engine

3 High-resolution Digital Oscillators Per Voice

64 total user wavetable positions with 48 wavetables that contain 64 waveforms per table (32 legacy PPG waves with room for another 16 of this type)
32 original 8-bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables
7 high-resolution modelled analogue waveforms (sine, saw, triangle, supersaw, pulse, white noise, pink noise)
VCO sync
Free-running oscillators
Linear FM
6-stage wave envelope per oscillator with variable time and position that can be looped
Optional wave flow section that allows for no wavetable as well as no waveform interpolation
Upper wavetable mode as with the original PPG 2 series
Unison, poly unison, and chord unison mode with variable voice count

Analog Low-pass Filter (per voice)

Dave Rossum designed, classic, 2140 low-pass resonant filter
24 dB per octave slope
variable saturation amount
optional resonance compensation

State-Variable Filter (per voice)
12 dB per octave slope
Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode

4 ADSR+ Delay Envelopes
Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response
Freely assignable to multiple modulation destinations

4 Low-Frequency Oscillators
Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)
Variable delay
Note reset
Syncable to master clock BPM

2 Digital Effects
BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker, ring mod, room reverb, hall reverb, super plate reverb - most modelled on famous hardware devices
Syncable to master clock BPM
Parameters modulatable via mod matrix

Wave maker tool

Built-In Custom Wavetable Maker

"Sample-to-wave" functionality. Connect an audio source to the 3rd Wave's Audio In port, press "Make Waves" and the synth samples the audio to create a custom wavetable
Samples to convert can also be brought in as a 96 kHz wav file through USB
Store up to 32 custom wavetables
64 waveforms per wavetable
Accepts pitched or un-pitched material as input
96 kHz sampling rate
16-bit resolution
1024 cycles per waveform, converted automatically to cover entire keyboard range
Flexible wave-sampling length

Sequencer

Performs both Note and Parameter Sequencing
1 song per multi-part
24 sequences per song
32 measures per sequence
Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off)
Swing

Arepggiator

1 Arp per Multi-part
Up, down, up/down, and assign modes
Variable range (1, 2, or 3 octaves)

Mod matrix

16-slot Modulation Matrix Per Multi-Part

16 slot modulation matrix with 27 mod sources and 114 mod destinations
12 additional fixed-source mod paths
Modulation assignment buttons enable quick and easy modulation routing
Mod Matrix runs at audio rates
Sequencer can record and play mod parameter changes in real time

Controls

77 knobs and 39 buttons enable deep, comprehensive editing with minimal menu diving
Pitch and Mod Wheels
Full-sized, five-octave, semi-weighted, premium Fatar keyboard with velocity and aftertouch

Programs

500 factory programs. User rewritable

In/out

4 Stereo outputs (2x 1/4" phone jack per part)
Headphone out (stereo 1/4" phone jack)
MIDI In, MIDI Out, and MIDI Thru
USB port for bidirectional MIDI communication
Audio Input for creating user wavetables from external audio source (1/4" phone jack)
Sustain/footswitch input
Volume pedal input
Expression pedal input

Power

1 universal IEC AC power inlet for internal power supply

Notes: Make Noise's 208hp 7U 4 Zone CV Bus Case arrives ready to use. Just add modules, patch cables and inspiration. The powder coated metal construction offers excellent mechanical durability. The lid is removable and can be closed with the system fully patched. The sleek matte black finish was selected to match Make Noise's line of Black & Gold modules, and it looks great with just about any module installed. This finish will show the story of your modular synth's travels over the years.

The Make Noise 4 Zone Power Bus Board is a new approach to accommodating the ever-growing universe of Eurorack modules. The multi-zone solution is like having 4 independent bus boards in a convenient single bus board package. Each Zone features isolated +12 VDC and -12VDC supplies and a dedicated ground return path. The +5VDC supply is shared amongst all 4 zones.

The multiple section of the CV Bus was originally designed in 2013 for Alessandro Cortini's personal Make Noise system. It provides visual indication of level, rate and polarity for up to 4 control signals that will be shared throughout a patch. These 4 control signals are colour coded and distributed across the centre of the system allowing for quick, clean and intuitive patching. The distribution method is unlike the typical multiple since the control signals will appear beneath their possible destinations allowing for the use of shorter patch cables. The colour coding and visual indication makes navigating complex patches easier and more intuitive. Typically, the CV Bus would be used to share the most important control signals in a patch such as your Master Clock.

This new version of the CV Bus also includes useful modular utilities:

The Voltage Math is found at the left end of the CV Bus. Like the similar circuit on the 0-Coast, it is a small collection of universally useful modular utilities. The two inputs are summed at the output, one at unity and one adjusted by the input attenuverter. The attenuverted input is also normalled to a DC offset, for purposes of level shifting, voltage mirroring etc. The output strength and polarity is indicated by the Green and Red output LEDs.

A high quality Stereo Line Driver converts powerful modular synthesizer signal levels to the commonly used Line Level. There are mini-jack inputs for Left or Mono, and Right for Stereo sound, a single master volume control, as well as a stereo line output pair, and finally a TRS line/headphone out on a single jack. This output is capable of driving a long cable out to a PA System or a set of Headphones. It is AC coupled with a built-in limiting circuit (with visual indication) that prevents damage to ears and PA system when the patching gets experimental.

Includes

Two 104 hp 3U rows for Eurorack modules, One 104hp 1U row fitted w/ CV Bus
Hybrid switched/linear power solution for low noise and excellent load regulation
Multi-Zone, allowing isolation of noise-prone modules from noise-sensitive ones
Black powder coated metal w/ embossed logo on lid
Sealed to keep dust out during travel or storage
Lid offers space to close w/ your system patched
Recessed side mounted on/off switch and power inlet for safe travel
Locking power connector helps prevent on-stage power loss accidents
Solid carrying handle and rubber feet so the case travels w/ ease
Meets carry-on luggage size requirements for most airlines
Universal AC power adapter works world wide (Need IEC Cable for non-US outlets)
Blued Steel Stand sold separately

Specifications

Size: 7U
Total HP: 208 @ 3U, 104 @ 1U
Outer Dimensions:
22.25" x 14" x 7.25" w/ lid
Max Module Depth: 2.5"
Weight: 12.75 lbs. (w/ powered bus board, CV Bus installed)
Power: +12VDC @ 4A, -12VDC @ 2.4A and +5VDC @ 1A
Connectors: 32
Includes: CV Bus, Powered Bus Board, 120 Sliding M2.5 nuts w/ Black screws, AC Adapter

Notes: Arturia's flagship audio interface is designed for maximum versatility as well as top quality sound. With 16 analogue inputs, 12 analogue outputs and an array of digital I/O including ADAT, MIDI and clock, your creative process won't be interrupted by reconfiguring your hardware.

Supplier's Notes:
AudioFuse 16Rig

Studio mastermind interface

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.

Make your sound count

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be moulded to suit your audio setup, your workflow, and your sound.

A standalone mixer

For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing

Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick 'connect anything and everything' configuration.

Quantity, meet quality

Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it's red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow

Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig's settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It's time your music had an upgrade

x16 ADAT I/O
x8 Analog Line DC coupled Outputs
x16 Analog Line Inputs
x1 MIDI In & 2x MIDI Out/Thru
Wordclock I/O
24-bit AD/DA 192kHz
Creative FX Bundle Included

Smart design

Sometimes it's the little things that matter most. You need your gear to complement and enhance the way you work, and that's the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX included

Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from Arturia's award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

AudioFuse Range

The new studio reference

The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision, and bring all of your gear together to create the music you always wanted to.

Analogue signal path

The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Powerful monitoring

Multiple outputs, integrated A/B switching, monitor mix options, and even headphone outputs with both 3.5mm and 6.35mm connectors. The AudioFuse makes monitoring a joy.

Huge versatility

Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

Main Features

16 x TRS analogue inputs
Includes 2 x high-quality digitally-controlled preamps
Inputs 3 & 4 also available as 3.5mm stereo input

12 x analogue outputs
Includes 8 x DC-coupled TRS line outputs
Stereo monitor outputs
6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out

Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

Wordclock in & out

1 x MIDI in, 2 x MIDI out/thru
5-pin DIN connectors
Route MIDI standalone

Low-latency USB-C connection

Class-compliant MIDI
3 x USB hub connections

Two internal standalone mixers

No computer connection needed
Cue mixer for sub-mixing and added flexibility
Main mixer controllable by MIDI

Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite

Analog Lab Intro
Comp DIODE-609* NEW
Pre 1973
Pre V76
Pre TridA
Filter MINI
Chorus JUN-6
Comp FET-76
Delay TAPE-201
Rev PLATE-140
Phaser BI-TRON

What's in the box

Box content
AudioFuse 16Rig unit
Power supply
2x USB cable

Instrument dimensions
size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)

Platform requirements

Windows
Win 10+ PC: 4 GB RAM; Intel i5 CPU or faster
1GB free hard disk space
OpenGL 2.0 compatible GPU

Apple
10.13+: 4 GB RAM; Intel i5 CPU or Apple Silicon CPU
1GB free hard disk space
OpenGL 2.0 compatible GPU

Notes: ***B-STOCK: Missing dust cover and original internal packaging but otherwise in perfect working condition***


The streamlined hi-fi option of the new Technics SL series, based on similar technology to the SL-1200 GR model but with no pitch control, just rock solid Technics sound at a good price.

Supplier notes:
The technologies acquired through the development of the SL-1200 Series and the high-end SL-1000R model were lavishly inserted into the motor drive unit, a key part of the turntable. The motor exclusively tunes the single-rotor, coreless direct drive motor adopted by the SL-1200GR in order to read the high rotation accuracy and high-precision signals of the record. Optimal motor control is conducted for the inertial mass of the two-layer structure platter on which the vinyl record is placed with deadening rubber on the entire back surface to eliminate unwanted resonance in the aluminium die-cast platter to eliminate the rotation irregularity called cogging. The aluminium die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fibre to achieve a two-layer construction. The insulator is comprised of a spring and rubber to provide optimal vibration-damping characteristics. The tonearm is a static-balance universal S-shape tonearm, another Technics tradition. By adopting a high-precision bearing using the same gimbal suspension construction and machined housing as the SL-1200 Series, high initial sensitivity is achieved. In addition, reliability has been improved by incorporating a removable power cable and gold-plated terminals, which have less sound quality degradation, for the PHONO and LINE terminals.

Complete Turntable with a Built-in Phono Equalizer and Cartridge In order to enjoy playing analogue records more comfortably, the SL-1500C features a built-in phono equalizer and bundled cartridge. There is no need to separately prepare either one, making it easy to link with a wide range of audio equipment. The shield structure of the built-in phono equalizer suppresses the effects of external noise and noise from the power supply. It is also equipped with a switch to turn the LINE output off when it is not being used. The turntable has been designed to thoroughly shut-out adverse effects to the PHONO output. The dedicated power supply for the PHONO output terminal is isolated from the power supply for the LINE output terminal, and has been designed to prioritize sound quality by minimising the wiring of the PHONO signal. The isolated terminals also prevent wiring mistakes. An Ortofon 2M RED cartridge, which is highly acclaimed as an MM cartridge, has been selected for the bundled cartridge. Combining this high-quality cartridge with the performance of the SL-1500C will maximise the sound quality of vinyl records.

When the tonearm reaches the end of the record, the Auto Lifter function automatically raises the cartridge. This prevents unnecessary wear on your valuable vinyl records and stylus. By embedding the Auto Lifter function in the base portion of the tonearm, it eliminates impacts to the tonearm. Due to a simple design that doesn't use motor power, there is no electrical or vibrational impact and it will not prevent the movement of the tonearm. In response to requests from many users regarding the Auto Lifter function, a design that prioritises sound quality was adopted. The functions required to playback records were kept to a bare minimum, achieving simple and easy-to-use operability.

The SL-1500C sports a simple design without unnecessary frills, while retaining the superb operating feel that is a Technics tradition. The attractive appearance lets you enjoy playing records to your heart's content.
