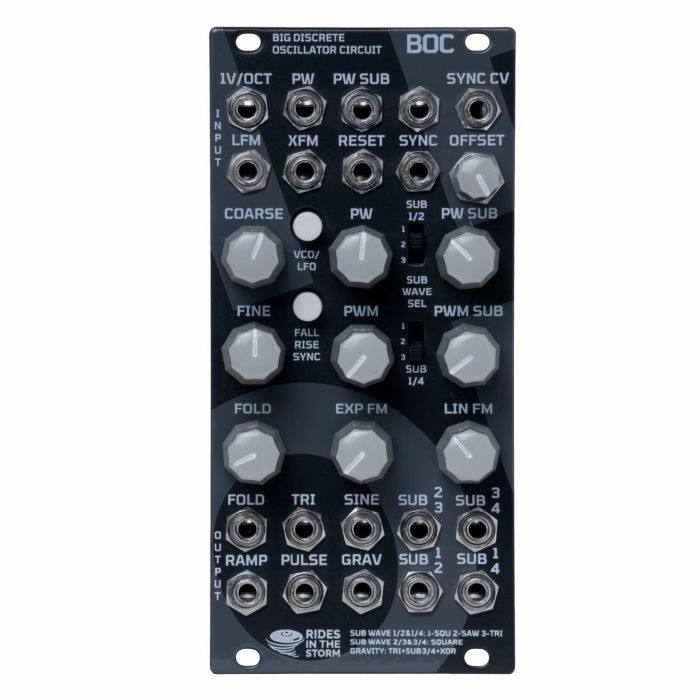

BOC

Discrete VCO / LFO with stabile tune, tracking and wide spectral range

Full sound with defined low end and superfast edges for best brilliance

SINE, TRIANGLE, RAMP, PULSE and TRIANGLE-WAVEFOLD OUTS

FOUR SUBOSCILLATOR OUTS: Fifth below: 2 / 3 (SQU) Fourth below: 3 / 4 (SQU) One Octave below: 1 / 2 (PW, SAW, TRI) Two Octave below: 1 / 4 (PW,SAW,TRI) GRAVITY OUT (TRI and SUB 3 / 4 with XOR)

PW, PWM for core VCO and SUB 1 / 2 & SUB 1 / 4 RESET (SYNC)

Voltage Controlled SOFTSYNC (FALL & RISE edge SYNC)

WAVEFOLDER CV IN

Linear FM and exponential FM with ATTENUATORS

Jumper at the back to switch from BUS CV to PATCH CV and BUS RESET to PATCH RESET

Screwed metal shaft potentiometer

Rackspace: 12HP
Depth: 25mm
Power consumption: + / -100mA
