Home  DJ Equipment  Synthesisers  Koma Elektronik  Koma Elektronik Chromaplane Analogue & Polyphonic Electromagnetic Synthesiser

Koma Elektronik Chromaplane Analogue & Polyphonic Electromagnetic Synthesiser FORTHCOMING

Click 'email me when available'.
KOMA ELEKTRONIK - Koma Elektronik Chromaplane Analogue & Polyphonic Electromagnetic Synthesiser
synthesisers
Delivery
Despatched as soon as released
Features
Specs
Returns & refunds
Finance
  • 10x Analog Square Wave Oscillator
  • Oscillator Pitch Control: 30-turn adjustment screws
  • Voltage Controlled Delay: Delay Time: 40 - 400ms
  • Envelope Follower
  • Pickup Preamp
  • External Field Input
  • Bent Anodized Aluminum & Beech Wood construction
SynthesisAnalogue
Maximum Polyphony (voices)10
Oscillators Per Voice10
FiltersVoltage Controlled Filter - Type: Four-Pole Low Pass Filter, Cutoff Range - 20Hz - 20,000Hz, Resonance Range: 0 - 100% (self-oscillating), CV Input Range: 0 - 9V, CV Normalization - Preamp Output, Audio Output Range - 6V peak to peak, Control - 3x Thumbwheel Knobs (CV Amount, Cutoff, and Resonance)
EffectsVoltage Controlled Delay: Delay Time - 40 - 400ms, CV Input Range - 0 - 9V, Feedback Range - 0 - 133%, Audio Output Range - 6V peak to peak, Control -3x Thumbwheel Knobs (Time, Feedback, and Dry/wet)
KeyboardNo
Weight (g)1050
PowerMains Adapter

If you decide a product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.

Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth

To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

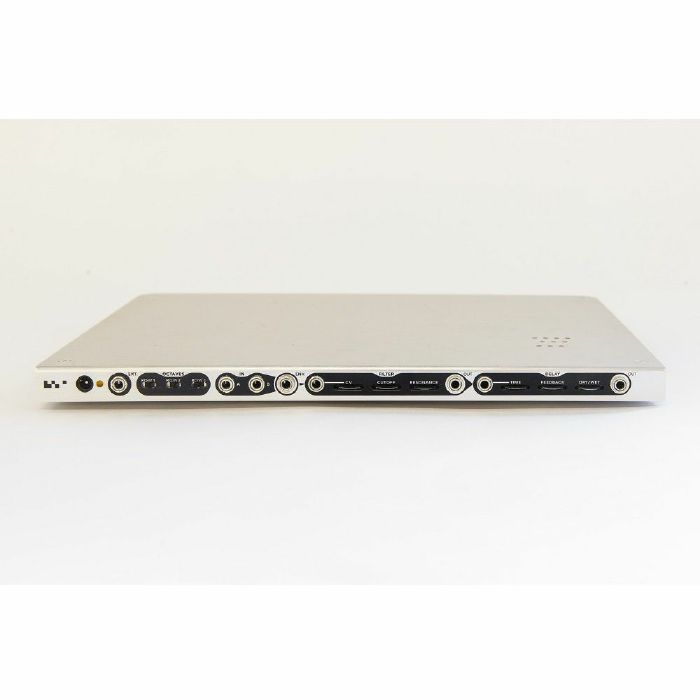

Koma Elektronik Chromaplane Analogue & Polyphonic Electromagnetic Synthesiser
The Chromaplane is an instrument created in collaboration between KOMA Elektronik & Passepartout Duo.

The Chromaplane is played using two electromagnetic pickup coils, that are moved over its surface to listen to a cloud of electromagnetic fields produced by the instrument.These ten fields are represented by small indicators on the instrument's surface.

The Chromaplane is fully polyphonic, meaning that all ten of the instrument's analogue square wave oscillators are always sounding - this makes the instrument ideal for both sculpting complex drones, and playing agile melodies. Each field can be tuned using its corresponding adjustment screw. The oscillators are additionally organized into three rows, each with a switch that drops that row's pitch one octave.

The timbre of the Chromaplane can be further shaped using its internal VCF, a 4-pole low pass filter that darkens the instrument's sound and is also modulated by the internal audio signal, allowing for rich harmonic sounds and timbres reminiscent of frequency modulation. A lo-fi delay / echo effect with CV controlled time adds a sense of ambiance and rhythmicity to the dry signal's output.

The Chromaplane also features an external audio input, allowing the player to route other sounds to one electromagnetic field on the instrument's surface. The instrument's envelope output can also be used to modulate parameters on the instrument, or on other hardware synthesizers.

The Chromaplane includes: The Chromaplane itself, 2 pickup coils, 1 tuning screwdriver, 1 power adapter that works worldwide, 1 manual
Read moreRead less
Specifications
SynthesisAnalogue
Maximum Polyphony (voices)10
Oscillators Per Voice10
FiltersVoltage Controlled Filter - Type: Four-Pole Low Pass Filter, Cutoff Range - 20Hz - 20,000Hz, Resonance Range: 0 - 100% (self-oscillating), CV Input Range: 0 - 9V, CV Normalization - Preamp Output, Audio Output Range - 6V peak to peak, Control - 3x Thumbwheel Knobs (CV Amount, Cutoff, and Resonance)
EffectsVoltage Controlled Delay: Delay Time - 40 - 400ms, CV Input Range - 0 - 9V, Feedback Range - 0 - 133%, Audio Output Range - 6V peak to peak, Control -3x Thumbwheel Knobs (Time, Feedback, and Dry/wet)
KeyboardNo
Weight (g)1050
PowerMains Adapter
