- 12 Clock OutputS divided into two groups (A/B)
- 10 Operational Modes covering standard, mathematical, musical, probabilistic, and chaotic rhythms.
- Weighted Tap Tempo & External Sync
- State Persistence: Saves Tempo, Active Mode, and Swap State for each mode, retaining them across power cycles.
- Calculation Swap: Inverts functions between groups via the MOD button or external gate.
- Visual Feedback: the Status LED indicates the active mode; the Auxiliary LED signals state changes (tap, mode select, swap).
- Fixed Base Clock Outputs: Outputs 1A and 1B always provide the unmodified main clock.
- Hardware Platform: Based on CPU STM32F411.
- Open Source: Firmware developed with PlatformIO (C/C++), customizable.
- Programming: Via USB-C DFU.
- "Whatever" power connector - don’t mind the polarity, it’s protected eighter way.
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

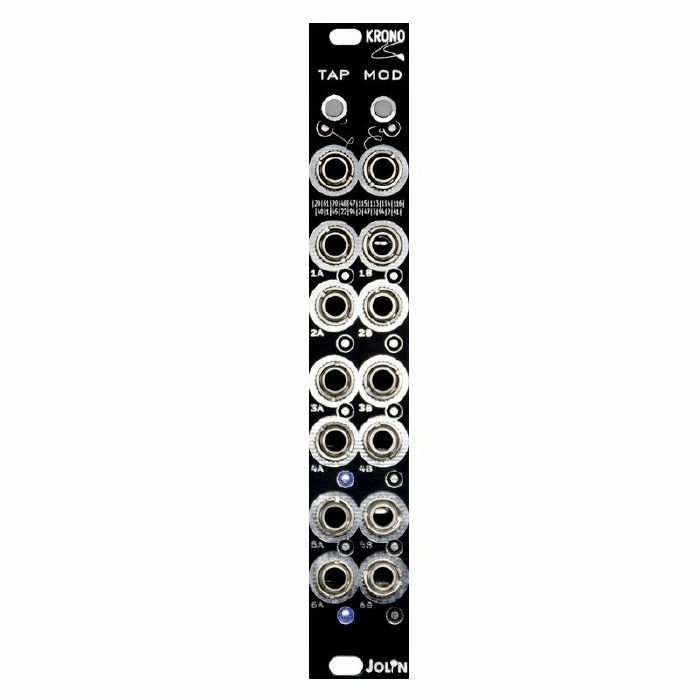

Jolin Krono Multi-Modal Programmable Clock Generator Module
KRONO offers multiple clock modes (including Euclidean, Logic, Probabilistic, and more), tap-tempo or external clocking, real-time A / B output swapping, and full state memory.
All 12 outputs are customizable, and everything runs on an STM32F411 - with open code available via GitHub for advanced users and developers.
Modes - firmware v1.0
Ratios: Direct multiplications and divisions of the base tempo for proportional rhythmic ratios.
Euclidean: Generates Euclidean rhythms by distributing K pulses over N steps.
Musical: Applies common musical ratios (e.g., triplets, dotted notes, predefined swing divisions).
Probabilistic: Outputs trigger based on defined probability thresholds for each output.
Sequential: Generates clocks based on mathematical sequences (Fibonacci, prime numbers).
Swing: Applies individual swing / shuffle levels per output, delaying even beats.
Polyrhythm: Assigns independent X:Y ratios to outputs; output 6 can generate a logical sum.
Logic: Applies logic operations (AND, OR, XOR, NAND, XNOR) between internal clocks or external inputs (if configured).
Phasing: Generates pulses with configurable time offsets (phase shifts) relative to the main clock.
Chaos: Creates unpredictable rhythmic patterns based on chaotic algorithms
All 12 outputs are customizable, and everything runs on an STM32F411 - with open code available via GitHub for advanced users and developers.
Modes - firmware v1.0
Ratios: Direct multiplications and divisions of the base tempo for proportional rhythmic ratios.
Euclidean: Generates Euclidean rhythms by distributing K pulses over N steps.
Musical: Applies common musical ratios (e.g., triplets, dotted notes, predefined swing divisions).
Probabilistic: Outputs trigger based on defined probability thresholds for each output.
Sequential: Generates clocks based on mathematical sequences (Fibonacci, prime numbers).
Swing: Applies individual swing / shuffle levels per output, delaying even beats.
Polyrhythm: Assigns independent X:Y ratios to outputs; output 6 can generate a logical sum.
Logic: Applies logic operations (AND, OR, XOR, NAND, XNOR) between internal clocks or external inputs (if configured).
Phasing: Generates pulses with configurable time offsets (phase shifts) relative to the main clock.
Chaos: Creates unpredictable rhythmic patterns based on chaotic algorithms
