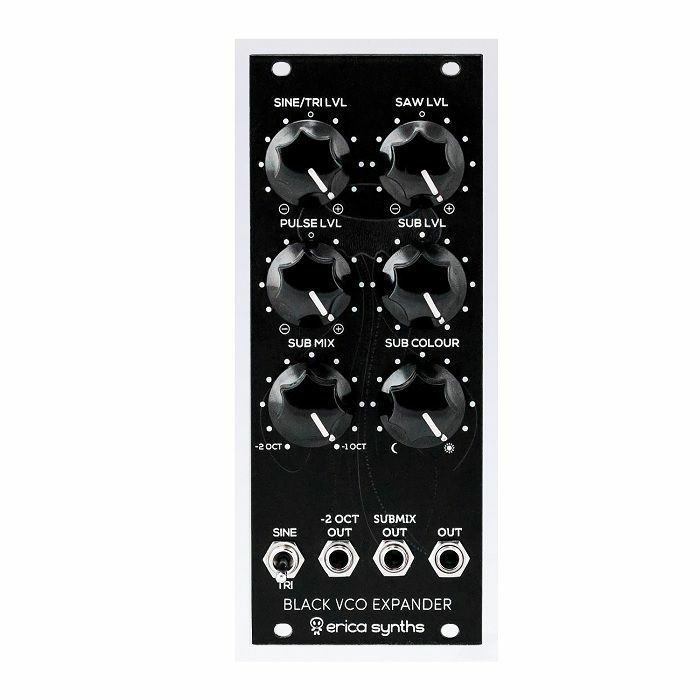

Erica Synths Black VCO Expander essentially is an advanced waveform mixer plus two octaves down suboscillator, it allows you to explore wave design in brand new areas.

Features
Waveform mixer / inverter
Sine / Triangle / Tits waveform switch
Transistor-based -2 octave suboscillator
-1 and -2 octave suboscillator crossfade
Suboscillator lowpass filter
Diode limiter on output signal amplitude
Three simultaneous outputs

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

NB! This expander module can be connected only to Black VCO and Black VCO2. It will not work as a standalone eurorack module.

Dimensions
10 HP
25 mm deep

Current Draw
5 mA +12V
5 mA -12V
