Notes: ***B-STOCK: Box opened, product in perfect working order***


This AC Power Adapter comes with a locking DC extension cable. The connector of the DC extension cable screws down to the DC jack, preventing noise interference when the cable is bumped.

There are two voltage options:
12V: used with original 5A Power Supply and newer Five Amp Power.
19V: used with Deluxe Power, Super Power, Case Power Mini and Case Power.
Note: If you are replacing a power brick on a Synthrotek power supply, use the same voltage as was originally sent (unless the brick is 15V, then change to it to 19V).

AC input: 100-240V, 1.6A, 50-60Hz

DC output:
12V at 5A
19V at 4.74A

Center positive 2.1mm pin

Comes with a 3-prong power cable, which will work in the US and some other countries. If you are in Europe, etc. you can get a separate volex connector that will work in your country. We don't carry international connecting cables, but you can find them easily on the web.

Notes: The 1U Stereo Mixer is intended for pannable stereo output, but it is also suitable for both DC (Gates, Triggers and Control Voltage) & AC (audio) signals.

Specifications:
Current draw: +12: 13mA, -12: 9.2mA
Depth: 32mm
Width: 24HP
Please note: Synthrotek's 1U products do not fit in Vermona or Intellijel cases.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: This simple passive mixer is suitable for mixing both audio and control voltage sources. Three channel inputs mix down to one output.

It is not suitable for additive voltage applications. All the jacks are switched to ground to minimize external interference when not patched. This can lead to unwanted attenuation of the output signal unless you plug a dummy cable into the unused channel(s) or, even easier, you can turn the channel's pot completely CCW.

Specifications:
Width: 2HP
Power consumption: none
Module screws included

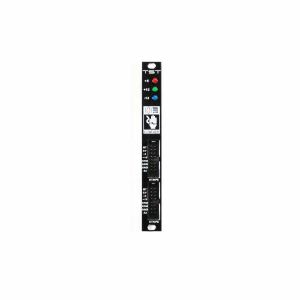

Notes: Test your modules safely without reaching into your case! The TST has two keyed 16-pin headers on the front of the module so you can plug and unplug quickly and easily. Two 16-pin plugs are included to shield the power pins when the module is not in use. It also has LEDs to indicate the power status on each rail.

Please note: Use this module at your own risk. You will be exposing electricity to the front of your modular system. Be careful not to dangle patch-cables, etc. on the exposed pins. This may damage modules and your power supply. Be smart and safe!

Features and Specifications:
Two 16-pin connectors and plugs on the front side of the module
LED indicator for each rail
Module width: 3HP
Module depth: 5mm
Current draw:
+12V: 1mA
-12V: 1mA
+5V: 1mA
Includes keyed power cable, 2.5mm and 3mm screws
